Notes:
Current Rating:1.5 AMP
Contact Resistance: 20 Milliohm max.
Insulation Resistance: 1000 Megaohm min.
Withstand Voltage: 500VAC/Minute
Operating Temperature: -40°C to +105°C
Contact Material: Brass
Contact plating: Sn or Au Over Ni
Insulator Material: PA6T
Recommended P.C.B Layout(Top Side)
2.0XNo.of Positions-2.0±0.10
2.00
0.90
4.20
9.90
2.00XNo.of Contacts/2-2.0±0.20
A
B
Components according to RoHS directive 2002/95/EC
B
4.30
5.10
Housing printed with Pancon Logo
Packing Note:
Standard (no designation) = Tray or Cardboard
J =Tray with Cap
R = Reel
T = Tube
U = Reel with Cap
V = Tube with Cap
C
4.00
Short
Latch
3.7
±0.25
8.95
X
Pb
Compliant
RoHS
2.00±0.10
C
L
SQ 0.50
Long
Latch
C
Weitergabe sowie Vervielfaeltigung dieser Unterlage, Verwertung und Mitteilung
ihres Inhalts nicht gestattet, soweit nicht ausdruecklich zugestanden. Zuwider-
handlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten, insbesondere
fuer den Fall der Patenterteilung oder GM-Eintragung.
CL
A
L
D
Ordering Information Connector
number of contacts 10,14,16
20,26,30,34,40,50,60,64
A: short lever / B: long lever /
Packing see note
A
10.70±0.25
8.10
2.00XNo.of Positions+6.30±0.30
2.00XNo.of Positions+15.90±0.30
6.10
8.9
±0.25
SECTION A-A
D
040 x 0 xx - 1 x 7 x
E
E
3D-CAD-MODELLNAME:
7: SMT
3: 30µ" (0.76µm) Gold / 4: Flash
Gold / 5: 15µ" (0.38µm) Gold
F
DRAWING IMPORT
wird verwendet in / USED IN:
FILETYPE:
2D-DRW
GENERAL TOLERANCES
Dateiname Zeichnung / FILENAME DRAWING:
C-040X0XX-1X7X
Maßstab:
SCALE
MATERIAL:
-
-
-
-
Allgemeintoleranzen
.000 ±0.13
.00 ±0.25
.0 ±0.38 }
ANGLE ±1°
Einheit/UNIT
mm
NAME
unscaled
VOLUME: mm3
Gewicht/WEIGHT: g
unverbindlich!
WITHOUT OBLIGATION!
EUROPEAN PROJECTION
Oberfl./FINISH
SEE PRODUCT KEY
SEE PRODUCT KEY
Bemerkungen / REMARKS
DATE
Benennung/TITLE
1: Straight
B: Black color
other color on request
1
2
3
4
-
-
-
-
-
erstellt
DRAWN BY
geprueft
CHECKED
Freigabe
RELEASED
210208
210208
210208
WIS
ROK
RAS

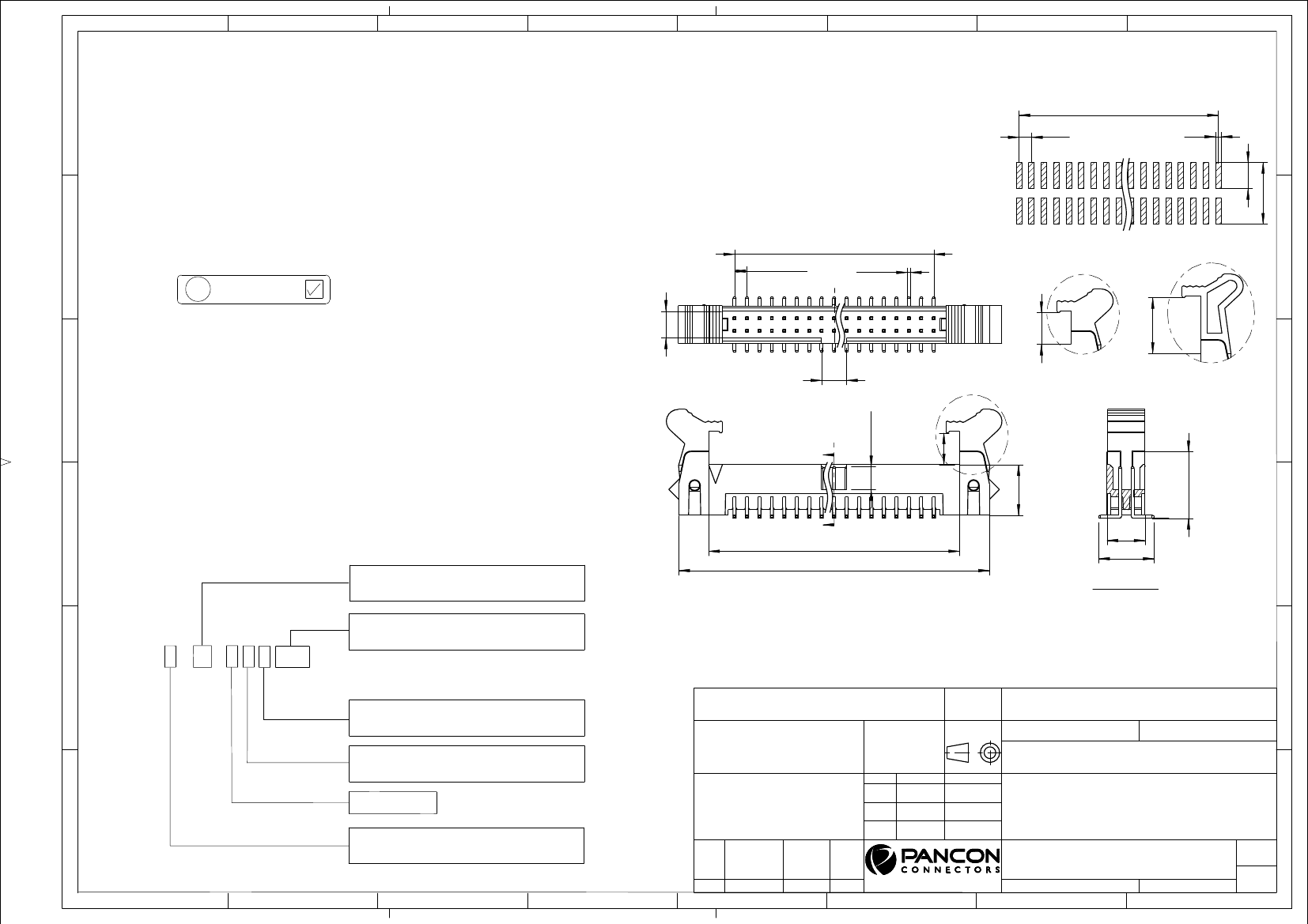

LATCH HEADER, 200,
STRAIGHT, SMT
Zeichnungsnummer/DRAWING-NO.
Blatt
SHT.
von
OF
F
1
1
04
REV.
1901
Aenderung/ECN
110209
DATE
TOS
NAME
www.pancon.de
C-040X0XX-1X7X
