RTF14160OHMJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RTF14160OHMJ

RTF14160OHMJ: DescriptionFixed Resistor, Carbon Film, 0.25W, 160ohm, 250V, 5% +/-Tol; CategoryPassive components The resistor; File Size42KB，1 Pages; ManufacturerThree-circle

Download Datasheet Parametric View All

RTF14160OHMJ Overview

Fixed Resistor, Carbon Film, 0.25W, 160ohm, 250V, 5% +/-Tol

RTF14160OHMJ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Flameproof
Lead diameter	0.45 mm
Lead length	26 mm
Manufacturer's serial number	RTF14
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	1.9 mm
Package length	3.5 mm
Package form	Axial
method of packing	Bulk
Rated power dissipation(P)	0.25 W
resistance	160 Ω
Resistor type	FIXED RESISTOR
series	RTF14
technology	CARBON FILM
Tolerance	5%
Operating Voltage	250 V

Preview

Download Datasheet

View All

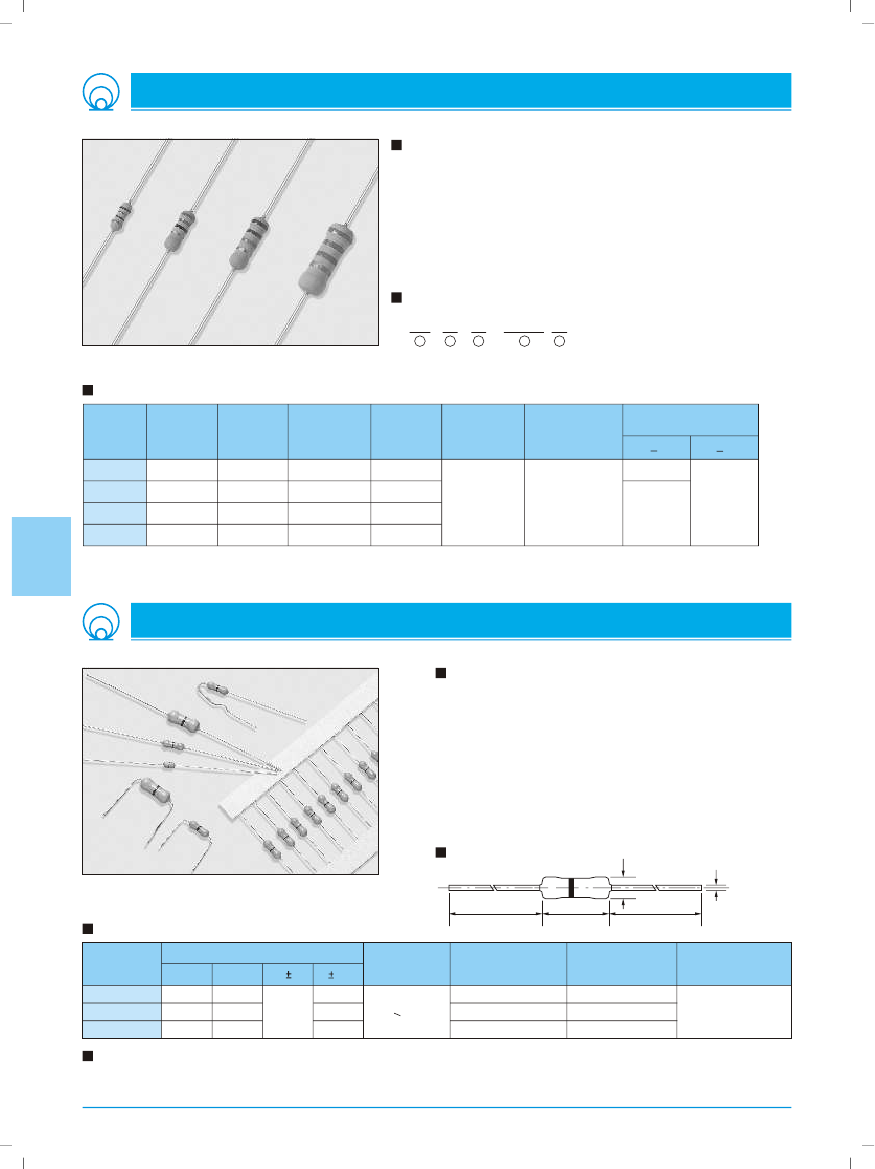

阻燃性绝缘型碳膜固定电阻器

FLAMEPROOF INSULATED CARBON FILM RESISTORS

特点：

表面涂覆阻燃性涂料、安全性½

有散装、纸带和卷 ½ 包装½式

电阻值采用色码标记

FEATURES

1. Coated with flameproof painting and good safety

2. Packaged in bulk, tape and reel

3. Resistance marked with color code

产品型号代号

ORDERING CODE

RT F 14 100Ω J

技术参数

规格型号

TYPE

TECHNICAL REQUIREMENTS

额定环境温度

70 C额

定功率 ½用极限电压最大过负荷电压

耐电压

Rated power Max working

Max overload Withstanding Rated ambient

Temp(

¡£

(W)

Vol. (V)

Vol.

① 碳膜电阻器

Carbon film resistor

② 阻燃性

Flameproof

③ 规格

Specification

④ 电阻值

Resistance

⑤ 电阻值允许偏差

Resistance tolerance

电阻值范围

Resistance range

¡£

½用环境温度

Operating ambient

Temp(

¡£

G(2 %)

10Ω~200KΩ

J(+5%)

RTF14

RTF15

1/4

1/2

250

350

500

600

800

1000

500

700

1000

-55~+155

2.2Ω~1MΩ

10Ω~1MΩ

固

定

电

阻

器

FIXED RESISTORS

RTF100

RTF200

∗产品

特性与外型尺寸可参照P18、P19绝缘型碳膜固定电阻器内容

Characteristics and dimensions refer to insulated fixed carbon film resistor at P18 and P19

零欧电阻器

ZERO OHM RESISTORS

特点：

供电子线路用零欧姆跨接元件

有三种标准规格

(16Z，25Z，50Z)

有散装、纸带和卷 ½ 包装½式

电阻 ½ 仅用一圈黑色带 ½ 标志

FEATURES

1. Zero-ohm spanning connection component.

2. Three standard specifications(16Z£¬25Z£¬50Z)

3. Packaged in bulk, tape and reel

4. Resistor body marked with one black band

外½与尺寸

FIGURE AND DIMENSIONS (MM)

特性与参数

CHARACTERISTICS AND PARAMETER

型号

TYPE

尺寸

Dimensions (mm)

Lmax

Dmax

H 2

d 0.05

电阻值

Resistance

(W)

最大容许电流

Max. Current

allowed (A)

绝缘强度

Insulation

strength (V)

½用环境温度

¡£

Operating Temp

¡£

( C)

16Z

25Z

50Z

3.5

6.4

1.9

2.5

3.9

0.45

0.50

0.65

<0.02

1.5

2.0

2.5

300

350

500

-55~+155

第二次加工

PROCESS AT TWICE

产品的第二次加工可查看“ 第二次加工”版面的

图样与

尺寸。

Referring to drawing and dimensions of the resistors processed at twice

www.china-threecircle.com
