DHD-PB100-S331NO datasheet, PDF

Datasheet> All Categories > The connector> The connector> DHD-PB100-S331NO

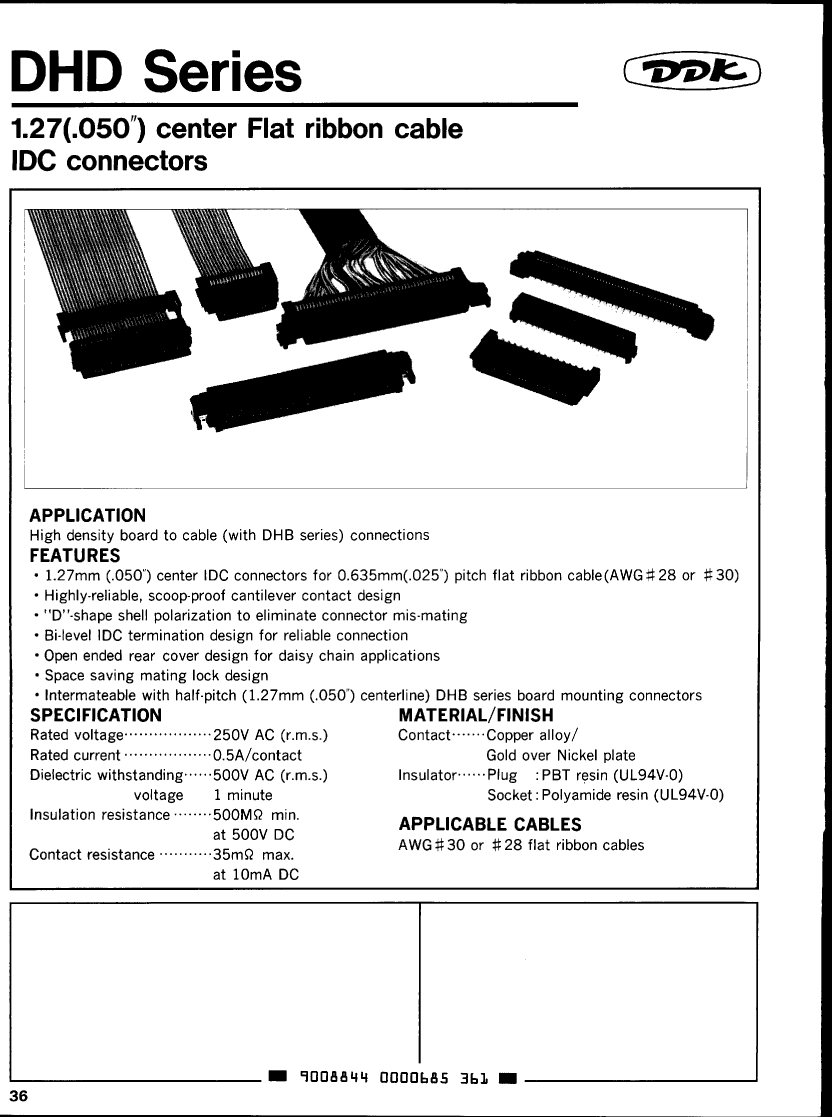

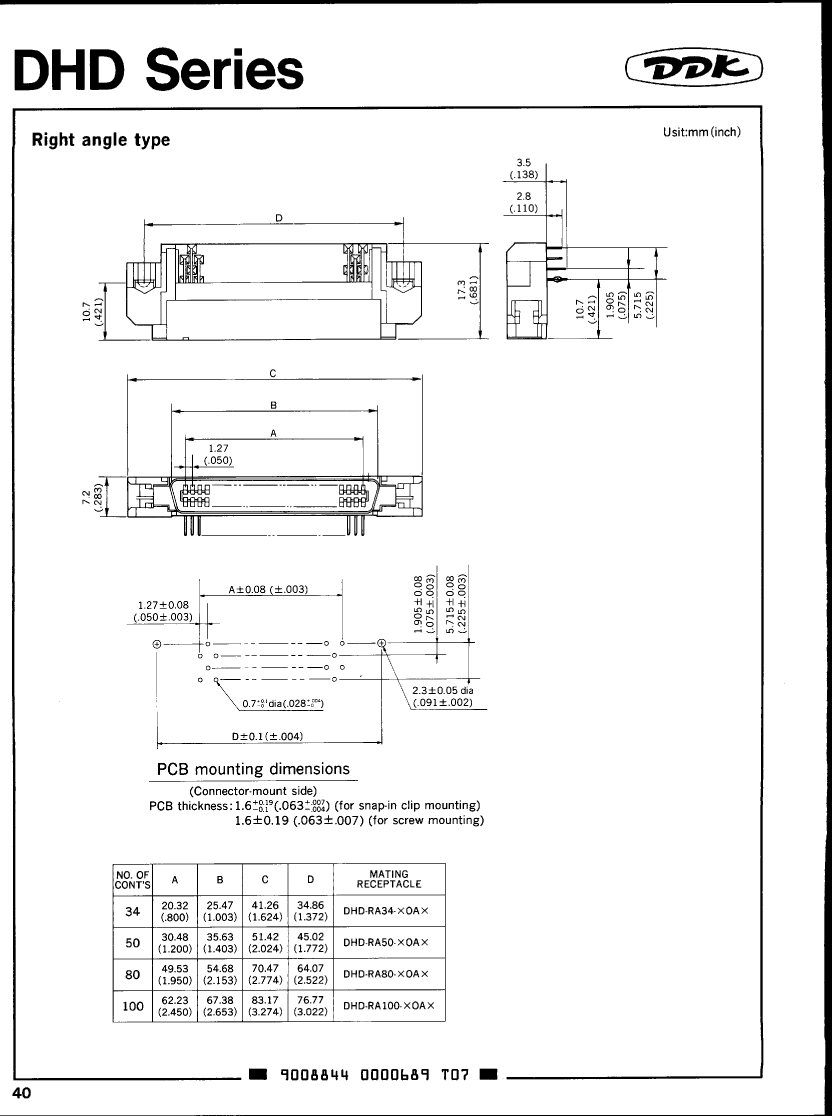

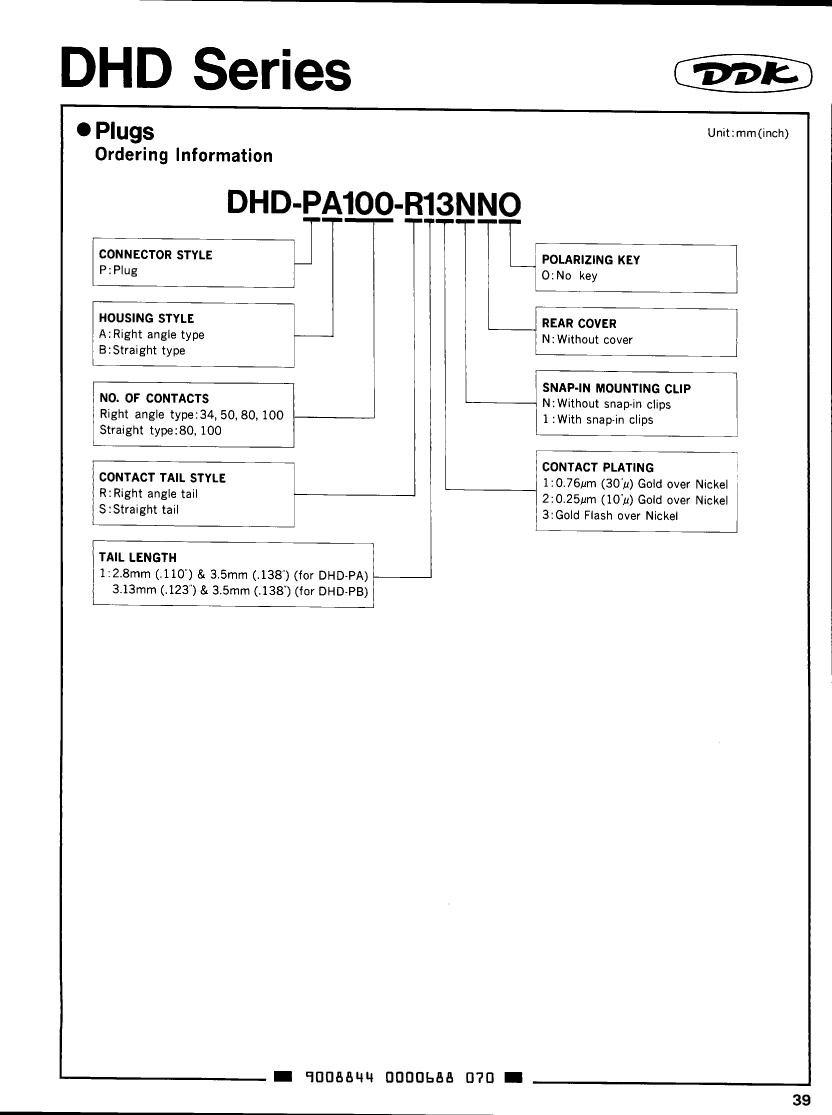

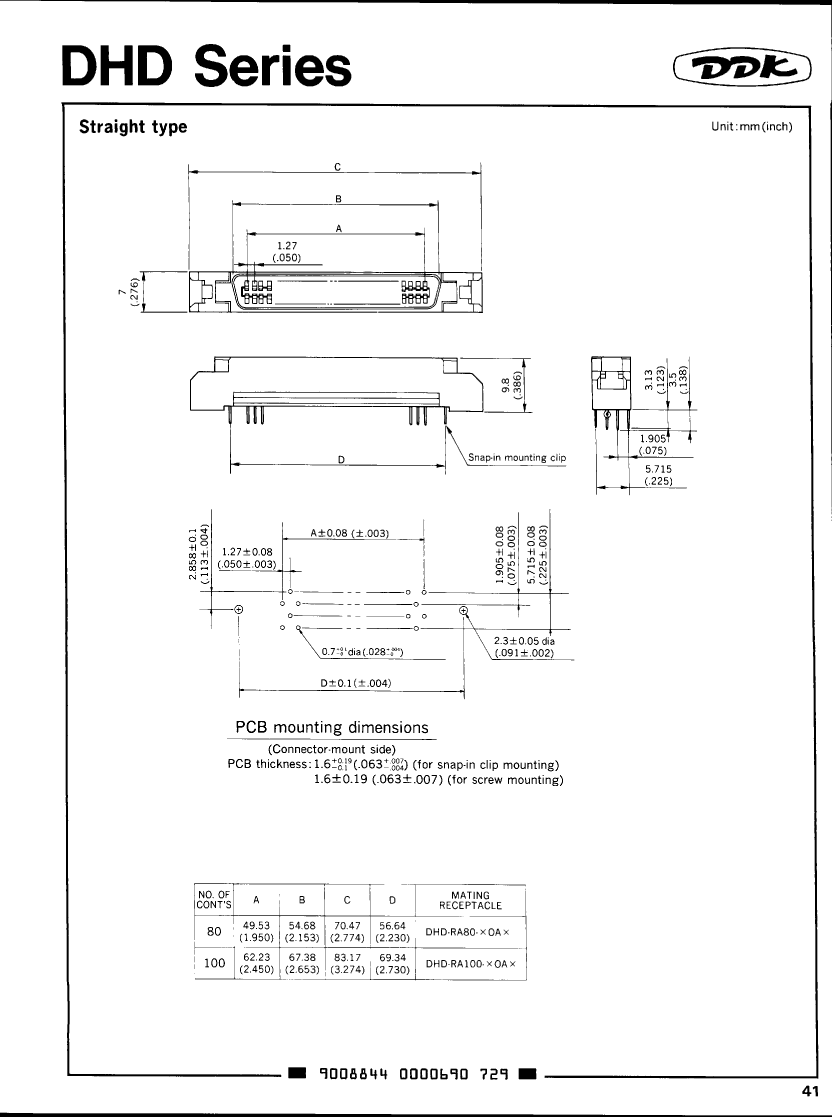

DHD-PB100-S331NO: DescriptionD Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle; CategoryThe connector The connector; File Size220KB，4 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

DHD-PB100-S331NO Overview

D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle

DHD-PB100-S331NO Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.276 inch
body length	3.274 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHD
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.123 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	100

Preview

Download Datasheet

View All

DHD-PB100-S331NO Related Products

	DHD-PB100-S331NO	DHD-PA100-R121NO	DHD-PA50-R121NO	DHD-PB100-S311NO	DHD-PB100-S321NO
Description	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle	D Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
body width	0.276 inch	0.283 inch	0.283 inch	0.276 inch	0.276 inch
body length	3.274 inch	3.274 inch	2.024 inch	3.274 inch	3.274 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	GOLD	GOLD	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHD	DHD	DHD	DHD	DHD
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	4	4	4
Number of rows loaded	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	FLASH inch	10u inch	10u inch	30u inch	10u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.123 inch	0.11 inch	0.11 inch	0.123 inch	0.123 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	100	100	50	100	100
ECCN code	EAR99	-	EAR99	EAR99	EAR99
