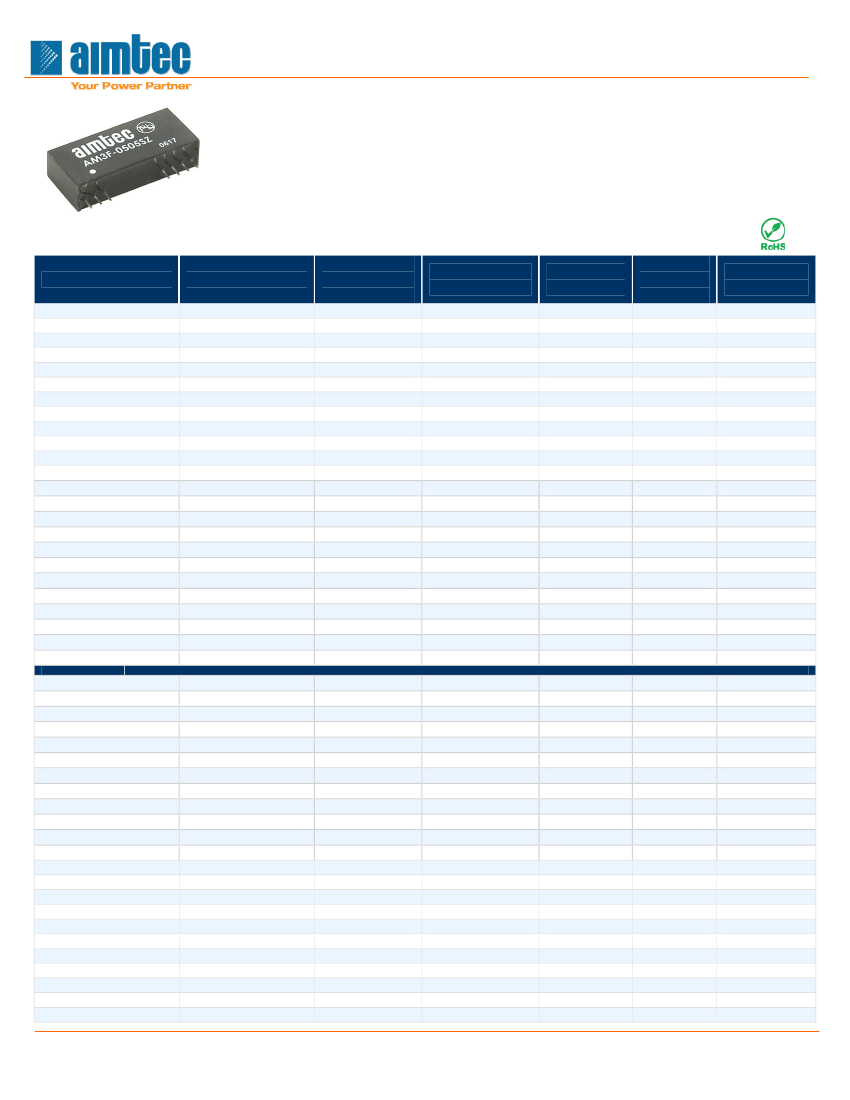

Series AM3F-Z
3 Watt | DC-DC Converter
FEATURES:
RoHS compliant
12 Pin SIP Package
Low ripple and noise
High efficiency up to 72%
Operating temperature -40
o
C to + 85
o
C
Input / Output isolation 1000, 3000 and 5200VDC
Pin compatible with multiple manufacturers
Regulated single output
Models
Single output
Model
AM3F-0503SZ
AM3F-0505SZ
AM3F-0507SZ
AM3F-0509SZ
AM3F-0512SZ
AM3F-0515SZ
AM3F-0518SZ
AM3F-0524SZ
AM3F-1203SZ
AM3F-1205SZ
AM3F-1207SZ
AM3F-1209SZ
AM3F-1212SZ
AM3F-1215SZ
AM3F-1218SZ
AM3F-1224SZ
AM3F-2403SZ
AM3F-2405SZ
AM3F-2407SZ
AM3F-2409SZ
AM3F-2412SZ
AM3F-2415SZ
AM3F-2418SZ
AM3F-2424SZ
AM3F-0503SH30Z
AM3F-0505SH30Z
AM3F-0507SH30Z
AM3F-0509SH30Z
AM3F-0512SH30Z
AM3F-0515SH30Z
AM3F-0518SH30Z
AM3F-0524SH30Z
AM3F-1203SH30Z
AM3F-1205SH30Z
AM3F-1207SH30Z
AM3F-1209SH30Z
AM3F-1212SH30Z
AM3F-1215SH30Z
AM3F-1218SH30Z
AM3F-1224SH30Z
AM3F-2403SH30Z
AM3F-2405SH30Z
AM3F-2407SH30Z
AM3F-2409SH30Z
AM3F-2412SH30Z
AM3F-2415SH30Z
AM3F-2418SH30Z
www.aimtec.com
F 051e R6.C
Input Voltage (V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output
Voltage
(V)
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
Output Current
max (mA)
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
Isolation
(VDC)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
Max
Capacitive
Load (uF)
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
Efficiency
(%)
53
67
64
67
72
72
65
70
55
67
64
67
72
72
66
70
55
65
61
65
70
70
66
72
53
67
64
67
72
72
65
70
55
67
64
67
72
72
66
70
55
65
61
65
70
70
66
Tel: +1 514 620 2722
1 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM3F-Z
3 Watt | DC-DC Converter
Models
Single output (Continue)
Model
AM3F-2424SH30Z
AM3F-0503SH52Z
AM3F-0505SH52Z
AM3F-0507SH52Z
AM3F-0509SH52Z
AM3F-0512SH52Z
AM3F-0515SH52Z
AM3F-0518SH52Z
AM3F-0524SH52Z
AM3F-1203SH52Z
AM3F-1205SH52Z
AM3F-1207SH52Z
AM3F-1209SH52Z
AM3F-1212SH52Z
AM3F-1215SH52Z
AM3F-1218SH52Z
AM3F-1224SH52Z
AM3F-2403SH52Z
AM3F-2405SH52Z
AM3F-2407SH52Z
AM3F-2409SH52Z
AM3F-2412SH52Z
AM3F-2415SH52Z
AM3F-2418SH52Z
AM3F-2424SH52Z
Input Voltage (V)
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output
Voltage
(V)
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
Output Current
max (mA)
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
800
600
417
333
250
200
167
125
Isolation
(VDC)
3000
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
5200
Max
Capacitive
Load (uF)
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
Efficiency
(%)
72
53
67
64
67
72
72
65
70
55
67
64
67
72
72
66
70
55
65
61
65
70
70
66
72
Input Specifications
Parameters
Voltage range
Filter
Turn on Transient process time
Start up time
Absolute Maximum Rating
Peak Input Voltage time
5 Vin
12 Vin
24 Vin
Nominal
5
12
24
Typical
4.5-5.5
10.8-13.2
21.6-26.4
Capacitor
300
0-7
0-15
0-28
100
Maximum
Units
VDC
100
ms
ms
VDC
ms
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
3 sec
Typical
> 1000
60
Rated
1000, 3000 and 5200
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Short circuit restart
Line voltage regulation (Single)
Load voltage regulation (Single)
www.aimtec.com
F 051e R6.C
Conditions
Typical
±2
Maximum
Continuous
Auto-recovery
Units
%
0 to 100% load
±0.5
±0.5
Tel: +1 514 620 2722
2 of 4
%
%
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM3F-Z
3 Watt | DC-DC Converter
Output Specifications (continued)
Parameters
Load voltage regulation (Single)
3.3V output model
Temperature coefficient
Ripple & Noise
Rising time
Conditions
0 to 100% load
Typical
±1.5
±0.02
75
150
Maximum
Units
%
%/
o
C
mV p-p
ms
At 20MHz Bandwidth
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
Humidity
Case material
Weight
Dimensions (L x W x H)
MTBF
Conditions
100% load
Typical
50
-40 to +85
-40 to +125
Maximum
Units
KHz
o
C
o
C
o
C
90
Free air convection
90
%
Non-conductive black plastic
10.7
g
1.25 x 0.34 x 0.53 inches
31.80 x 8.60 x 13.47 mm
>954 000 hrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified
Pin Out Specifications
Pin
1
2
3
9
10
11
12
Dimensions
+V Input
-V Input
N.C.
N.C.
-V Output
+V output
N.C.
31.80
(1.25)
PRINTED
FACE
13.97
(0.55)
8.60
(0.34)
1000VDC
+V Input
N.C.
N.C.
N.C.
-V Output
+V output
-V Input
3000 & 5200VDC
13.47
(0.53)
0.50
(0.02)
2.54
(0.10)
27.94
(1.10)
3.05
(0.12)
8.60
(0.34)
3.81
(0.15)
0.50
(0.02)
0.25
(0.01)
0.50
(0.02)
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
www.aimtec.com
F 051e R6.C
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM3F-Z
3 Watt | DC-DC Converter
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
www.aimtec.com
F 051e R6.C
Tel: +1 514 620 2722
4 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
