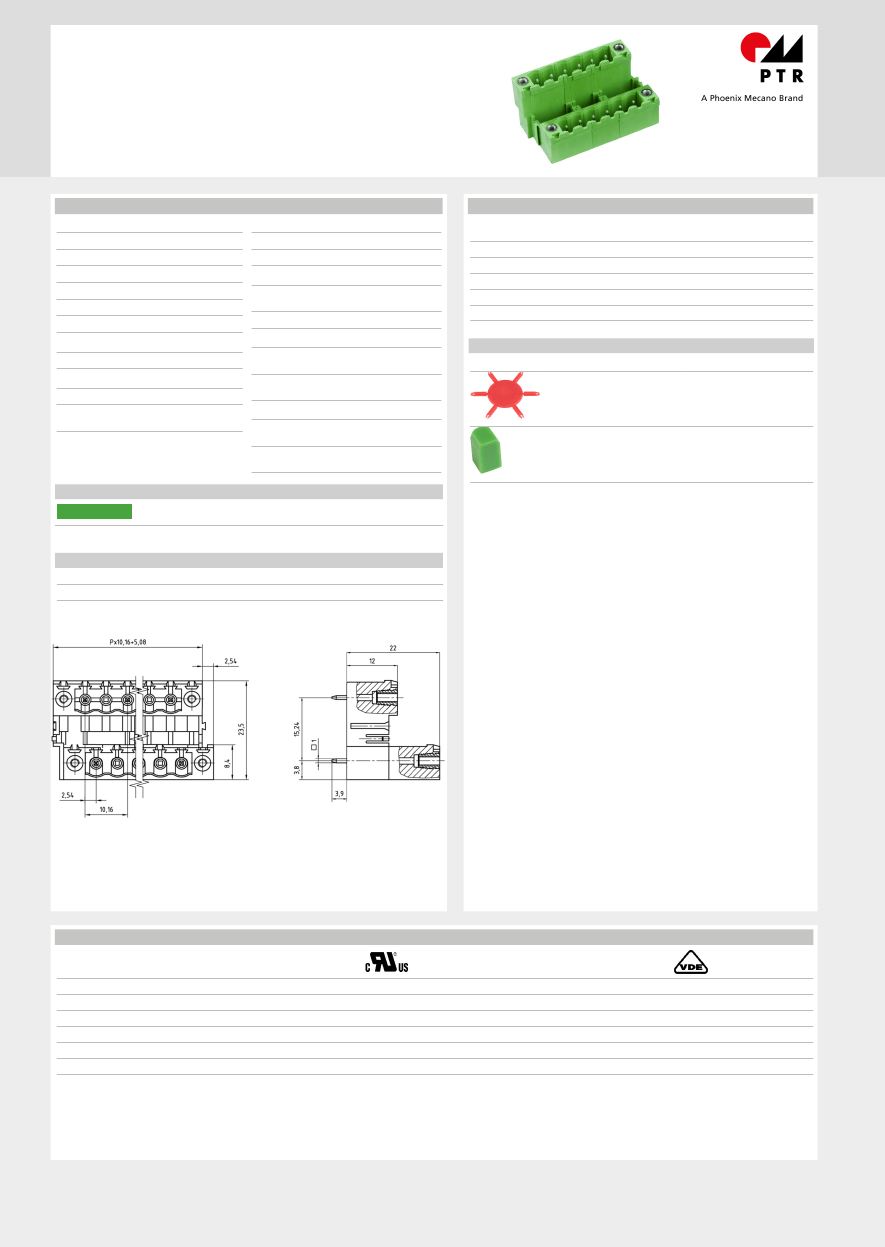

Pin Strip |
Spacing 10.16 mm
STLZ970/..F-10.16-V-GREEN
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
-
-
-
-
-
-
Order Data (Spacing 10.16 mm)
Insulating Material
Material
Flammability Class
PBT
2
27.94
38.10
48.26
58.42
68.58
STLZ970/2F-10.16-V-GREEN
STLZ970/3F-10.16-V-GREEN
STLZ970/4F-10.16-V-GREEN
STLZ970/5F-10.16-V-GREEN
STLZ970/6F-10.16-V-GREEN
Poles
Width (mm)
Article Designation
Article
Number
50970026161 D
50970036161 D
50970046161 D
50970056161 D
50970066161 D
PU
50
50
50
50
50
UL 94 V-0
3
4
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
5
6
Dimensions
PCB Hole Diameter
1.4 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
Accessoires
Figure
Designation
Coding Star CS2-5.0/5.08-RED
Article Number
Order Data: 50000000024
Materials
Thread Insert, Flange
Contact Pin
Brass
Copper
Alloy
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
-
Separating Element
SE-STL950-GREEN
Order Data: 50950000002
Colours
GREEN, RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Counterparts (Spacing 10.16 mm)
Terminal Block
AKZ1200
AKZ950
In combination of connectors with different admission data, the lower value is valid.
Ratings
UseGroup
Rated Voltage
Rated Current
Overvoltage Category
Test Voltage
Pollution Degree
B
300 V
15 A
C
150 V
15 A
D
300 V
-
500 V
12 A
III
1.60 kV
1.30 kV
1.60 kV
6.0 kV
3
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
