Keyed LC Opti-Core
™
Patch Cords and Pigtails –
Low Smoke Zero Halogen (LSZH) Rated
SPECIFICATION SHEET
specifications
Keyed LC fibre optic patch cords include simplex or
duplex keyed LC connectors on both ends, or on one end with
non-keyed LC or SC connectors on the other end. Keyed LC
fibre optic pigtails shall include simplex or duplex keyed LC
connectors on one end and open (un-terminated) on the other
end. Keyed LC connectors are mechanically keyed with
colour-specific positive and negative keying features to prevent
unintentional mating with unlike keyed or non-keyed adapters.
Patch cords and pigtails include laser optimised OM3 fibre,
OM2, OM1 and OS1/OS2 fibre inside 900µm tight-buffered
fibre or 1.6mm simplex or duplex zipcord jacketed cable.
Jacketed cable is compliant with IEC-60332 (LSZH) flame
ratings. Patch cords and pigtails are RoHS compliant and
meet or exceed requirements of ISO/IEC 11801 and
TIA/EIA – 568-B.3. The fibre connectors exceed the
requirements of TIA/EIA-455-21A or 500 mating cycles.
Keyed LC Opti-Core
™
Duplex LSZH
Patch Cords (Keyed LC to Keyed LC)
Keyed A (black):
F^LE10A-10AM‡
Keyed B (red):
F^LE10B-10BM‡
Keyed C (green):
F^LE10C-10CM‡
Keyed D (yellow):
F^LE10D-10DM‡
Keyed E (orange):
F^LE10E-10EM‡
Keyed F (dark blue):
F^LE10F-10FM‡
Keyed LC Opti-Core
™
Simplex
Pigtails – 900µm Buffered Fibre
*
Keyed A (black):
F^B10A-NM‡
Keyed B (red):
F^B10B-NM‡
Keyed C (green):
F^B10C-NM‡
Keyed D (yellow):
F^B10D-NM‡
Keyed E (orange):
F^B10E-NM‡
Keyed F (dark blue):
F^B10F-NM‡
Keyed LC Opti-Core
™
Duplex LSZH
Pigtails – 1.6mm Jacketed Cable
*
Keyed A (black):
F^LE10A-NM‡
Keyed B (red):
F^LE10B-NM‡
Keyed C (green):
F^LE10C-NM‡
Keyed D (yellow):
F^LE10D-NM‡
Keyed E (orange):
F^LE10E-NM‡
Keyed F (dark blue):
F^LE10F-NM‡
Keyed LC Opti-Core
™
Hybrid Duplex
LSZH Patch Cords (Keyed LC to LC)
Keyed A (black):
F^LE10A-10M‡
Keyed B (red):
F^LE10B-10M‡
Keyed C (green):
F^LE10C-10M‡
Keyed D (yellow):
F^LE10D-10M‡
Keyed E (orange):
F^LE10E-10M‡
Keyed F (dark blue):
F^LE10F-10M‡
Keyed LC Opti-Core
™
Hybrid Duplex
LSZH Patch Cords (SC to Keyed LC)
Keyed A (black):
F^LE3-10AM‡
Keyed B (red):
F^LE3-10BM‡
Keyed C (green):
F^LE3-10CM‡
Keyed D (yellow):
F^LE3-10DM‡
Keyed E (orange):
F^LE3-10EM‡
Keyed F (dark blue):
F^LE3-10FM‡
Keyed LC Mini-Com
™
Duplex Adapter
Modules (Ceramic Split Sleeves)
Keyed A (black):
CMDABLLCZ**
Keyed B (red):
CMDBRDLCZ**
Keyed C (green):
CMDCGRLCZ**
Keyed D (yellow):
CMDDYLLCZ**
Keyed E (orange):
CMDEORLCZ**
Keyed F (dark blue):
CMDFDBLCZ**
Keyed LC Opticom
™
Fibre Adapter
Panels (Ceramic Split Sleeves)
Keyed A (black):
FAP6WABLDLCZ
Keyed B (red):
FAP6WBRDDLCZ
Keyed C (green):
FAP6WCGRDLCZ
Keyed D (yellow):
FAP6WDYLDLCZ
Keyed E (orange):
FAP6WEORDLCZ
Keyed F (dark blue):
FAP6WFDBDLCZ
^Substitute for fibre type:
X = (OM3 – 10 Gig
™
50/125µm)
5 = (OM2 – 62.5/125µm)
6 = (OM1 – 62.5/125µm)
9 = (OS1 – 9/125µm)
‡Substitute for length in metres: 1 — 10, 15, 20
or 30. Contact Customer Service for other available
lengths or universal reference patch cords.
*900µm buffered fibre pigtails are not flame rated.
Additional keyed colours include the following:
(G) Violet, (H) Aqua, (J) Rose, (K) Slate, (L) Brown,
(P) White, (Q) Charcoal, (R) Lavender, (S) Peach,
(T) Steel Blue, (V) Maroon, (W) Mint.
technical information
Standards requirements
Fibre optic connectors:
Patch cords and pigtails:
Insertion loss:
Exceed ISO/IEC 11801 and TIA/EIA – 568-B.3
Exceed IEC-61754-7 (International)
Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and
IEC-60332(LSZH) flame ratings
Per connection:
0.10dB typical, 0.30dB max. (multimode)
0.25dB typical, 0.35dB max. (LC singlemode)
0.25dB typical, 0.75dB max. (SC singlemode)
Return loss:
20dB min. (multimode); 26dB min. (10Gig
™
multimode);
55dB min. (singlemode)
key features and benefits
Colour-specific keys with
positive and negative
keying features
Factory terminated and 100%
tested for insertion loss (all)
and return loss (10Gig
™
and SM)
Low smoke zero halogen
Singlemode endfaces UPC
polished (55dB min. return loss)
Singlemode endface geometry
100% factory inspected
Certified 10 GbE performance
Mechanically and visually distinguish connections to prevent
unintentional insertion into unlike keyed or non-keyed ports, allow
network design flexibility and versatility, and accommodate
more discrete networks
Assures high performance for increased up-time and lower
cost of ownership
Meets IEC-60332 (LSZH) flame rating for standard
compliant safety
Ensure a high quality endface for higher return loss to meet
application requirements
Every singlemode endface is inspected in compliance with
Telcordia GR-326-CORE, Issue 3 requirements to assure
high performance
Keyed LC 10Gig
™
Patch Cords and Pigtails are tested per IEEE
802.3ae 10 GbE to support network transmission speeds up to 10
Gb/s for link lengths up to 300 meters at 850nm to assure high
performance and reliability
Establishes a performance reference to streamline maintenance
and troubleshooting
Test data supplied with
each patch cord and pigtail
applications
Keyed LC Opti-Core
™
Fibre Optic Patch Cords
and Pigtails enable fibre to the desk (FTTD),
interconnect and cross-connect of applications for
the specialised infrastructure design that is
required for secure networks. The primary
application for Keyed LC Opti-Core
™
Fibre
Optic Patch Cords and Pigtails is FTTD
deployments that require a level of visual and
mechanical differentiation, and physical layer
security that conventional connector solutions
cannot provide. These low smoke zero halogen
(LSZH) rated patch cords and pigtails support
installations that require flame ratings in specific
environments. Keyed LC Opti-Core
™
Fibre Optic
Patch Cords and Pigtails are available in OM1,
OM2, OM3 and OS1/OS2 fibre types to meet the
demand of Gigabit Ethernet, 10 Gigabit Ethernet
and high speed Fibre Channel systems while
maintaining compatibility with Ethernet, Fast
Ethernet, FDDI and ATM.
w w w. p a n d u i t . c o m
Keyed LC Opti-Core
™
Patch Cords and Pigtails – Low Smoke Zero Halogen (LSZH) Rated

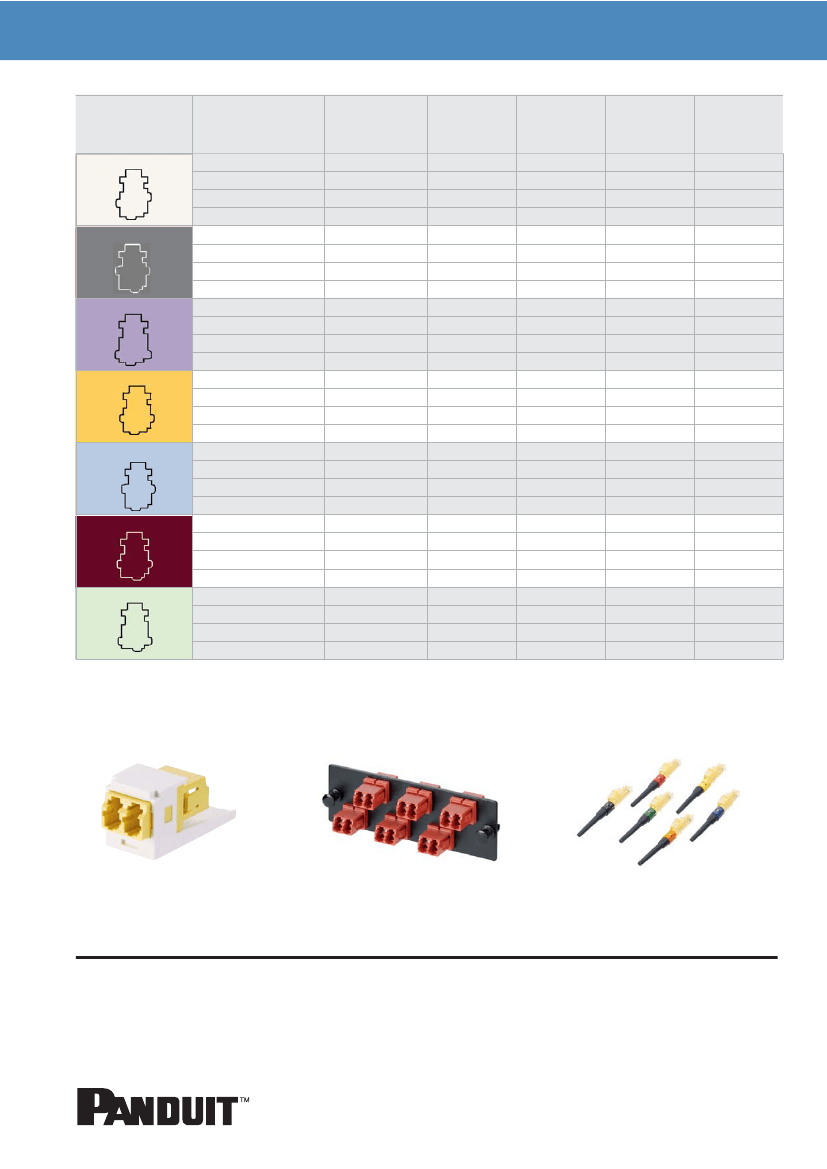

ordering information (continued)

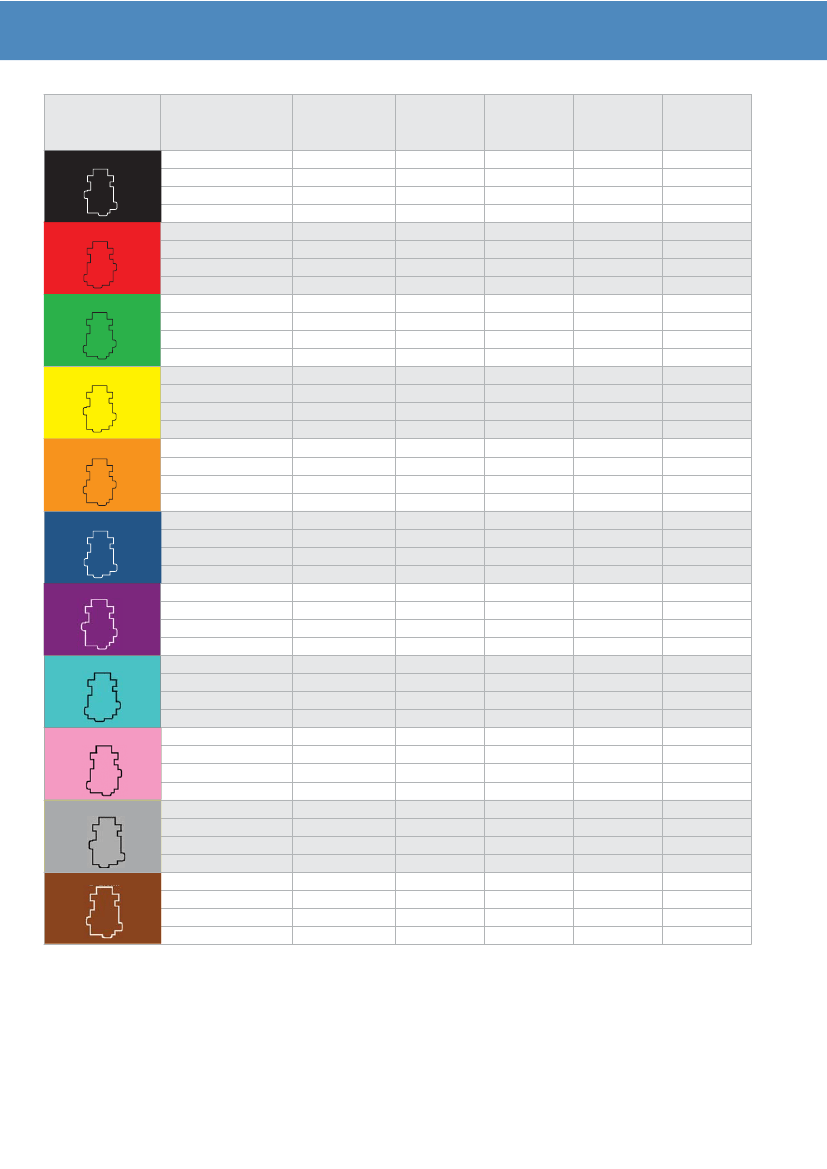

Key Type and Color
(Adapter Key Shown)
P - White
Fibre Type
10Gig
™
50/125µm OM3
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
10Gig
™
50/125µm OM3
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
10Gig
™
50/125µm OM3
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
10Gig
™
50/125µm OM3
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
10Gig
™
50/125µm OM3
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
10Gig 50/125µm OM3
™
Keyed LC to
Keyed LC Duplex
LSZH
Patch Cords‡
FXLE10P-10PM*
F5LE10P-10PM*
F6LE10P-10PM*
F9LE10P-10PM*
FXLE10Q-10QM*
F5LE10Q-10QM*
F6LE10Q-10QM*
F9LE10Q-10QM*
FXLE10R-10RM*
F5LE10R-10RM*
F6LE10R-10RM*
F9LE10R-10RM*
FXLE10S-10SM*
F5LE10S-10SM*
F6LE10S-10SM*
F9LE10S-10SM*
FXLE10T-10TM*
F5LE10T-10TM*
F6LE10T-10TM*
F9LE10T-10TM*
FXLE10V-10VM*
F5LE10V-10VM*
F6LE10V-10VM*
F9LE10V-10VM*
FXLE10W-10WM*
F5LE10W-10WM*
F6LE10W-10WM*
F9LE10W-10WM*
Keyed LC
Simplex
Pigtails
FXB10P-NM*
F5B10P-NM*
F6B10P-NM*
F9B10P-NM*
FXB10Q-NM*
F5B10Q-NM*
F6B10Q-NM*
F9B10Q-NM*
FXB10R-NM*
F5B10R-NM*
F6B10R-NM*
F9B10R-NM*
FXB10S-NM*
F5B10S-NM*
F6B10S-NM*
F9B10S-NM*
FXB10T-NM*
F5B10T-NM*
F6B10T-NM*
F9B10T-NM*
FXB10V-NM*
F5B10V-NM*
F6B10V-NM*
F9B10V-NM*
FXB10W-NM*
F5B10W-NM*
F6B10W-NM*
F9B10W-NM*
Keyed LC
Duplex
LSZH
Pigtails
FXLE10P-NM*
F5LE10P-NM*
F6LE10P-NM*
F9LE10P-NM*
FXLE10Q-NM*
F5LE10Q-NM*
F6LE10Q-NM*
F9LE10Q-NM*
FXLE10R-NM*
F5LE10R-NM*
F6LE10R-NM*
F9LE10R-NM*
FXLE10S-NM*
F5LE10S-NM*
F6LE10S-NM*
F9LE10S-NM*
FXLE10T-NM*
F5LE10T-NM*
F6LE10T-NM*
F9LE10T-NM*
FXLE10V-NM*
F5LE10V-NM*
F6LE10V-NM*
F9LE10V-NM*
F5LE10W-NM*
F6LE10W-NM*
F9LE10W-NM*
Keyed LC to
LC Duplex
LSZH
Patch Cords‡
FXLE10P-10M*
F5LE10P-10M*
F6LE10P-10M*
F9LE10P-10M*
FXLE10Q-10M*
F5LE10Q-10M*
F6LE10Q-10M*
F9LE10Q-10M*
FXLE10R-10M*
F5LE10R-10M*
F6LE10R-10M*
F9LE10R-10M*
FXLE10S-10M*
F5LE10S-10M*
F6LE10S-10M*
F9LE10S-10M*
FXLE10T-10M*
F5LE10T-10M*
F6LE10T-10M*
F9LE10T-10M*
FXLE10V-10M*
F5LE10V-10M*
F6LE10V-10M*
F9LE10V-10M*
F5LE10W-10M*
F6LE10W-10M*
F9LE10W-10M*
Keyed LC to
SC Duplex
LSZH
Patch Cords‡
FXLE3-10PM*
F5LE3-10PM*
F6LE3-10PM*
F9LE3-10PM*
FXLE3-10QM*
F5LE3-10QM*
F6LE3-10QM*
F9LE3-10QM*
FXLE3-10RM*
F5LE3-10RM*
F6LE3-10RM*
F9LE3-10RM*
FXLE3-10SM*
F5LE3-10SM*
F6LE3-10SM*
F9LE3-10SM*
FXLE3-10TM*
F5LE3-10TM*
F6LE3-10TM*
F9LE3-10TM*
FXLE3-10VM*
F5LE3-10VM*
F6LE3-10VM*
F9LE3-10VM*
FXLE3-10WM*
F5LE3-10WM*
F6LE3-10WM*
F9LE3-10WM*
Q - Charcoal
R - Lavender
S - Peach
T - Steel Blue
V – Maroon
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
W - Mint
10Gig 50/125µm OM3
™
FXLE10W-NM* FXLE10W-10M*
50/125µm OM2
62.5/125µm OM1
9/125µm OS1/OS2
*Substitute for length in metres: 1 – 10, 15, 20 or 30.
‡ Standard cable jacket colours are: Aqua - OM3, Orange - OM2/OM1, Yellow - OS2/OS1.
Custom colours available available upon request. Contact factory.
Keyed LC Mini-Com
™
Fibre
Optic Adapter Modules
Keyed LC Opticom
™
Fibre
Adapter Panels (FAPs)
Keyed LC OptiCam
™
Pre-Polished Fibre Connectors
CMD***LCZIW
FAP6W***DLCZ
FLCSMC^***
***For Adapter Modules, substitute for key type and colour: ABL for A – Black, BRD for B – Red, CGR for C – Green, DYL for D – Yellow, EOR for E – Orange, or
FDB for F – Dark Blue, GVL for G - Violet, HAQ for H - Aqua, JRO for J - Rose, KIG for K - Slate, LLB for L - Brown, PWT for P - White, QCG for Q - Charcoal,
RLV for R - Lavender, SPE for S - Peach, TSB for T - Steel Blue, VMA for V - Maroon, WMI for W - Mint.
^Substitute for fibre type: 6 = 62.5/125µm OM1, 5 = 50/125µm OM2, X = 10Gig
™
50/125µm OM3 or 9 = 9/125µm OS1/OS2.
