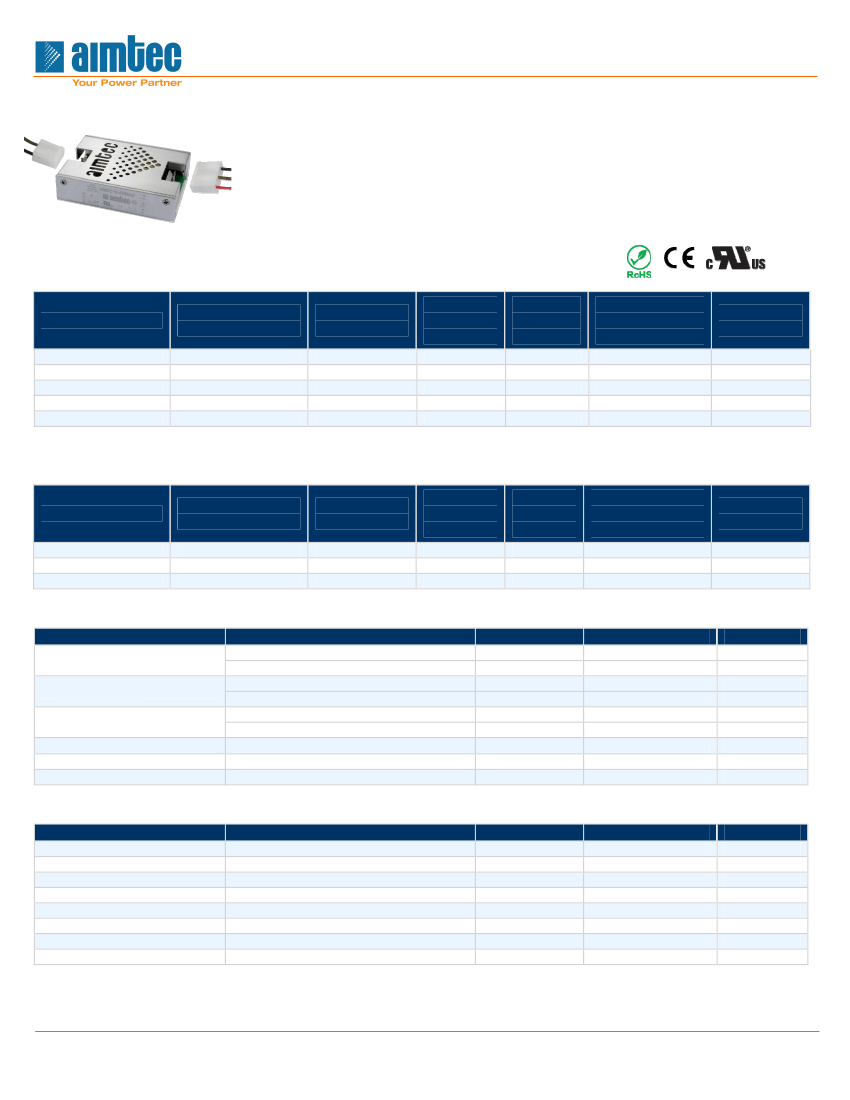

NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Environment Approval
Parameters
Conditions
Wave form: Half sine wave
Acceleration amplitude: 5gn
Bump duration: 30 ms
Number of bumps: 18 (3 in each direction for every axis)
Converter operation before and after test, body mounted (on chassis)
Test mode: Sweep sine
10-100Hz, speed 0.05Hz/s
Displacement: 1mm
Acceleration: 3g
3 loops 30min one cycle, 3h total, every axis tested
Converter operation before and after test, body mounted (on chassis)
Shock
Vibrations
Safety & EMC Specifications
Parameters
Agency approvals
cULus, CE, CB
Medical Electrical Equipment
Information technology Equipment
Harmonic Current Emissions
EMI - Conducted and radiated emission
Voltage fluctuations and flicker
Electrostatic Discharge Immunity
RF, Electromagnetic Field Immunity
Electrical Fast Transient/Burst Immunity
Surge Immunity
RF, Conducted Disturbance Immunity
Power frequency Magnetic Field Immunity
Voltage dips, Short Interruptions Immunity
IEC\EN\UL 60601-1, CSA-C22.2 No. 601.1-M90
EN 60950-1:2006+A11:2009
IEC/EN 61000-3-2, (EN60555-2)
EN55011, class B
IEC/EN 61000-3-3, (EN60555-3)
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Standards
www.aimtec.com
F 052e R8.N
Tel: +1 514 620 2722
2 of 5
Series AMEC15-MAZ
15 Watt | AC-DC Converter
Derating
A
100
Output Power (%)
B
Free Air
Convection
A
80
60
40
20
0
- 40 - 20
0
20
40
60
80
85
40 º C
B
Safe Operating Area
10 CFM
55 º C
100
Ambient Temperature º C
Pin Out Specifications
Pin
1
2
3
4
5
Single
AC Input (N)
AC Input (L)
-V Output
No Connection
+V Output
Dual
AC Input (N)
AC Input (L)
-V Output
Common
+V Output
www.aimtec.com
F 052e R8.N
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AMEC15-MAZ
15 Watt | AC-DC Converter

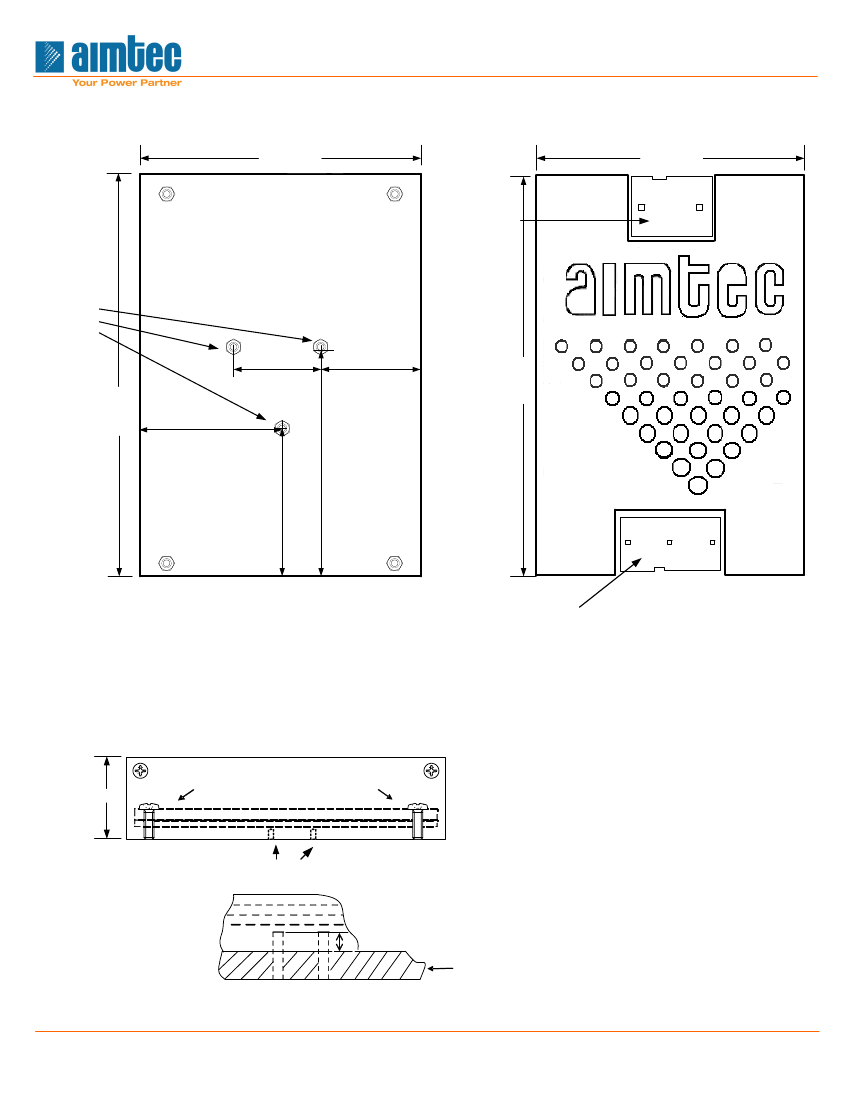

Dimensions
2.56
(65.00)
2.56
(65.00)
2
AC Input
Connector
1
DIN Rail
Bracket
Mounting
Holes
(M3)
0.81
(20.50)
0.88
(22.30)
3.62
(92.00)
3.62
(92.00)
1.28
(32.50)
2.05
(52.10)
1.45
(36.70)
5
4
3
Bottom View
Dimensions: inch (mm)
Case Tolerance: ±0.05 (±1.30)
DC Output
Connector
Top View
24
PCB Mounting
Screw
PCB
Mylar Film
PCB Mounting
Screw
Side View
Bracket
Mountin
g Screw
PCB
Mylar Film
2.6 mm Max
Customer Chassis
www.aimtec.com
F 052e R8.N
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AMEC15-MAZ
15 Watt | AC-DC Converter

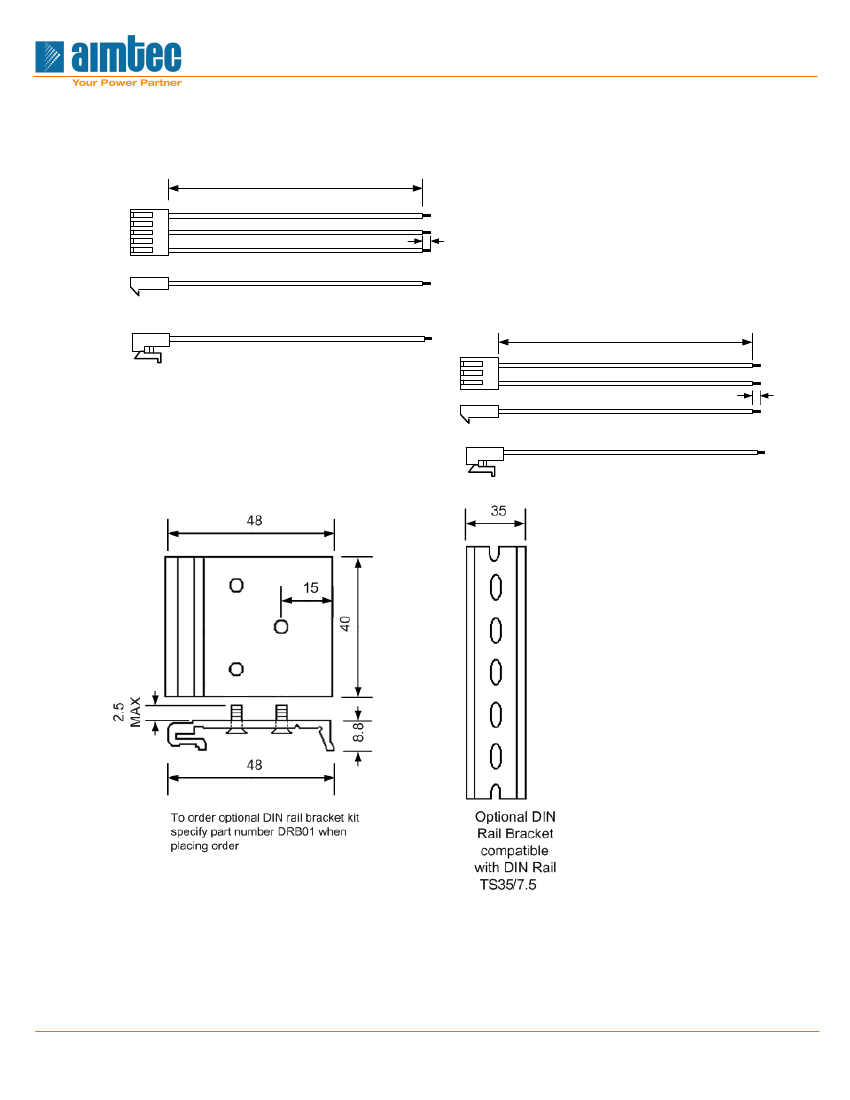

Mating Connectors with Wire (included)
DC Output Mating
Connector
200 ? 0.5
Top
View
Side
View
Alternative
Connector Side
View
3 ? 0.5
AC Input Mating
Connector
200 ? 0.5
Top
View
Alternative
Connector Side
Side
View
3 ? 0.5
View
Optional DIN Rail Bracket
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
