T-1 3/4 (5mm) VARIABLE HEIGHT LED BOARD
INDICATOR
W7113BR5.08/GD
GREEN
Features
LED FIRMLY HELD BY SPACER-NO ADDITIONAL
FIXTURING OR GLUEING NECESSARY.
SUITABLE FOR BACK PANEL ILLUMINATION,
CIRCUIT BOARD INDICATOR, LED INDICATOR.
UL RATING:94V-0.
HOUSING MATERIAL:TYPE 66 NYLON.
RoHS COMPLIANT.
Description
The Green source color devices are made with
Phosphide Green Light Emitting Diode.
Gallium

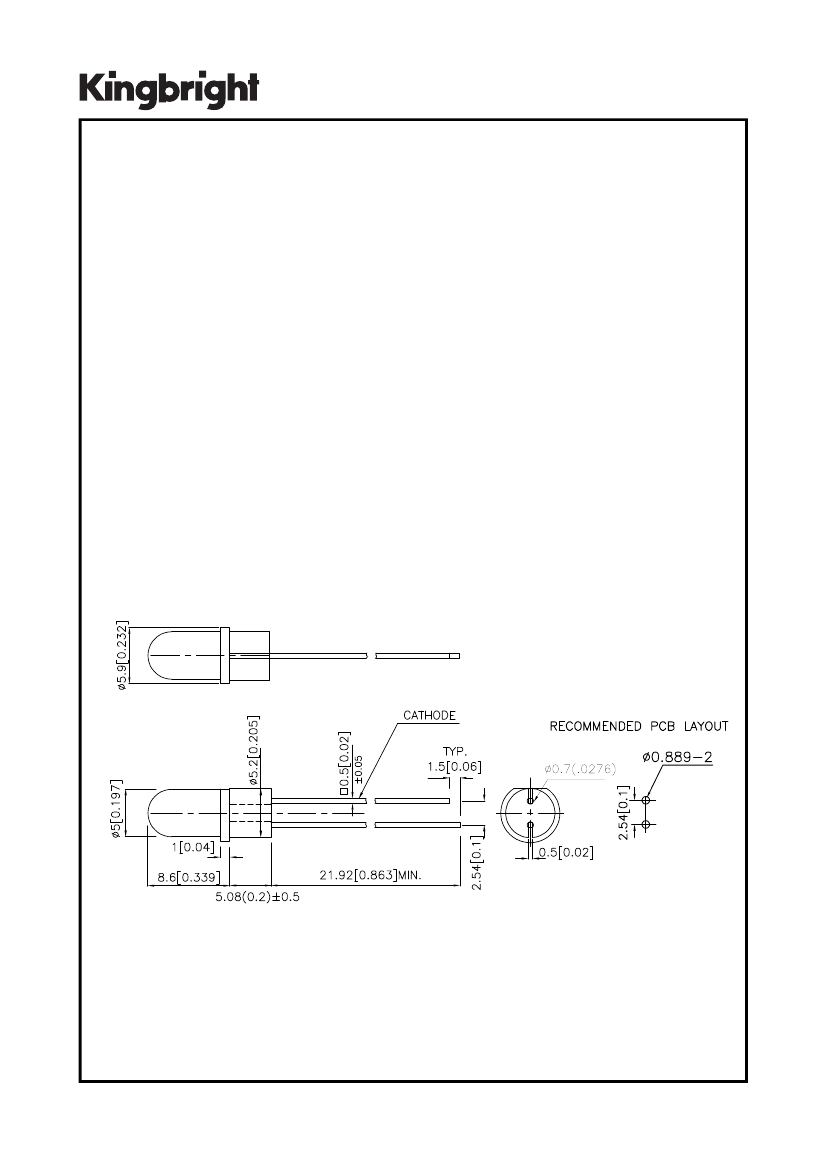

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAE8747
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE:DEC/20/2004
DRAWN: B.H.LI
PAGE: 1 OF 3
ERP: 1102001470
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Min.
W7113BR5.08/GD
GREEN (GaP)
GREEN DIFFUSED
5
Typ.
20
Viewing
Angle
2
θ
1/2
30
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Green
Green
Green
Green
Green
Green
Device
Typ.
565
568
30
15
2.2
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Green
105
25
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAE8747
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE:DEC/20/2004
DRAWN: B.H.LI
PAGE: 2 OF 3
ERP: 1102001470
