BAS70-00-V to BAS70-06-V
Vishay Semiconductors
Small Signal Schottky Diodes, Single & Dual
Features
• These diodes feature very low turn-on
voltage and fast switching
e3
• These devices are protected by a PN
junction guard ring against excessive volt-
age, such as electrostatic discharges
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
BAS70-00-V
3
BAS70-04-V
3
Top View
1
2
1
2
BAS70-05-V
BAS70-06-V
3
Mechanical Data
Case:
SOT23 Plastic case
Weight:
approx. 8.8 mg
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
1
18439
3
Top View
2
1
2
Parts Table
Part
BAS70-00-V
BAS70-04-V
BAS70-05-V
BAS70-06-V
Ordering code
BAS70-00-V-GS18 or BAS70-00-V-GS08
BAS70-04-V-GS18 or BAS70-04-V-GS08
BAS70-05-V-GS18 or BAS70-05-V-GS08
BAS70-06-V-GS18 or BAS70-06-V-GS08
73
74
75
76
Type Marking
Remarks
Tape and Reel
Tape and Reel
Tape and Reel
Tape and Reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Repetitive peak reverse voltage
Forward continuous current
Surge forward current
Power dissipation
1)
1)
Test condition
Symbol
V
RRM
=
V
RWM
=
V
R
I
F
Value
70
200
1)
600
1)
200
1)
Unit
V
mA
mA
mW
t
p
< 1 s
I
FSM
P
tot
Device on fiberglass substrate, see layout on next page
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
stg
Value
500
1)
125
- 65 to + 125
Unit
K/W
°C
°C
Device on fiberglass substrate, see layout on next page
Document Number 85702
Rev. 1.7, 27-Sep-06
www.vishay.com
1
BAS70-00-V to BAS70-06-V
Vishay Semiconductors
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Reverse breakdown voltage
Leakage current
Forward voltage
Forward voltage
1)
Diode capacitance
Reverse recovery time
1)
Test condition
I
R
= 10
μA
(pulsed)
V
R
= 50
V
I
F
= 1.0 mA
I
F
= 15 mA,
V
R
= 0
V,
f = 1 MHz
I
F
= I
R
= 10 mA, i
R
= 1 mA,
R
L
= 100
Ω
Symbol
V
(BR)
I
R
V
F
V
F
C
D
t
rr
Min
70
Typ.
20
Max
100
410
1000
Unit
V
nA
mV
mV
pF
ns
1.5
2
5
Pulse test; t
p
≤
300
μs
Layout for R
thJA
test
Thickness:
Fiberglass 1.5 mm (0.059 in.)
Copper leads 0.3 mm (0.012 in.)
7.5 (0.3)
3 (0.12)
1 (0.4)
12 (0.47)
15 (0.59)
0.8 (0.03)
2 (0.8)
1 (0.4)
2 (0.8)
5 (0.2)
1.5 (0.06)
5.1 (0.2)
17451
www.vishay.com
2
Document Number 85702
Rev. 1.7, 27-Sep-06
BAS70-00-V to BAS70-06-V
Vishay Semiconductors

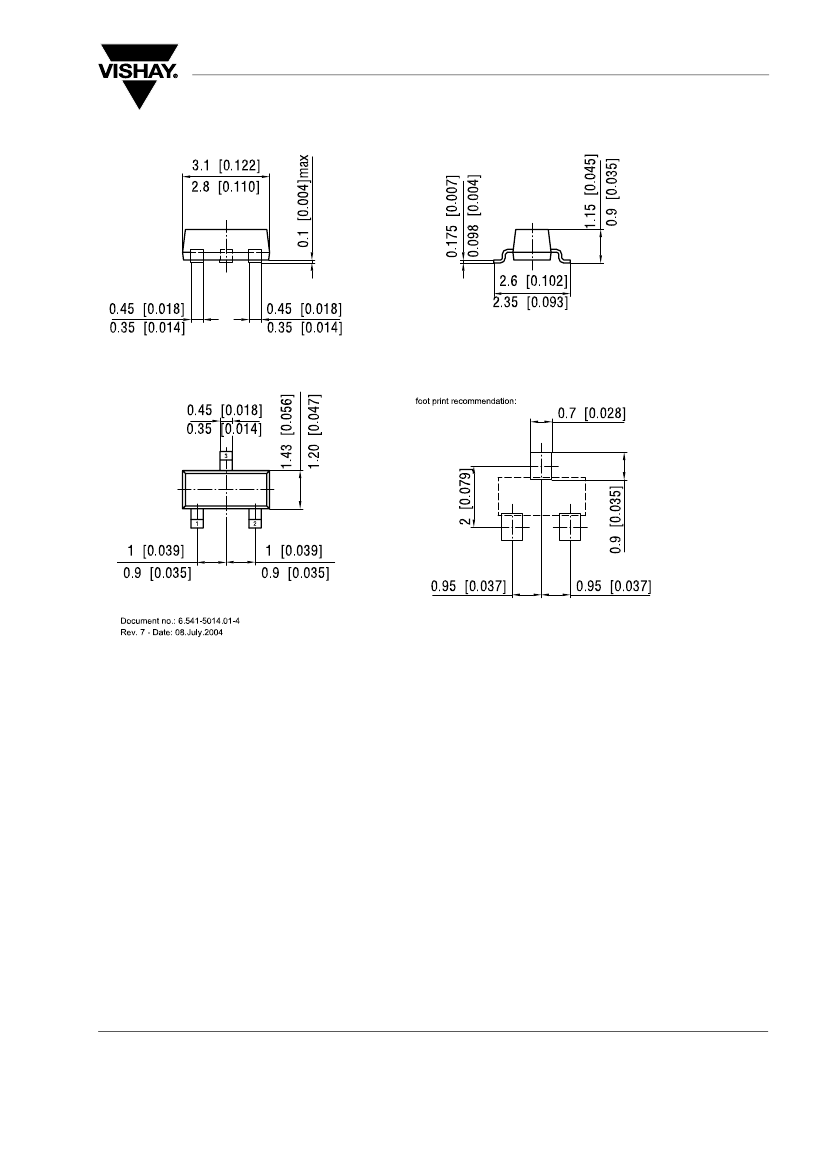

Package Dimensions in mm (Inches): SOT23
17418
Document Number 85702
Rev. 1.7, 27-Sep-06
www.vishay.com
3
BAS70-00-V to BAS70-06-V
Vishay Semiconductors
