UNISONIC TECHNOLOGIES CO., LTD
BAS70x
SCHOTTKY BARRIER
DIODES
DESCRIPTION
Planar Schottky barrier diodes encapsulated in the SOT-23
small plastic SMD package. Single diodes and dual diodes
with different pin configuration are available.
DIODE
FEATURES
* Low Turn-on voltage
* Fast switching
* Ultra-small surface mount package
* Also available in lead free version
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
BAS70L-AE3-R
BAS70G-AE3-R
BAS70AL-AE3-R
BAS70AG-AE3-R
BAS70CL-AE3-R
BAS70CG-AE3-R
BAS70SL-AE3-R
BAS70SG-AE3-R
Package
SOT-23
SOT-23
SOT-23
SOT-23
Pin Assignment
1
2
3
x
A
K
K1
K2
A2A1
A1
A2
K2K1
K1
A2
K2A1
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Note: Pin Assignment: A: Anode K: Cathode x:NC
www.unisonic.com.tw
Copyright © 2012 Unisonic Technologies Co., Ltd
1 of 3
QW-R601-017,C
BAS70x
DIODE CONFIGURATION AND SYMBOL
BAS70
3
2
1
n.c
DIODE
BAS70A
BAS70C
BAS70S
MARKING
BAS70
G0
GA
BAS70A
GC
BAS70C
GS
BAS70S
G: Halogen Free
L: Lead Free
G: Halogen Free
L: Lead Free
G: Halogen Free
L: Lead Free
G: Halogen Free
L: Lead Free
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R601-017,C
BAS70x
ABSOLUATE MAXIMUM RATINGS
(T
A
=25℃, unless otherwise specified)
PARAMETER
DIODE
SYMBOL
RATINGS
UNITS
DC Voltage
V
R
70
V
Forward Continuous Current
I
F
70
mA
Power Dissipation
P
D
200
mW
-55
~ +150
℃
Junction Temperature
T
J
℃
Storage Temperature
T
STG
-55 ~ +150
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
=25℃, unless otherwise specified)
PARAMETER
Reverse Breakdown Voltage
Reverse Voltage Leakage Current
Forward Voltage
Diode Capacitance
Reveres Recovery Time
SYMBOL
TEST CONDITIONS
BV
R
I
R
= 10μA
I
R
V
R
=50V
I
F
=1mA
V
F
I
F
=15mA
C
D
V
R
=0V, f=1MHz
I
F
=I
R
=10mA, I
RR
=0.1xI
R
,
t
RR
R
L
=100Ω
MIN
70
TYP
MAX
100
410
1000
2
5
UNIT
V
nA
mV
mV
pF
nS
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R601-017,C
BAS70x

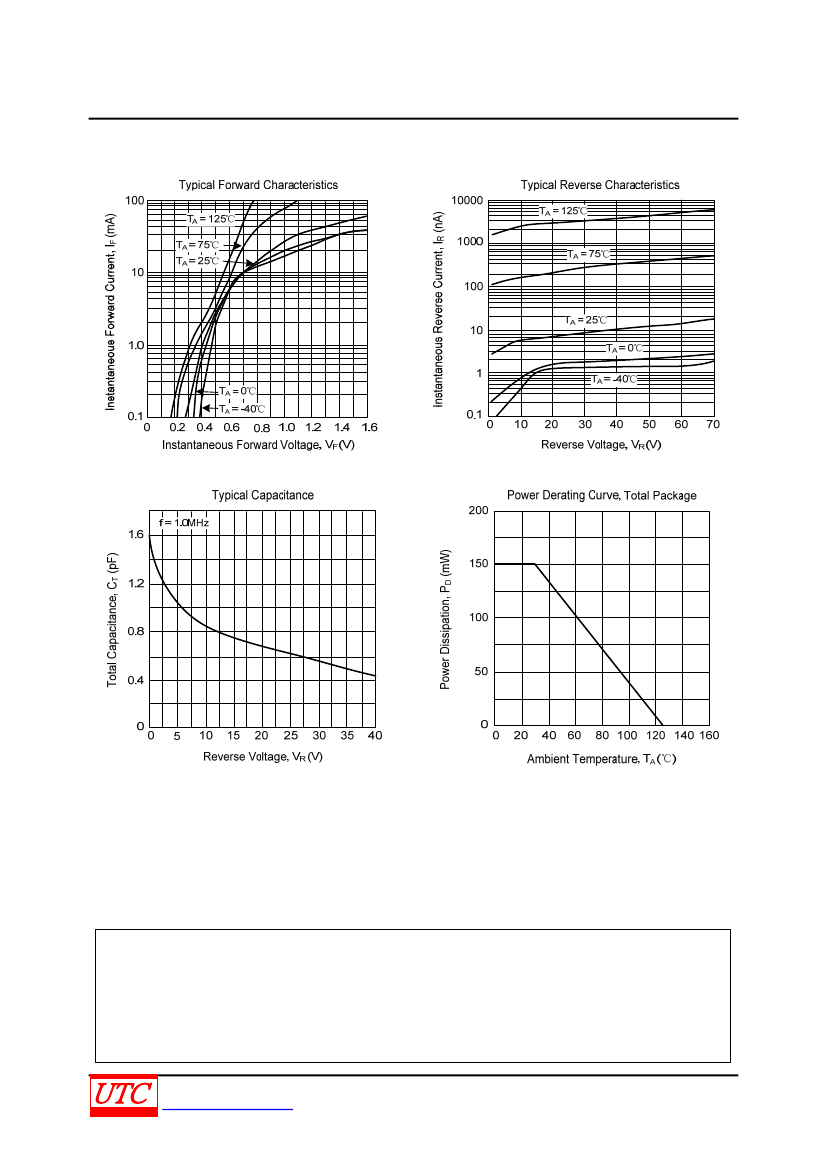

TYPICAL CHARACTERISTICS
DIODE
UTC assum es no responsibility for equipm ent failures that result from using products at v alues that
exceed, ev en m om entarily, rated v alues (such as m axim um ratings, operating condition ranges, or
other param eters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or system s where
m alfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The inform ation
presented in this docum ent does not form part of any quotation or contract, is believ ed to be accurate
and reliable and m ay be changed without notice.
