BAT42XV2-BAT43XV2 — Schottky Barrier Diodes
January 2010
BAT42XV2-BAT43XV2
Schottky Barrier Diodes
Features
•
•
•
•
•
•
•
Low Forward Voltage Drop
Flat Lead, Surface Mount Device at 0.60mm Height
Extremely Small Outline Plastic Package SOD523F
Moisture Level Sensitivity 1
Pb-free Version and RoHS Compliant
Matte Tin (Sn) Lead Finish
Green Mold Compound
Cathode
Anode
ELECTRICAL SYMBOL
BAT42XV2 Marking : 6B
BAT43XV2 Marking : 7B

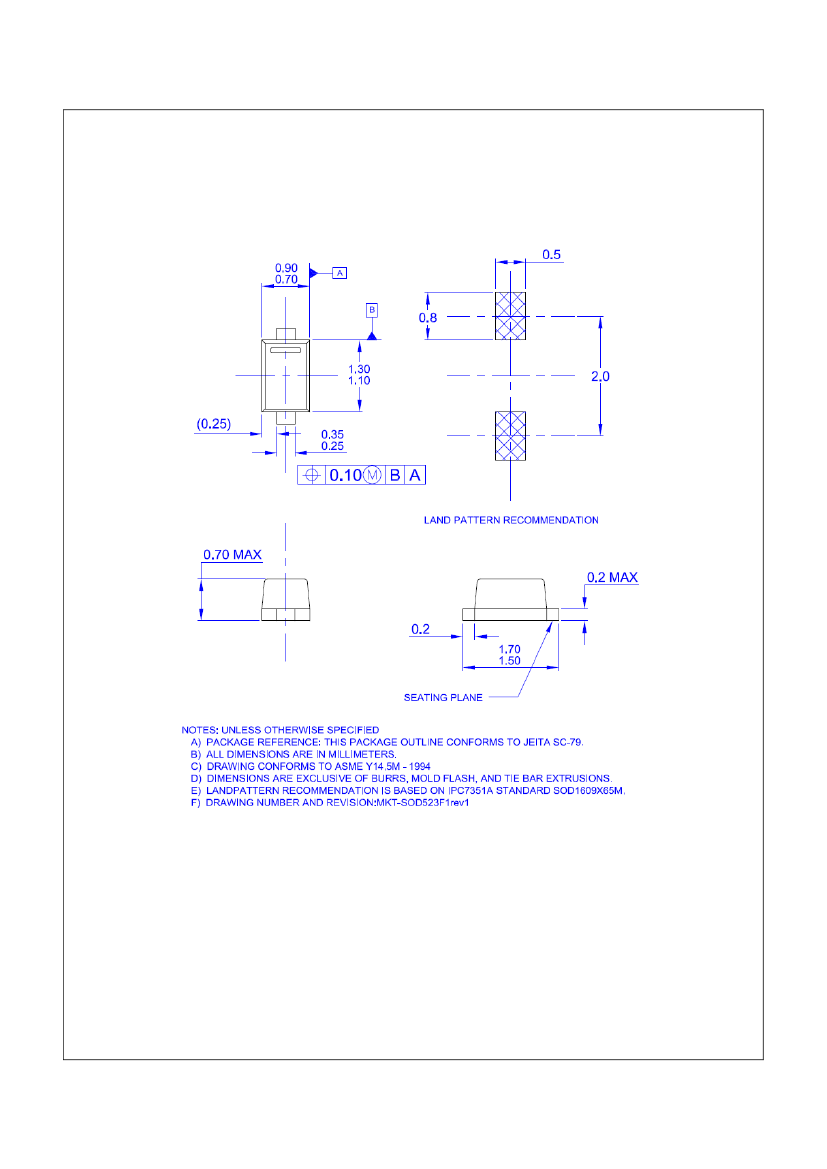

SOD-523F
Band Indicates Cathode
Absolute Maximum Ratings *
Symbol
V
RRM
V
R
I
F(AV)
I
FSM
T
J
T
STG
T
A
=25°C unless otherwise noted
Parameter
Maximum Repetitive Reverse Voltage
Maximum DC Blocking Voltage
Average Rectified Forward Current
Peak Forward Surge Current
Operating Junction Temperature
Storage Temperature Range
Value
30
30
200
4
+125
-65 to +125
Units
V
V
mA
A
°C
°C
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics
Symbol
P
D
R
θJA
T
A
=25°C unless otherwise noted
Parameter
Power Dissipation
Thermal Resistance, Junction to Ambient
Value
200
500
Units
mW
°C/W
* Device mounted on FR-4 PCB minimum land pad.
Electrical Characteristics
Symbol
BV
R
I
R
V
F
Breakdown Voltage
Reverse Leakage Current
Forward Voltage
T
A
=25°C unless otherwise noted
Parameter
Test Condition
I
R
=100μA
V
R
=25V
Min.
30
Typ.
Max.
500
0.40
0.65
0.33
0.45
1.0
Units
V
nA
BAT42XV2 I
F
=10mA
I
F
=50mA
BAT43XV2 I
F
=2mA
I
F
=15mA
BAT42XV2, BAT43XV2 I
F
=200mA
I
F
=I
R
=10mA
R
L
=100Ω
I
RR
=1mA
V
R
=1V, f=1MHz
1
0.26
V
T
RR
Reverse Recovery Time
5
nS
C
Capacitance
7
pF
www.fairchildsemi.com
© 2009 Fairchild Semiconductor Corporation
BAT42XV2-BAT43XV2 Rev. A1
