BAT46W-V
Vishay Semiconductors
Small Signal Schottky Diode
Features
• For general purpose applications
• This diode features very low turn-on volt-
e3
age and fast switching.
• This device is protected by a PN junction
guard ring against excessive voltage, such as
electrostatic discharges.
• This diode is also available in the DO35 case with
the type designation BAT46 and in the MiniMELF
case with the type designation LL46.
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
17431
Mechanical Data
Case:
SOD123 Plastic case
Weight:
approx. 10.3 mg
Packaging Codes/Options:
GS18/10 k per 13" reel (8 mm tape), 10 k/box
GS08/3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Part
BAT46W-V
Ordering code
BAT46W-V-GS18 or BAT46W-V-GS08
Type Marking
L6
Remarks
Tape and Reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Repetitive peak reverse voltage
Forward continuous current
Repetitive peak forward current
Surge forward current
Power dissipation
1)
1)
Test condition
T
amb
= 25 °C
t
p
< 1 s,
δ
< 0.5, T
amb
= 25 °C
t
p
< 10 ms, T
amb
= 25 °C
T
amb
= 65 °C
Symbol
V
RRM
I
F
I
FRM
I
FSM
P
tot
Value
100
150
1)
350
1)
750
1)
150
1)
Unit
V
mA
mA
mA
mW
Valid provided that electrodes are kept at ambient temperature
Document Number 85663
Rev. 1.3, 21-Nov-06
www.vishay.com
1
BAT46W-V
Vishay Semiconductors
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Junction temperature
Ambient operating temperature range
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
amb
T
stg
Value
300
1)
125
- 55 to + 125
- 55 to + 150
Unit
K/W
°C
°C
°C
Valid provided that electrodes are kept at ambient temperature
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Reverse breakdown voltage
Leakage current
2)
Test condition
I
R
= 100 µA (pulsed)
V
R
= 1.5 V
V
R
= 1.5 V, T
j
= 60 °C
V
R
= 10 V
V
R
= 10 V, T
j
= 60 °C
V
R
= 50 V
V
R
= 50 V, T
j
= 60 °C
V
R
= 75 V
V
R
= 75 V, T
j
= 60 °C
Forward voltage
2)
I
F
= 0.1 mA
I
F
= 10 mA
I
F
= 250 mA
Diode capacitance
V
R
= 0 V, f = 1 MHz
V
R
= 1 V, f = 1 MHz
2)
Symbol
V
(BR)
I
R
I
R
I
R
I
R
I
R
I
R
I
R
I
R
V
F
V
F
V
F
C
D
C
D
Min
100
Typ.
Max
0.5
5
0.8
7.5
2
15
5
20
250
450
1000
Unit
V
µA
µA
µA
µA
µA
µA
µA
µA
mV
mV
mV
pF
pF
10
6
Pulse test t
p
< 300 µs,
δ
< 2 %
Typical Characteristics
T
amb
= 25 °C, unless otherwise specified
I
F
- Forward Current (mA)
100
T
j
= 60 °C
I
R
- Reverse Leakage Current (µA)
1000
100
10
T
j
= 60 °C
10
25 °C
1
1
0.1
T
j
= 25 °C
0.1
0.01
0.01
0
0.2
18546
0.4
0.6
0.8
1
V
F
- Forward
Voltage
(V)
1.2
18547
0
20
40
60
80
100
V
R
- Reverse
Voltage
(V)
Figure 1. Typical Instantaneous Forward Characteristics
Figure 2. Typical Reverse Characteristics
www.vishay.com
2
Document Number 85663
Rev. 1.3, 21-Nov-06
BAT46W-V
Vishay Semiconductors
250
P
tot
- Power Dissipation (mW)
200
150
100
50
0
0
18548
200
50
100
150
T
amb
- Ambient Temperature (°C)
Figure 3. Admissible Power Dissipation vs. Ambient Temperature

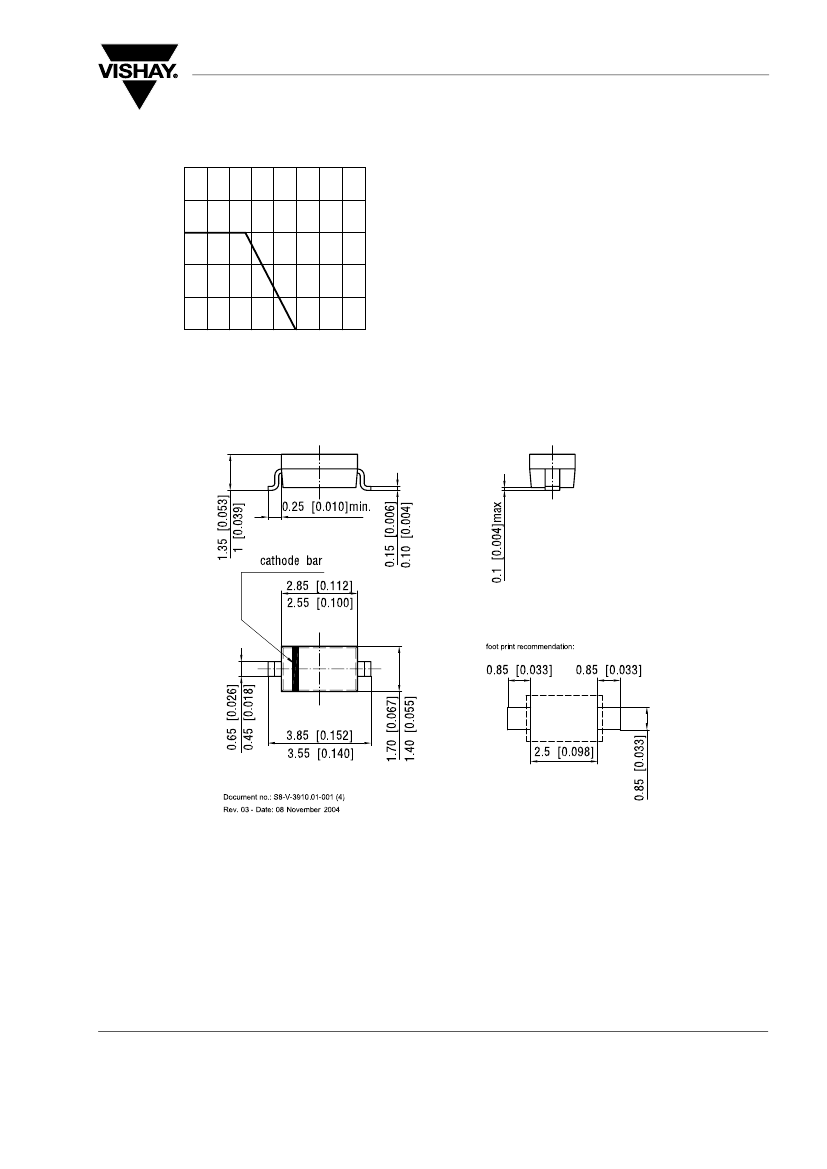

Package Dimensions in mm (Inches): SOD123
17432
Document Number 85663
Rev. 1.3, 21-Nov-06
www.vishay.com
3
BAT46W-V
Vishay Semiconductors
