BAT54CTB Overview

0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE

Preview

Download Datasheet

View All

UNISONIC TECHNOLOGIES CO., LTD

BAT54CTB

SCHOTTKY BARRIER (DUAL)

DIODES

DESCRIPTION

Planar Schottky barrier diodes are encapsulated in the SOT-523

small plastic SMD package. Single diodes and dual diodes with

different pin configuration are available.

DIODE

FEATURES

* Low forward voltage

* Guard ring protected

* Small plastic SMD package

SYMBOL

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

BAT54CTBL-AN3-R

BAT54CTBG-AN3-R

Note: Pin Assignment: A: Anode K: Cathode

Package

SOT-523

Pin Assignment

K2K1

Packing

Tape Reel

MARKING

E43

L: Lead Free

G: Halogen Free

www.unisonic.com.tw

1 of 3

QW-R601-051.A

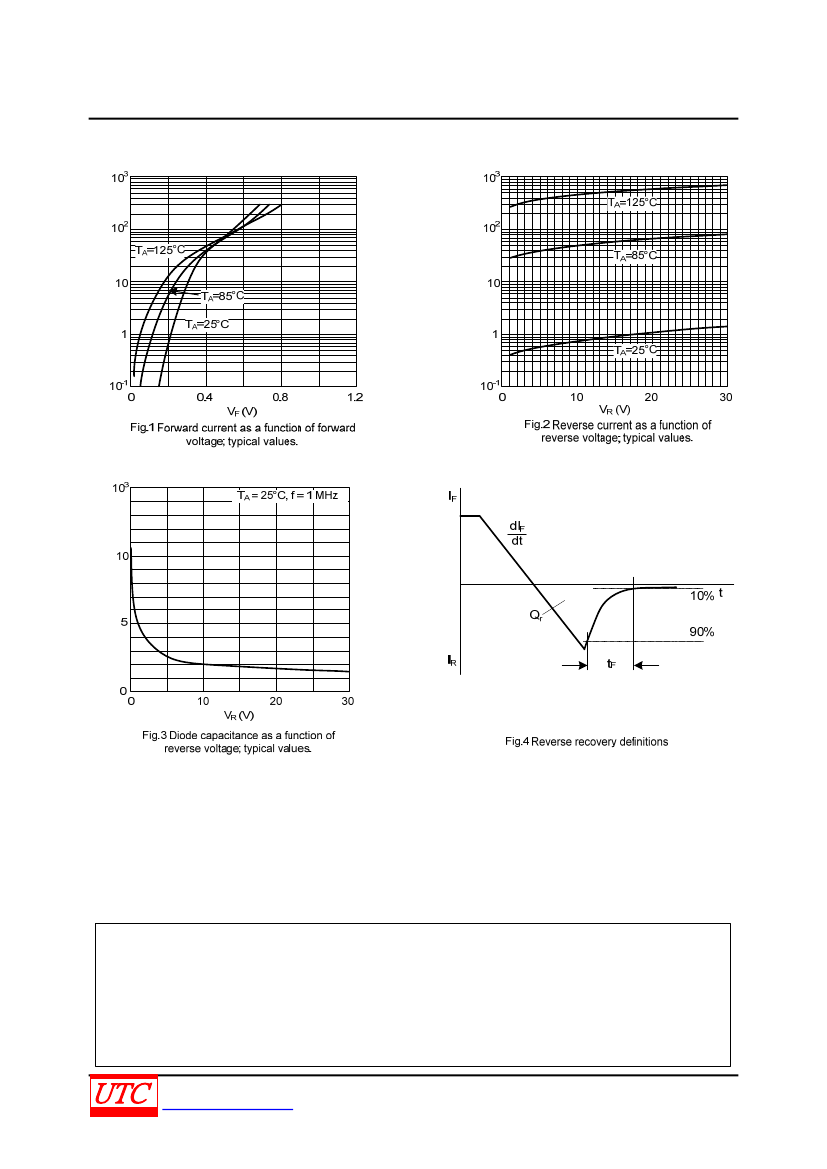

BAT54CTB Related Products

	BAT54CTB	BAT54CTBG-AN3-R	BAT54CTBL-AN3-R
Description	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Is it Rohs certified?	-	conform to	conform to
Maker	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	-	R-PDSO-G3	R-PDSO-G3
Contacts	-	3	3
Reach Compliance Code	-	compli	compli
ECCN code	-	EAR99	EAR99
application	-	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	-	SILICON	SILICON
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	-	0.8 V	0.8 V
JESD-30 code	-	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	-	0.6 A	0.6 A
Number of components	-	2	2
Phase	-	1	1
Number of terminals	-	3	3
Maximum operating temperature	-	125 °C	125 °C
Maximum output current	-	0.2 A	0.2 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	-	0.23 W	0.23 W
Maximum repetitive peak reverse voltage	-	30 V	30 V
Maximum reverse current	-	2 µA	2 µA
Maximum reverse recovery time	-	0.005 µs	0.005 µs
Reverse test voltage	-	25 V	25 V
surface mount	-	YES	YES
technology	-	SCHOTTKY	SCHOTTKY
Terminal form	-	GULL WING	GULL WING
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
