10119187-J0J-84BLF datasheet, PDF

10119187-J0J-84BLF: DescriptionBoard Connector, 24 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator; CategoryThe connector The connector; File Size2MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

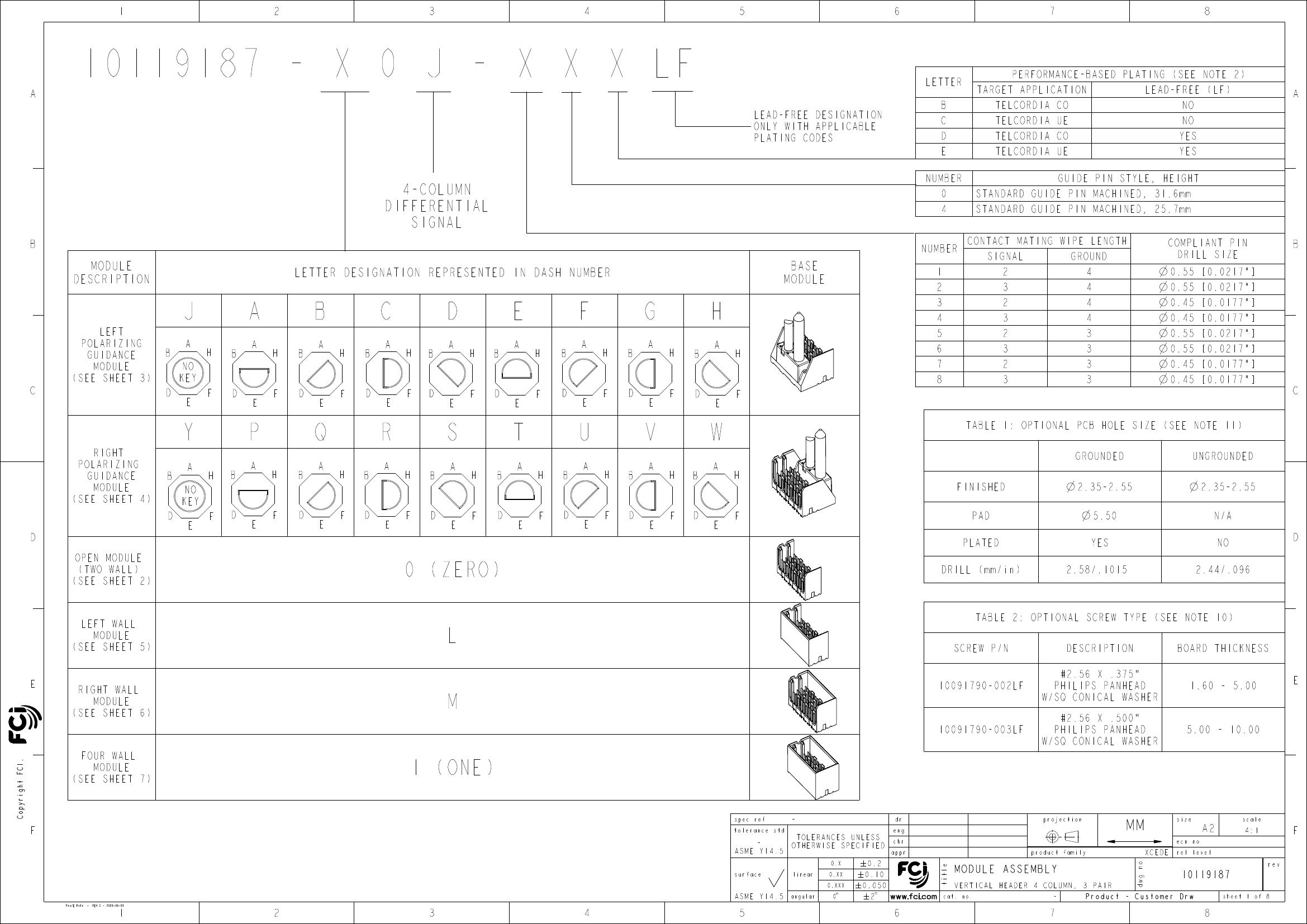

10119187-J0J-84BLF Overview

Board Connector, 24 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.764 inch
subject depth	0.528 inch
body length	0.539 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	55 mΩ
Contact style	BLADE PIN-SKT
maximum insertion force	.6394 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
Manufacturer's serial number	10119187
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB contact pattern	STAGGERED
polarization key	POLARIZED KEY
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.059 inch
Termination type	PRESS FIT
Total number of contacts	24
Evacuation force-minimum value	.14734 N

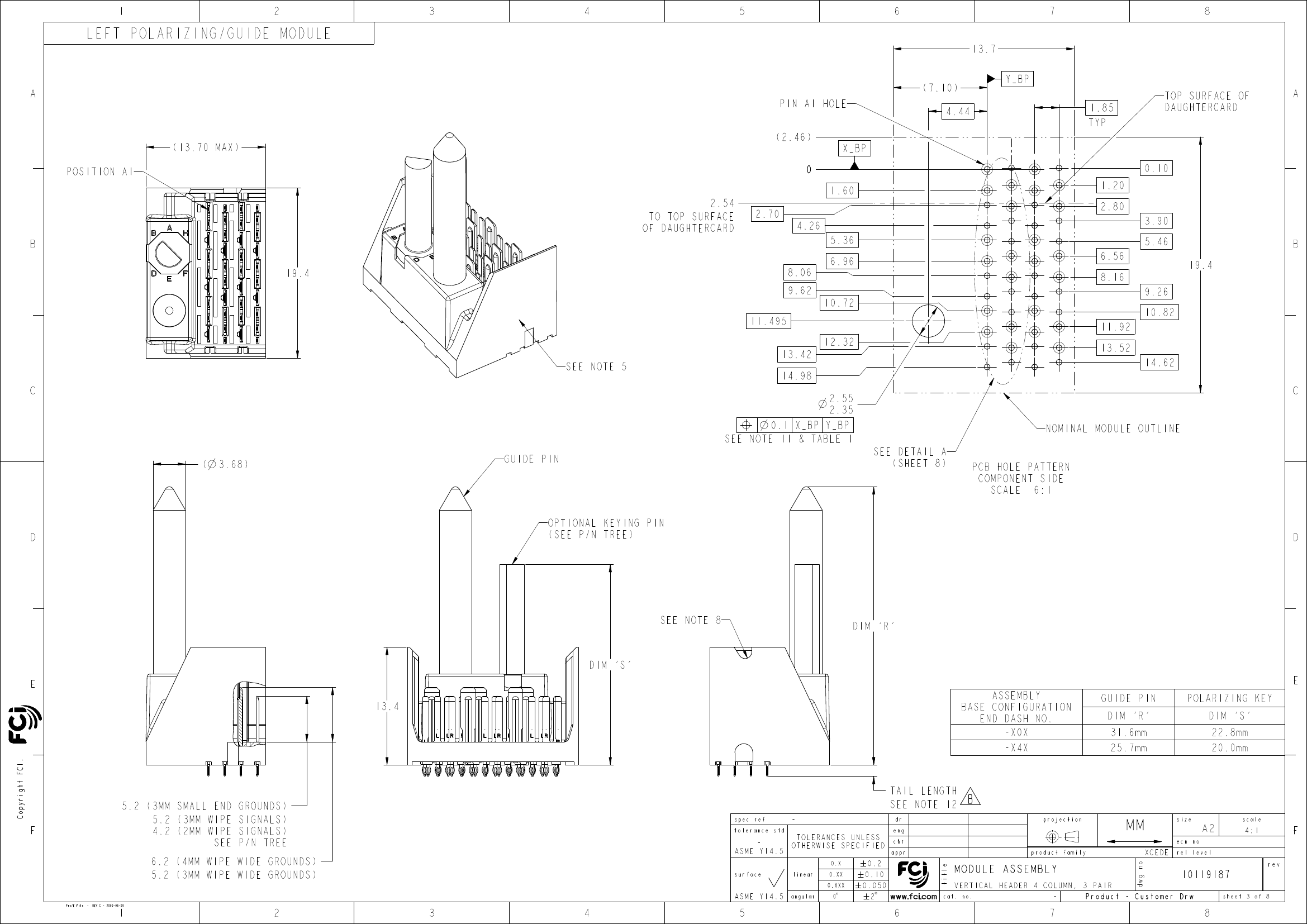

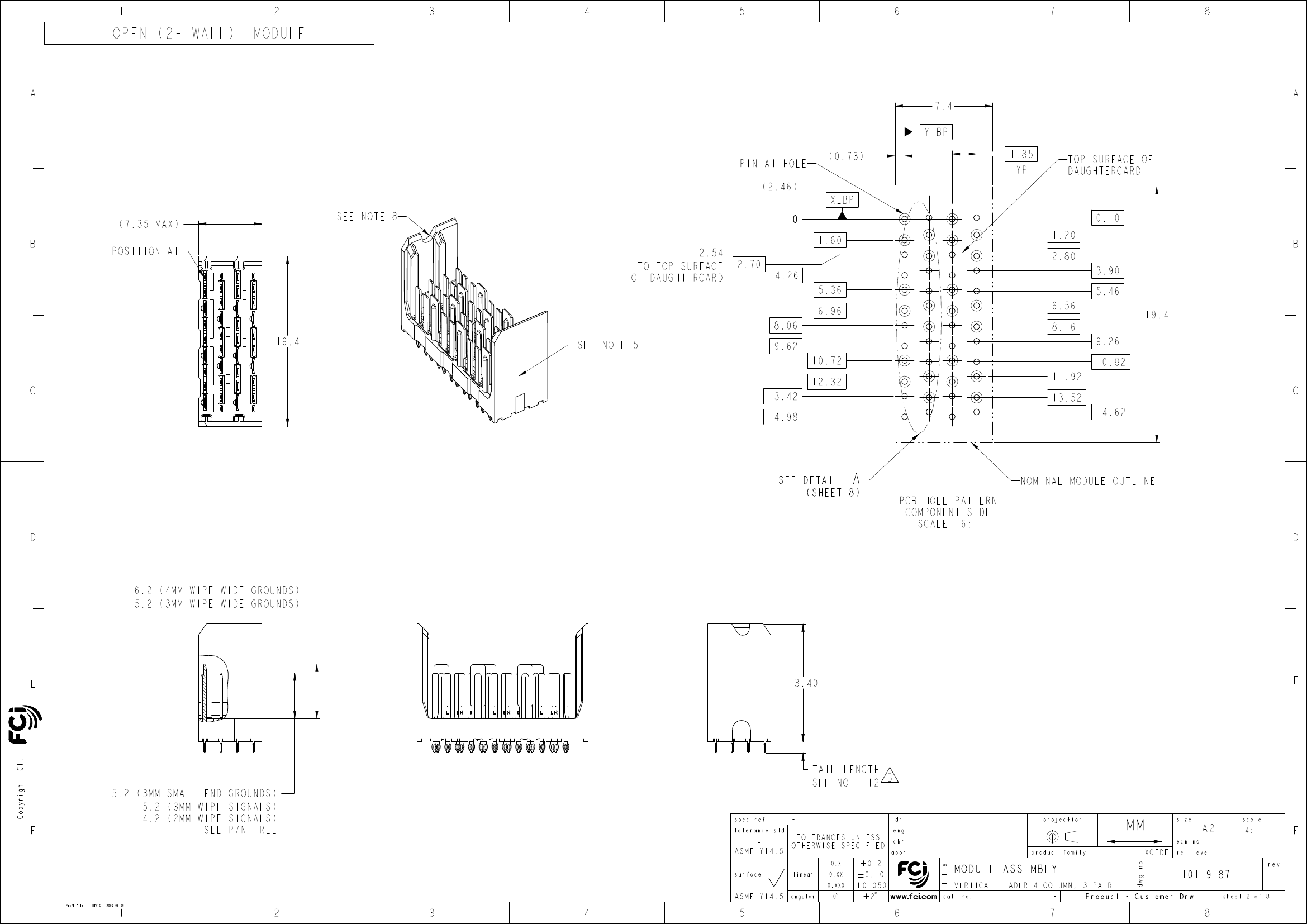

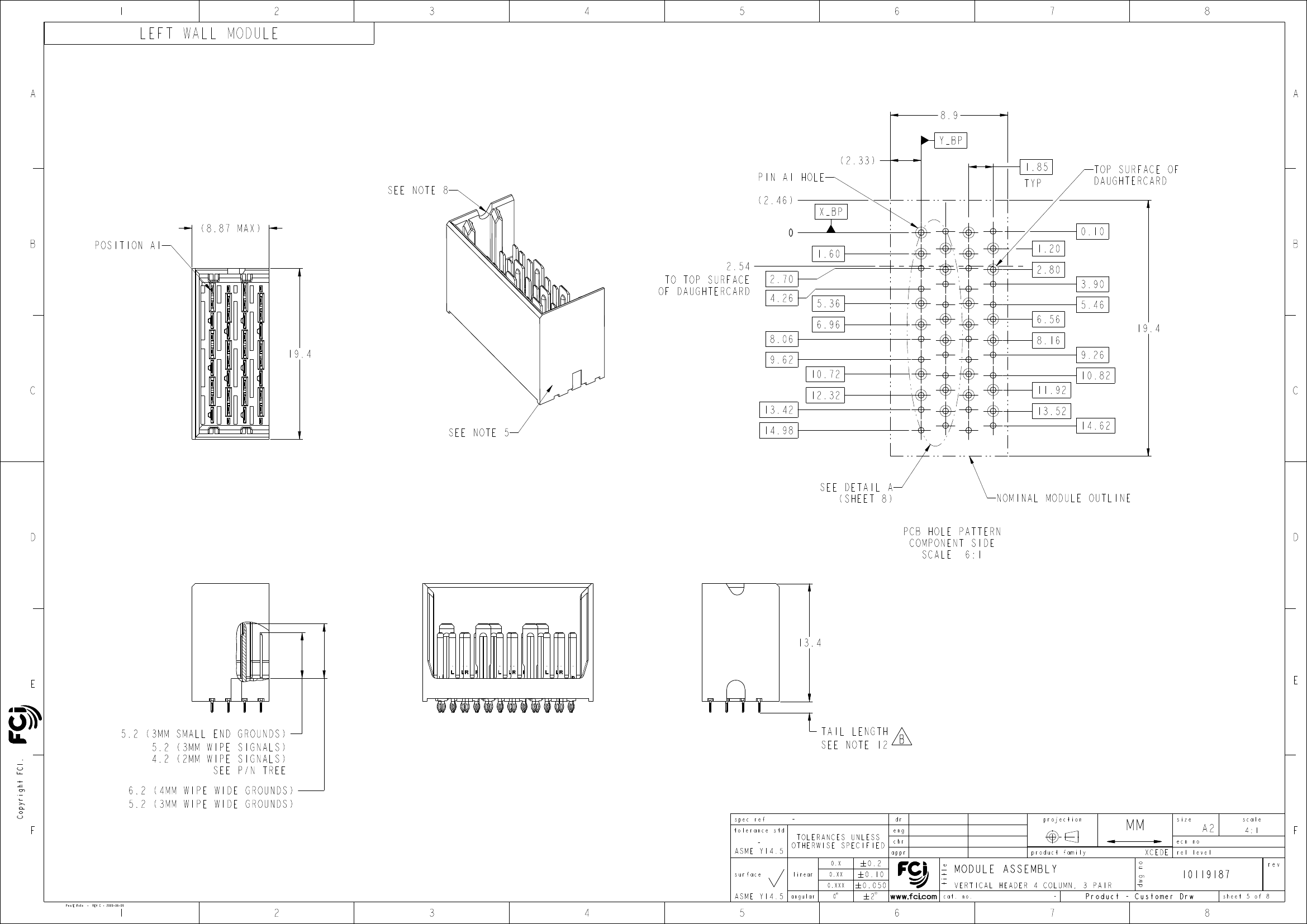

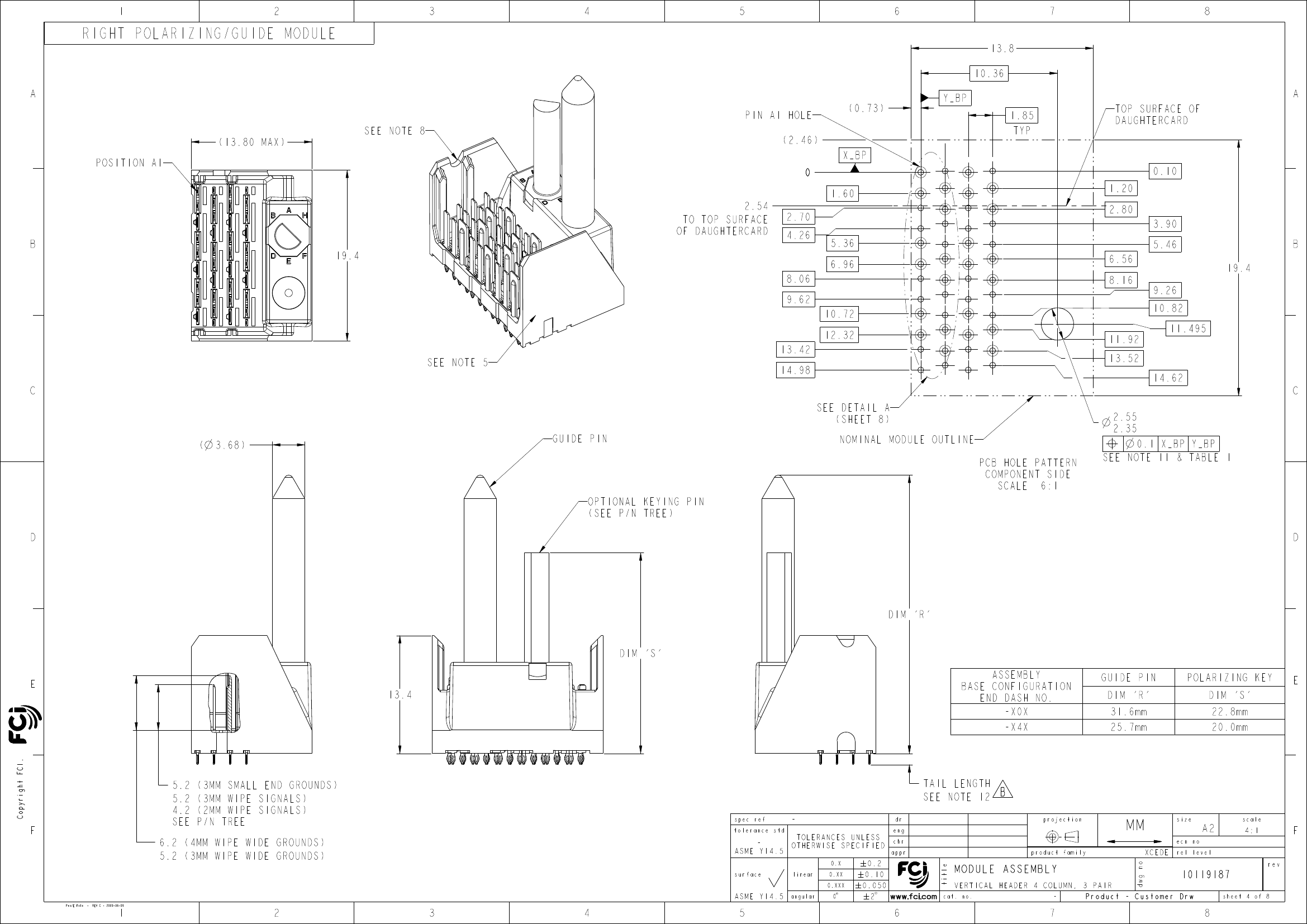

Roger Ng

Sandar Soe

Chen-Hong Tan

2011/11/22

2014/10/02

2014/12/10

ELX-S-18843-1

Released

PDS: Rev :B

STATUS:Released

Printed: Dec 10, 2014
