BAV99DW
Surface Mount Fast Switching Diodes
SOT-363
Features
Fast switching speed.
For general purpose switching application.
Ultra-small surface mount package.
High conductance.
Two “BAV99”circuits in one package.
Applications
For general purpose switching application.
Dimensions in inches and (millimeters)
Ordering Information
Type No.
BAV99DW
Marking
KJG
Package Code
SOT-363
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
Characteristic
Non-repetitive peak reverse voltage
Peak repetitive reverse voltage
Working peak reverse voltage
DC reverse voltage
RMS Reverse voltage
Forward continuous current
Non-repetitive peak forward surge current
@t=1.0μs
@t=1.0ms
@t=1.0s
Power Dissipation
Thermal Resistance, Junction to Ambient
Junction and Storage Temperature
Value
100
Unit
V
75
V
53
215
V
mA
I
FSM
2.0
1.0
0.5
200
417
-65 to+150
A
P
D
R
θJA
T
j,
T
stg
mW
℃/W
℃
http://www.luguang.cn
mail:lge@luguang.cn
BAV99DW
Surface Mount Fast Switching Diodes
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Reverse breakdown voltage
Symbol
V
(BR)R
Test conditions
I
R
=2.5μA
I
F
=1.0mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=0V,f=1.0MHz
I
F
=I
R
=10mA,I
rr
=0.1*I
R
,
R
L
=100Ω
MIN
75
MAX
-
0.715
0.855
1.0
1.25
2.0
4.0
UNIT
V
Forward voltage
V
F
-
V
Junction Capacitance
Reverse Recovery time
C
J
t
rr
-
-
pF
ns

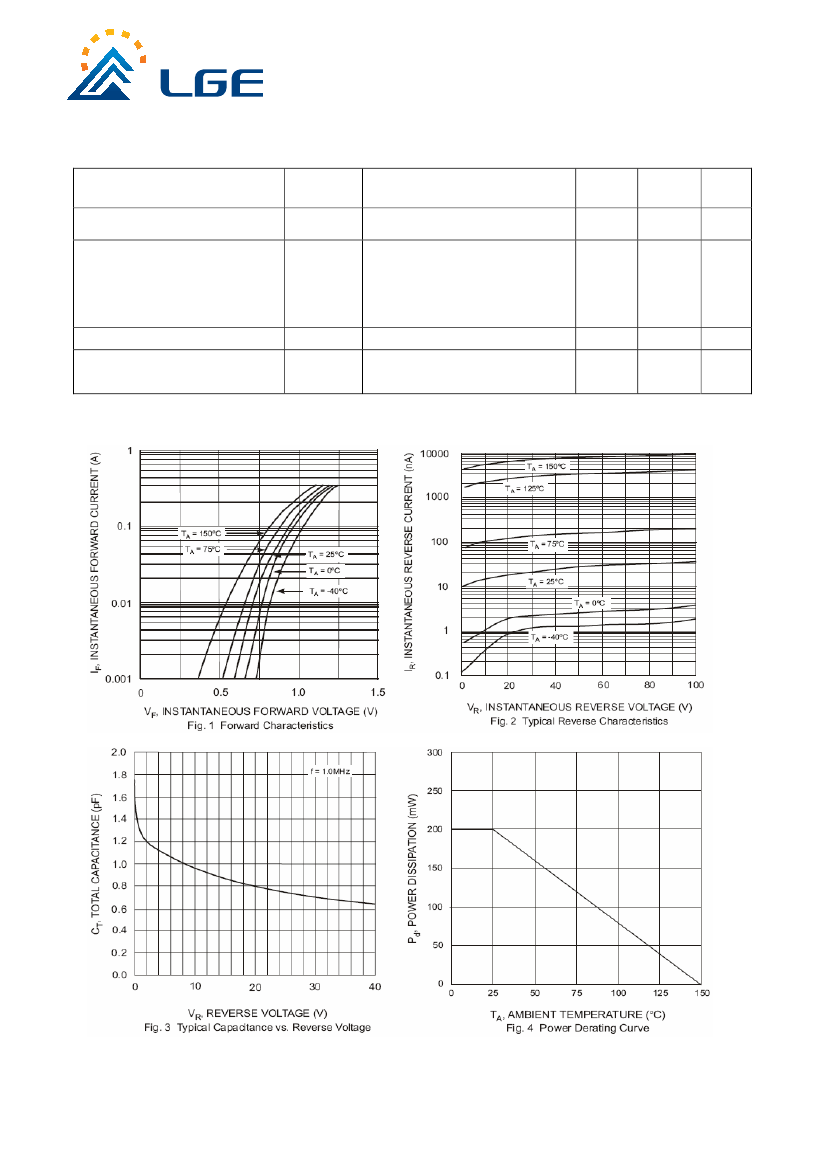

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
