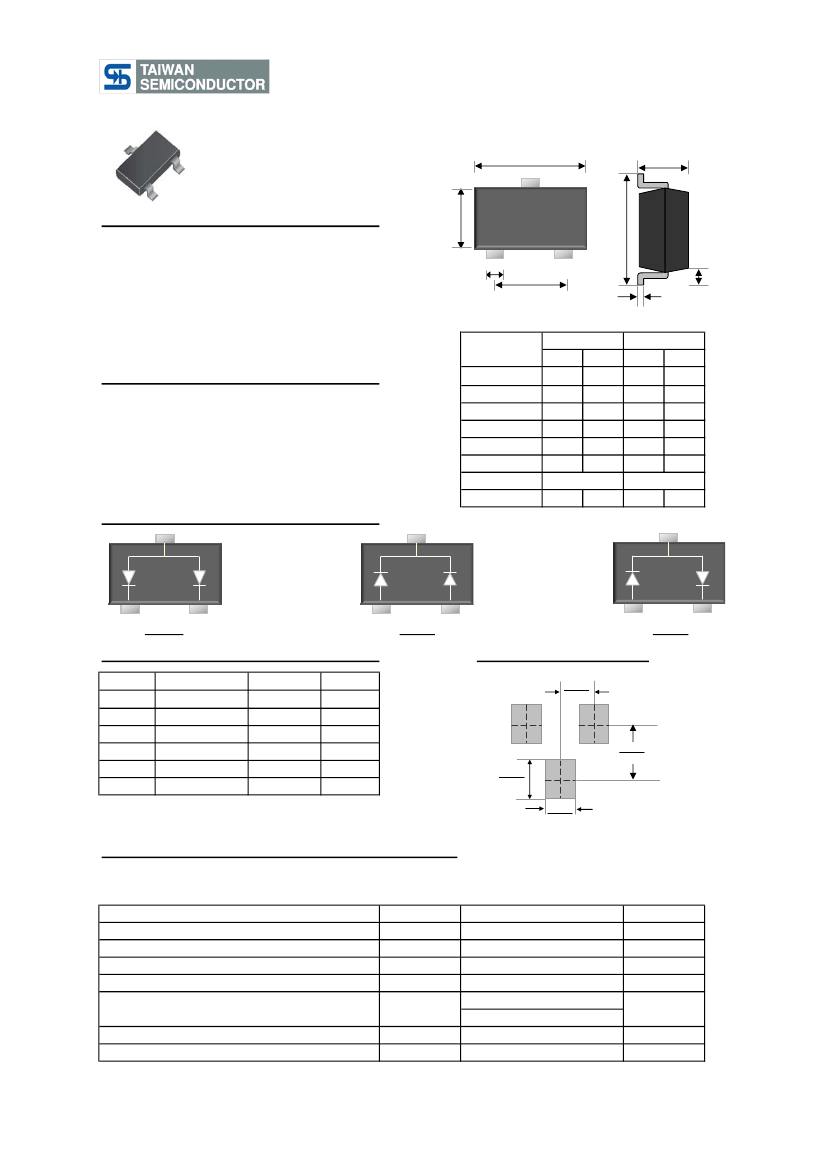

BAW56, BAV70, BAV99
225mW SMD Switching Diode
Small Signal Diode
SOT-23
A
F
Features
Fast switching speed
Surface device type mounting
Moisture sensitivity level 1
Matte Tin(Sn) lead finish with Nickel(Ni) underplate
Pb free version and RoHS compliant
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
B
E
C
D
H
G
Dimensions
A
B
C
D
E
F
G
H
Unit (mm)
Min
2.80
1.20
0.30
1.80
2.25
0.90
0.08
Max
3.00
1.40
0.50
2.00
2.55
1.20
0.19
Unit (inch)
Min
0.110
0.047
0.012
0.071
0.089
0.035
0.003
Max
0.118
0.055
0.020
0.079
0.100
0.047
0.010
Mechanical Data
Case :SOT-23 small outline plastic package
Terminal: Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
High temperature soldering guaranteed: 260°C/10s
Weight : 0.008gram (approximately)
Marking Code : A1,A4,A7
0.550 REF
0.022 REF
Pin Configuration
BAW56
BAV70
BAV99
Ordering Information
Package
Part No.
Packing
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
Marking
A1
A4
A7
A1
A4
A7
SOT-23 BAW56 RF
SOT-23 BAV70 RF
SOT-23 BAV99 RF
SOT-23 BAW56 RFG
SOT-23 BAV70 RFG
SOT-23 BAV99 RFG
Suggested PAD Layout
0.95
0.037
2.0
0.079
0.9
0.035
0.8
0.031
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Repetitive Peak Reverse Voltage
Repetitive Peak Forward Current
Mean Forward Current
Non-Repetitive Peak Forward
Surge Current
Pulse Width=1 sec
Pulse Width=1
μsec
Symbol
P
D
V
RRM
I
FRM
I
O
I
FSM
RθJA
T
J
, T
STG
Value
225
70
450
200
0.5
2
357
-55 to + 150
Units
mW
V
mA
mA
A
°C/W
°C
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
Version : F10
BAW56, BAV70, BAV99
225mW SMD Switching Diode
Small Signal Diode
Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Type Number
Reverse Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Junction Capacitance
Reverse Recovery Time
I
R
=
I
F
=
I
F
=
V
R
=
100μA
50mA
150mA
70V
Symbol
V
(BR)
V
F
I
R
C
J
Trr
Min
70
-
-
-
-
-
Max
-
1.00
1.25
2.50
1.5
6.0
Units
V
V
V
μA
pF
ns
V
R
= 0V, f=1.0MHz
I
F
=I
R
=10mA, R
L
=100Ω, I
RR
=1mA

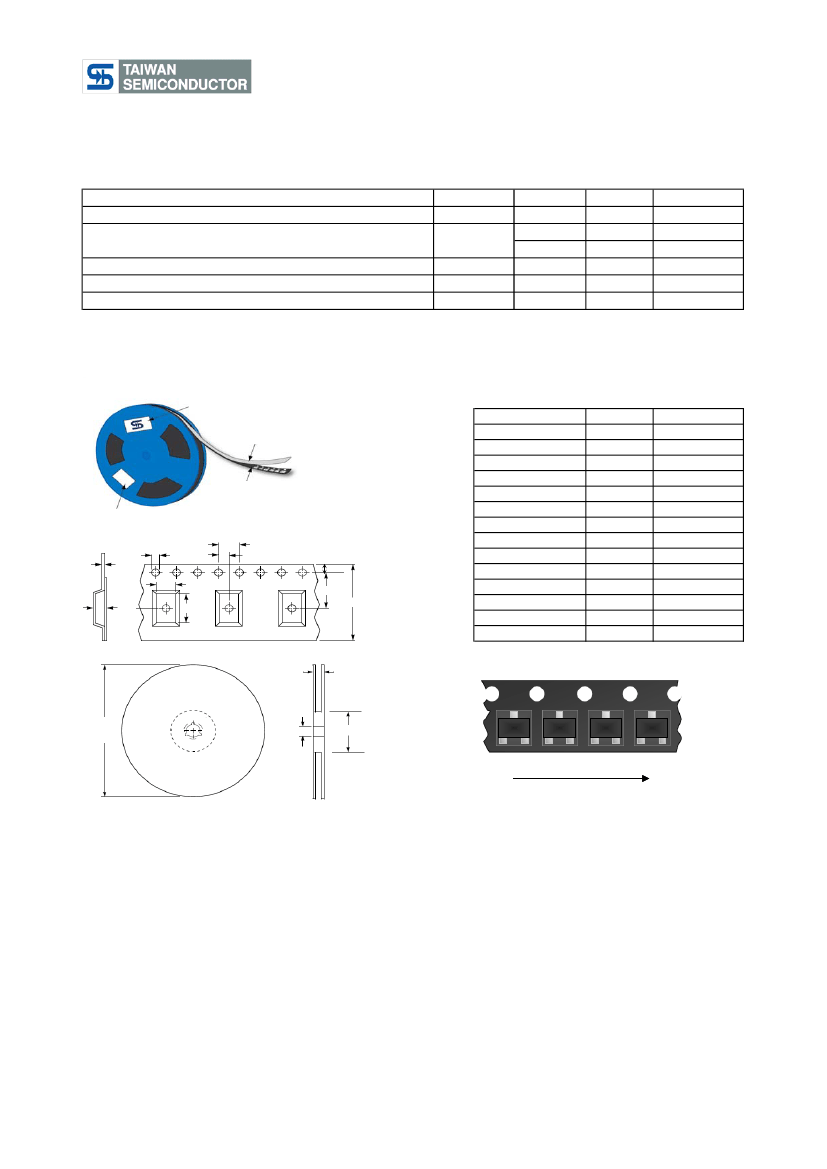

Tape & Reel specification
TSC label
Top Cover Tape
Carieer Tape
Any Additional Label (If Required)
P0
d
T
A
C
B
F
W
P1
E
Item
Carrier width
Carrier length
Carrier depth
Sprocket hole
Reel outside diameter
Reel inner diameter
Feed hole width
Sprocke hole position
Punch hole position
Sprocke hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
Symbol
A
B
C
d
D
D1
D2
E
F
P0
P1
T
W
W1
Dimension(mm)
3.15 ±0.10
2.77 ±0.10
1.22 ±0.10
1.50 ± 0.10
178 ± 1
55 Min
13.0 ± 0.20
1.75 ±0.10
3.50 ±0.05
4.00 ±0.10
2.00 ±0.05
0.229 ±0.013
8.10 ±0.20
12.30 ±0.20
W1
D
D2
D1
Direction of Feed
Version : F10
BAW56, BAV70, BAV99
225mW SMD Switching Diode
Small Signal Diode
Rating and Characteristic Curves
FIG 1 Typical Forward Characteristics
Instantaneous Forward Current (mA)
1000
10000
100
FIG 2 Leakage Current vs Junction
Temperature.
VR=20V
Typical
Ta=25°C
10
Reverse Current (nA)
2
1000
1
100
0.1
10
0.01
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
1
0
20
40
60
80
100 120 140 160 180 200
Instantaneous Forward Voltage (V)
Junction Temperature (
o
C)
FIG 3 Power Dissipation Derating Curve
250
Power Dissipation (mW)
200
150
100
50
0
0
25
50
75
100
125
150
175
Ambient Temperature (°C)
Version : F10
