UM7000 / UM7100 / UM7200
TM
®
HIGH POWER PIN DIODES
RoHS Compliant Versions Available
DESCRIPTION
The UM7000 and UM7100 series offer moderately high power handling in
combination with reasonably low levels of both series resistance and
capacitance. The UM7200 series offers the lowest series resistance, but the
highest capacitance of the group. The differences in specified performance
for each of the series, results from different I-region thickness. The three
series have broad applicability in many RF and microwave switch and
attenuator circuits. Additionally, the UM7100 in leaded versions is usually the
most cost-effective diode choice in high volume usage.
KEY FEATURES
Voltage ratings to 1000V (UM7000)
www.MICROSEMI.com
Average power dissipation to 10 W
Series resistance as low as 0.25
Ω
Carrier lifetime greater than 2.5 µs
Low capacitance
Low conductance (High R
P
)
Compatible with automated
assembly
RoHS compliant packaging
1
Available
(Use UMX7202B, etc.)
1
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
www.MICROSEMI.com
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Package
A
B
E
C
D
SM
O
The UM7000 series of products can be
supplied with a RoHS compliant finish
(UMX7000) or with a 90/10 Sn/Pb finish.
Stud Packages C/CR/D/DR are supplied
with a RoHS complaint Gold finish
Consult factory for details.
Conditions
25 C Pin Temperature
½ in. total length to 25 C
Contact Free Air
25 C Stud Temperature
25 C Stud Temperature
25 C End Cap Temperature
O
O
O
(P
D
) Power
Dissapation
(W)
10
5.5
1.5
10
7.5
8
(
Θ
)Thermal
Resistance
(
O
C/W)
15V
27.5
APPLICATIONS/BENEFITS
Isolated stud package available
Surface mount package available
Soldering temperature:
o
260 C for 10 seconds
maximum
O
15
20
17
UM700/UM7100/UM7200
UM700/UM7100/UM7200
ALL
1 us pulse (Single)
100KW
60 kW
35 kW
20 kW
ALL
ALL
Storage Temperature (T
OP
)
Operating Temperature (T
OP
)
-65
O
C to + 175
O
C
-65
O
C to + 175
O
C
Copyright
2006
Rev.: 2009-01-19
Microsemi
Microwave Products
Page
1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
UM7000 / UM7100 / UM7200
TM
®
HIGH POWER PIN DIODES
RoHS Compliant Versions Available
.
VOLTAGE RATINGS
@ 25C (unless otherwise specified)
Part Number
Reverse Voltage @ 10uA (V)
UM7001
UM7101
UM7201
100
UM7002
UM7102
UM7202
200
-
UM7104
UM7204
400
UM7006
-
-
600
-
UM7108
-
800
UM7010
-
-
1000
www.MICROSEMI.com
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
Parameter
Symbol
Conditions
UM7000
Reverse Current (Max)
Series Resistance(Max)
Capacitance (Max)
Parallel Resistance(Min)
Carrier Lifetime(Min)
I-Region Width (Min)
I
R
R
S
C
T
R
P
T
L
W
At rated voltage
I
F
= 100 mA, F= 100 MHz
V
R
= 100 V, F = 1 MHz
V
R
= 100 V, F = 100 MHz
I
F
= 10 mA
-
10
1.0
0.9
200k
2.5
150
UM7100
10
0.6
1.2
150k
2.0
80
UM7200
10
0.25
2.2
70k
1.5
40
Units
uA
Ohm
pF
Ohms
uS
um
See following pages for performance graphs and mechanical data.
ELECTRICALS
ELECTRICALS
Copyright
2006
Rev.: 2009-01-19
Microsemi
Microwave Products
Page
2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
UM7000 / UM7100 / UM7200
TM
®
HIGH POWER PIN DIODES
RoHS Compliant Versions Available
www.MICROSEMI.com

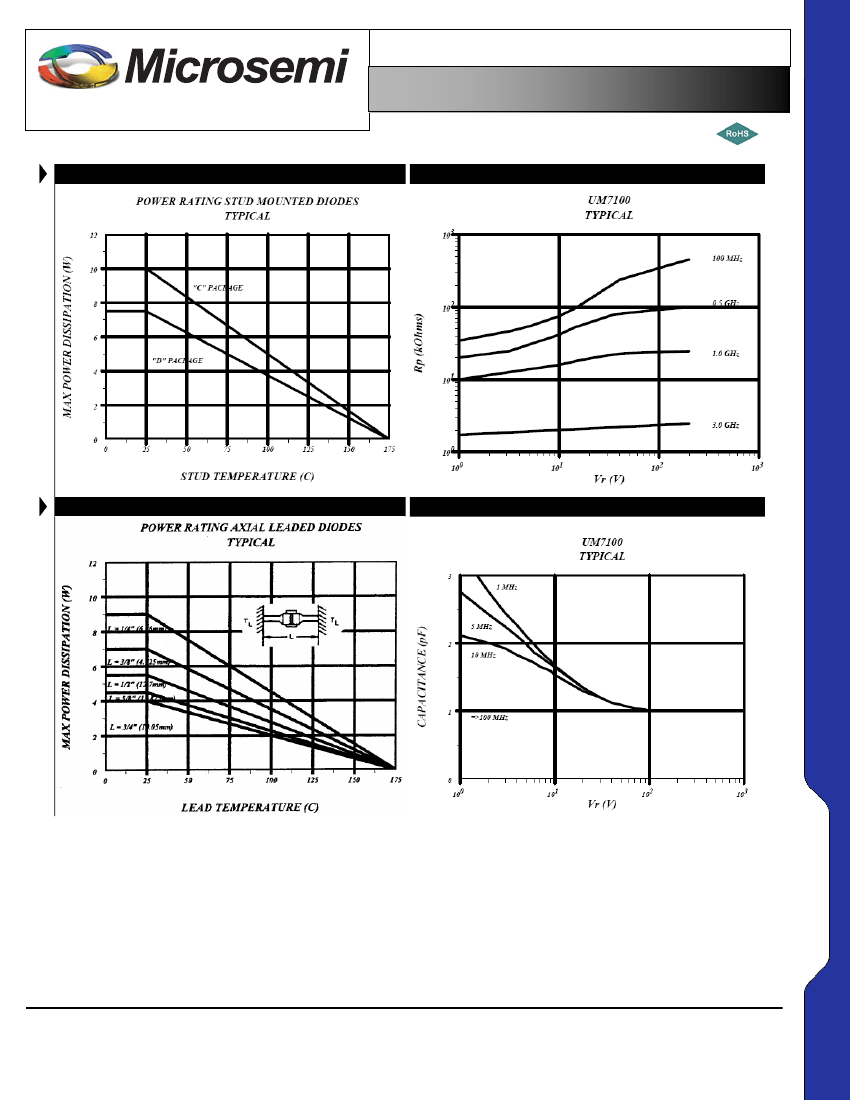

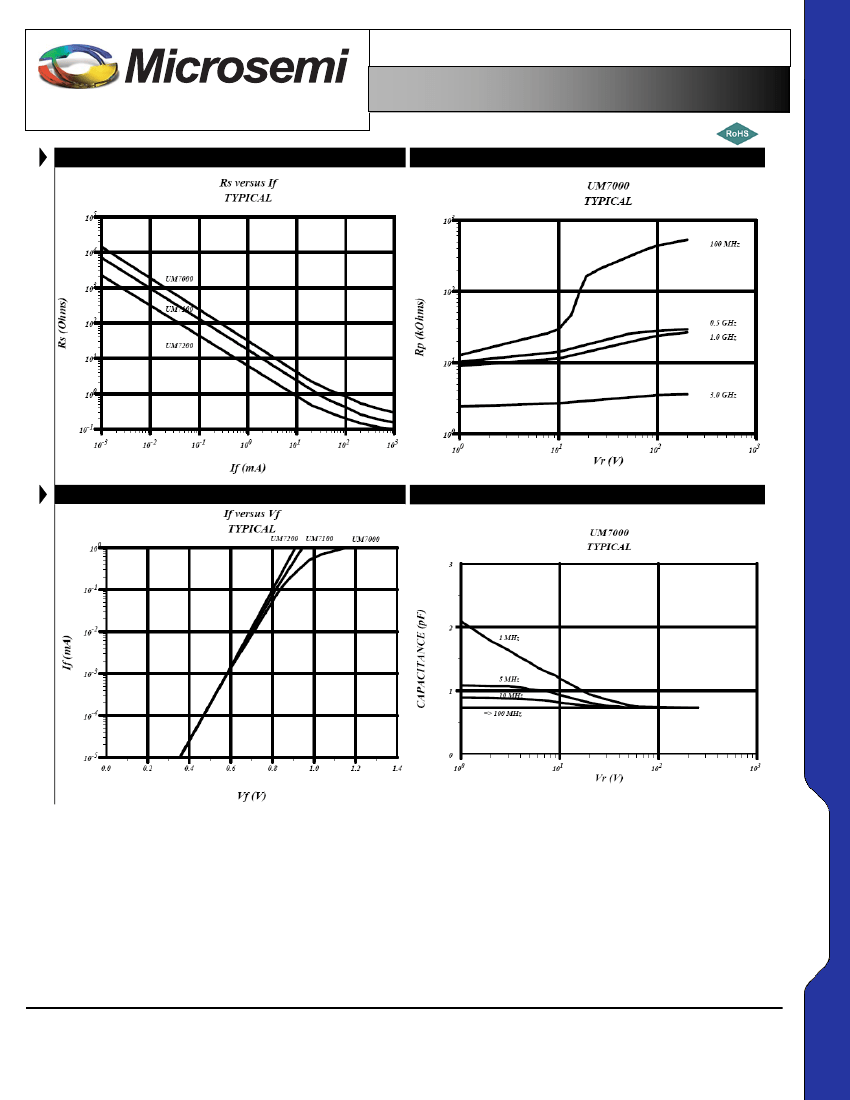

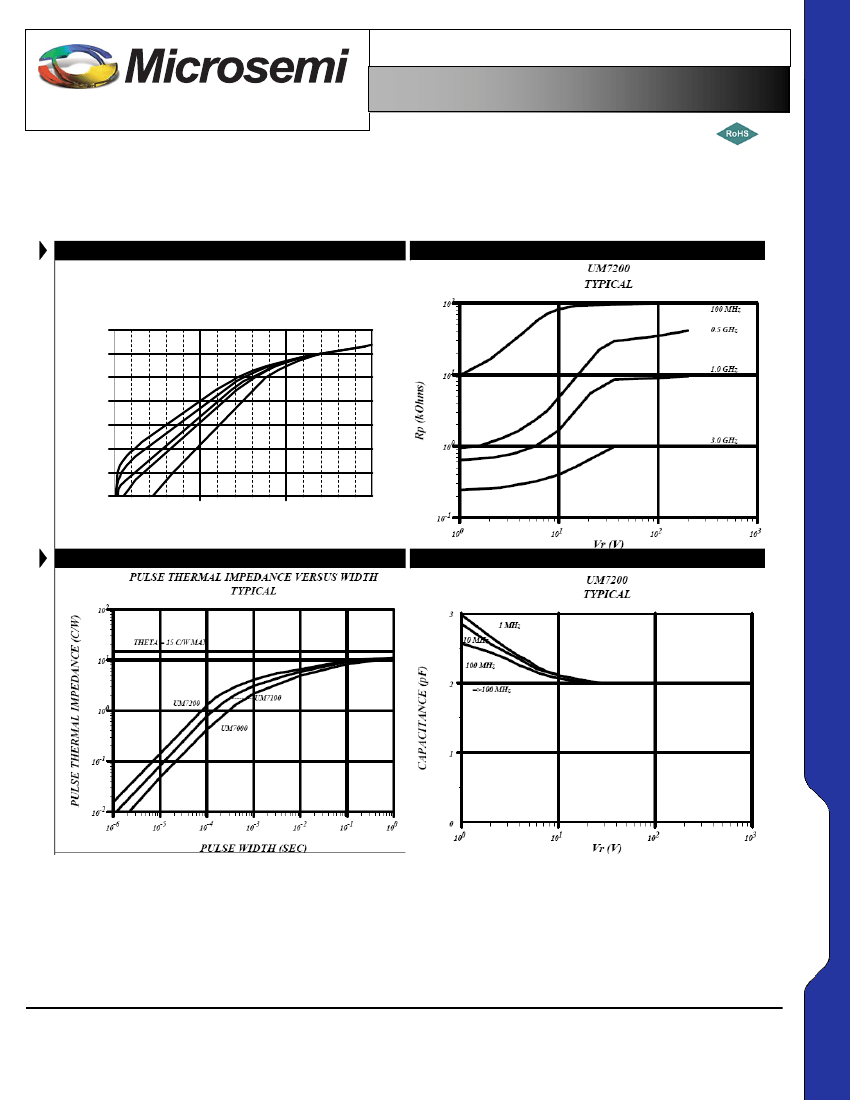

I/V VS TEMP
TYPICAL RP VS VOLTAGE
MEAN If VERSUS Vf CURVE VERSUS TEMPERATURE
TYPICAL
10
1
100
10-1
10-2
10-3
10-4
10-5
10-6
0.0
0.5
1.0
1.5
150C------------
---------------125C
If (A)
---------------100C
--------------75C
-----25C
Vf (V)
THERMAL IMPEDANCE
CAPACITANCE VS VOLTAGE
GRAPHS
GRAPHS
Copyright
2006
Rev.: 2009-01-19
Microsemi
Microwave Products
Page
5
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
