8D1-23F35PB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D1-23F35PB

8D1-23F35PB: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size451KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D1-23F35PB Overview

MIL Series Connector,

8D1-23F35PB Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

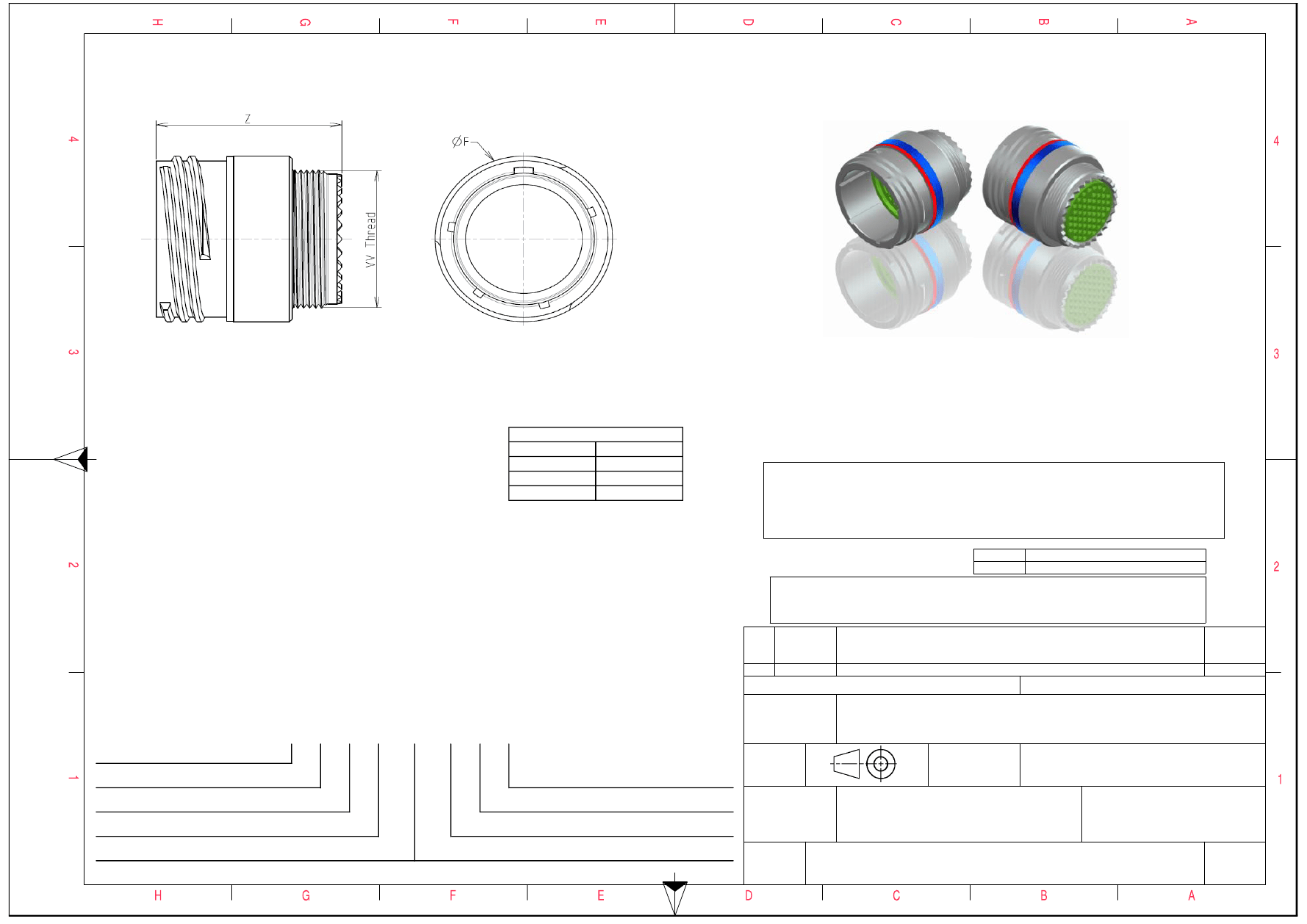

J10

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

38.1 Max

31.5 Max

VV THREAD

M34x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

: -65°C to +200°C

: 48 hours

PN: 8D123F35PB

ISS

26-09-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : In line Receptacle

CONTACT TYPE

SHELL SIZE : 23

PLATING

F =

Nickel

: Standard Crimp Contact

ORIENTATION : B

CONTACT TYPE : PIN(500 Matings)

CONTACT LAYOUT : 23-35

FORMAT

Aluminium Inline plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D123F35PB-C

SHEET

1/2
