BD3473KS2: Description7.1ch Sound Processors with Built-in Mode and Input Selectors; CategoryOther integrated circuit (IC) Consumption circuit; File Size4MB，25 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD3473KS2 Overview

7.1ch Sound Processors with Built-in Mode and Input Selectors

BD3473KS2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFP
package instruction	SQFP-80
Contacts	80
Reach Compliance Code	compli
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G80
length	14 mm
Number of functions	1
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP80,.64SQ
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-7 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum slew rate	60 mA
Maximum supply voltage (Vsup)	7.5 V
Minimum supply voltage (Vsup)	6.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

1/24

構

造(

Structure

): シリコンモノリシック集積回路 (

Silicon Monolithic Integrated Circuit

)

½ 品名(

Product

)

7.1ch モードセレクタ・入力セレクタ内蔵サウンドプロセッサ

(7.1ch Sound Processors with Built-in Mode and Input Selectors)

名 (

Type

)

BD3473KS2

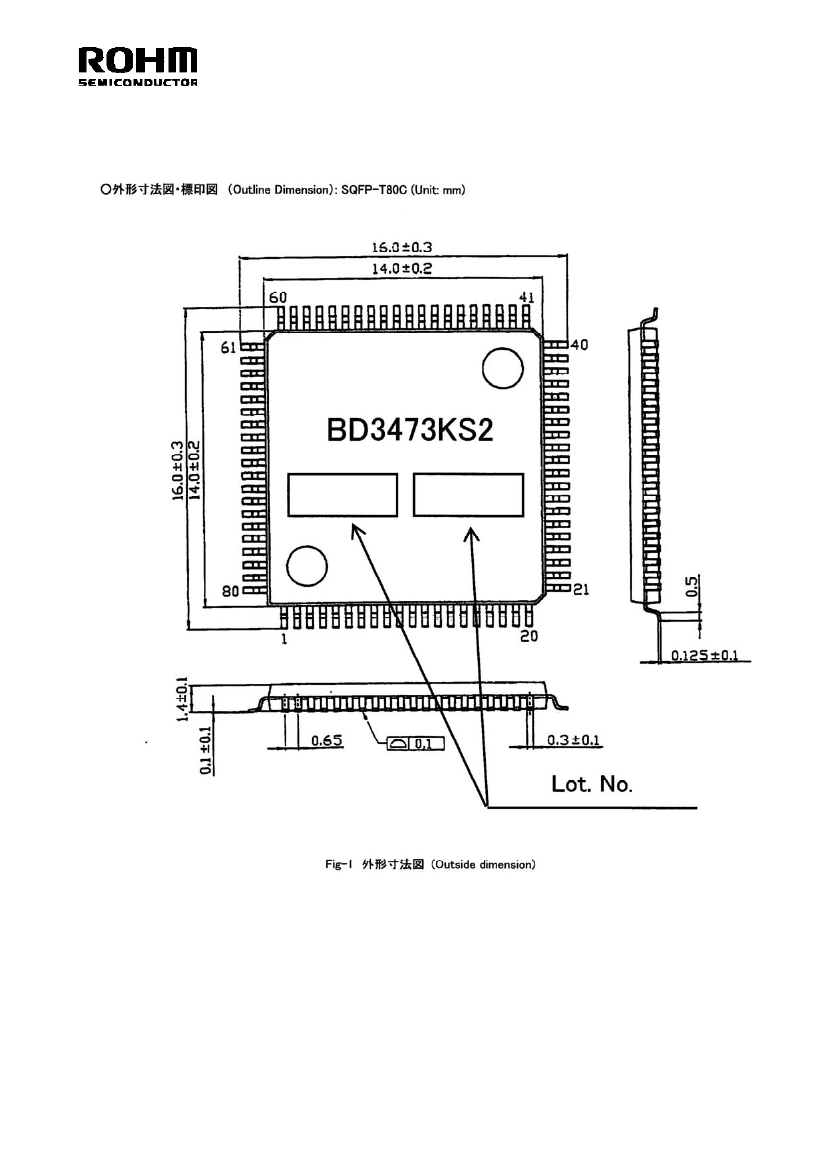

SQFP-T80C

・Electronic Volume:

・Stereo Input Selector:

・Mode Selector:

・REC Output:

・MAIN Output:

・SUB Output:

・MULTI1 Output:

・MULTI2 Output:

・Input Att for ADC

・2 Band Equalizer

+24 ½ -95dB / 0.5dB step, Mute

IN1 ½ IN12, Mute(MAIN, SUB1, SUB2)

LINE(MAIN, SUB), MULTI1, MULTI2, MUte

3 stereo output

1 stereo output

2 stereo output

1 stereo output

0, -6, -6.5, -7.5, -9, -12, Mute

+10 ½ -10dB / 1dB step

パッケージ(Package) :

機½(Function) :

REV. C
