1/4
STRUCTURE
TYPE
PRODUCT SERIES
FEATURES
Silicon Monolithic Integrated Circuit
Positive and Negative Variable Linear Regulator
ＢＤ３９８５ＦＶ
1. Built-in positive (REG1) and negative (REG2) Linear Regulator for CCDs/ Variable output/
Low saturation voltage type.
2. Built-in Discharge circuit. Negative output voltage (REG2) turns off immediately,
after STB turns off.
○ABSOLUTE MAXIMUM RATINGS (Ta=25℃)
Parameter
Positive Supply Voltage
Negative Supply Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Symbol
VCC
VEE
Pd
Topr
Tstg
Tjmax
Limit
+18
-18
380
※1
※1
※2
Unit
V
V
mW
℃
℃
℃
-40½+85
-55½+125
125
※1 Not to exceed Pd.
※2 Reduced by 3.8mW/℃ over Ta=25℃ ,during IC without heat sink operation.
○OPERATING CONDITIONS
Parameter
Positive Supply Voltage
Negative Supply Voltage
REG1 Output Voltage
REG2 Output Voltage
Output Current 1
Output Current 2
Symbol
VCC
VEE
Vo1
Vo2
Io1
Io2
Min
+6.0
-14.0
+5.0
-8.5
－
－
Max
+18.0
-6.0
+16.0
-5.0
25
50
Unit
V
V
V
V
mA
mA
※ Vdropout(Reg1) × Io(Reg1) + Vdropout(Reg2) × Io(Reg2) not to exceed Pd=380mW.
REV. B
2/4
○ELECTRICAL CHARACTERISTICS(Unless otherwise specified, Ta=25℃, VCC=16.5V, VEE=-10V, Set REG1=15V, Set REG2=-7.5V)
Parameter
【Bias current】
Bias Current (VCC)
Bias Current (VEE)
【STB】
STB OFF Voltage
STB ON Voltage
STB OFF Bias Current (VEE)
STB ON Input Current
【Discharge block】
Discharge Current
【REG1】
CTL1 Voltage
Dropout Voltage 1
Peak Output Current 1
Load Regulation 1
Short –
Circuit Output Current 1
Ripple Rejection 1
Temperature Coefficient of Output Voltage 1 ※
【REG2】
CTL2 Voltage
Dropout Voltage2
Peak Output Current2
Load Regulation2
Short –
Circuit Output Current 2
Ripple Rejection2
Temperature Coefficient of Output Voltage 2 ※
Vctl1
ΔVd2
Io2
Vload2
Ishort2
R.R.2
Tcvo2
-1.275
－
50
－
－
－
－
-1.250
0.35
－
100
120
50
±0.02
-1.225
0.45
－
－
－
－
－
V
V
mA
mV
mA
dB
Io2=0½50mA
Vo2=0V
f=120Hz, ein=1Vrms, Io2=2mA
Io2=10mA
VEE=-7.1V, Io2=50mA
Vctl1
ΔVd1
Io1
Vload1
Ishort1
R.R.1
Tcvo1
1.372
－
25
－
－
－
－
1.400
0.25
－
100
50
50
±0.02
1.428
0.35
－
－
－
－
－
V
V
mA
mV
mA
dB
Io1=0½25mA
Vo1=0V
f=120Hz, ein=1Vrms, Io1=2mA
Io1=10mA
Vcc=14.2V, Io1=25mA
Idis
150
300
550
μA
STBOFF
STBON
IOFF
Iin
0
1.6
－
10
－
－
130
30
0.6
3.5
－
60
V
V
μA
μA
Io1,2=0mA
Io1,2=0mA
Io1,2=0mA
VSTB=2V, Io1,2=0mA
ICC
IEE
－
－
500
150
850
250
μA
μA
Io1=0mA
Io2=0mA
Symbol
Limits
MIN
Typ
MAX
Unit
Conditions
%/℃ Io1=1mA, Tj=0½125℃
%/℃ Io2=1mA, Tj=0½125℃
◎ Discharge time
t=(Reg2×Co)/Idis [s]
(VEE=-10V)
Co:Reg2 Output capacitor(μF)
※ Design Guarantee (Shipment inspection is not done on all products.)
This product is not designed for protection against radio active rays.

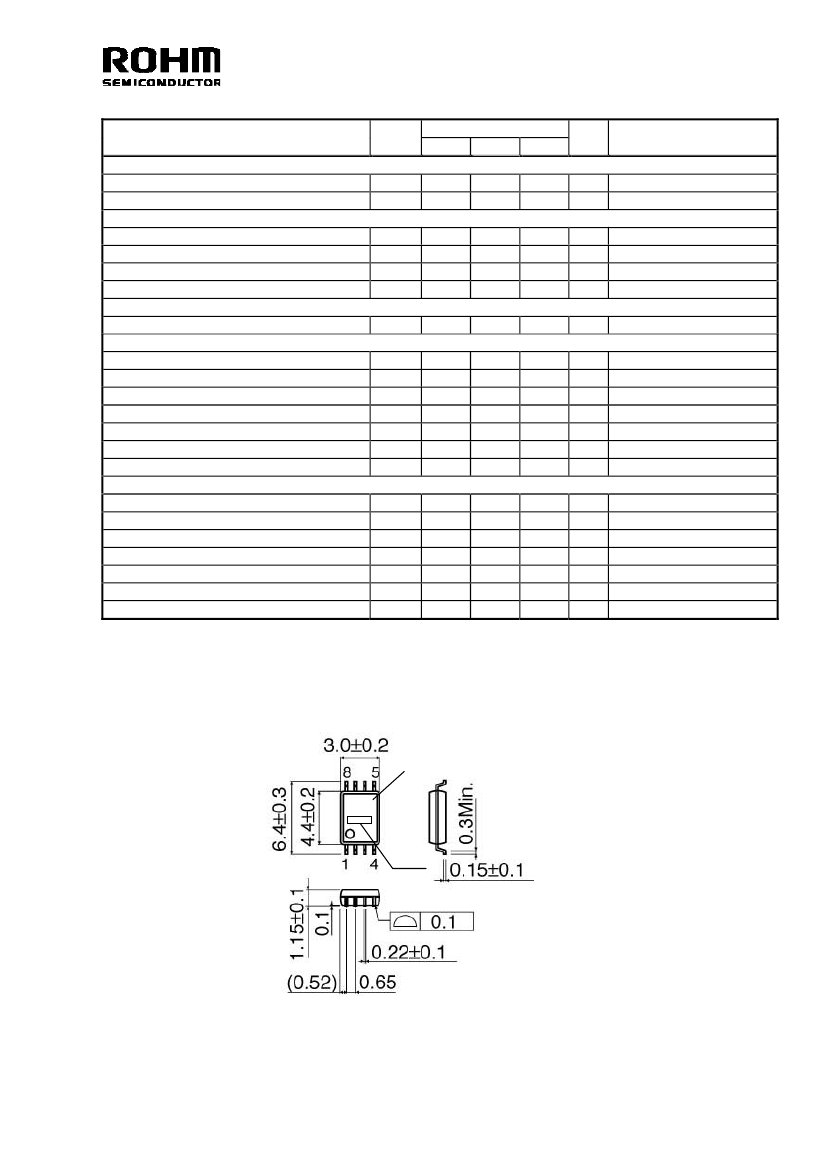

○PHYSICAL DIMENSIONS・MARKING
Part No.
3985
Lot No.
SSOP-B8 (UNIT：mm)
REV. B
3/4
○BLOCK DIAGRAM
○PIN No.・PIN NAME
Pin No.
VCC
VCC 2
BandGap
Pin Name
REG1
VCC
REG2
VEE
CTL2
STB
GND
CTL1
1
2
-
+
3
1 REG1
8 CTL1
4
5
6
TSD
OCP
7 GND
STB 6
Discharge
Block
5 CTL2
3 REG2
7
8
VEE 4
+
-
VEE
※Refer to the Technical Note about the details of the application.
○OPERATING NOTES
1) Absolute maximum ratings
Use of the IC in excess of absolute maximum ratings such as the applied voltage or operating temperature range may result
in IC damage. Assumptions should not be made regarding the state of the IC (short mode or open mode) when such damage is
suffered. A physical safety measure such as a fuse should be implemented when use of the IC in a special mode where the
absolute maximum ratings may be exceeded is anticipated.
2) VEE potential
Ensure a minimum VEE pin potential in all operating conditions.
3) Thermal design
Use a thermal design that allows for a sufficient margin in light of the power dissipation (Pd) in actual operating
conditions.
4) Pin short and mistake mounting
Use caution when orienting and positioning the IC for mounting on printed circuit boards. Improper mounting may result
in damage to the IC. Shorts between output pins and the power supply and GND pins caused by the presence of a foreign object
may result in damage to the IC. Ensure a minimum GND pin potential in all operating conditions.
5) Actions in strong magnetic field
Keep in mind that the IC may malfunction in strong magnetic fields.
6) Testing on application boards
When testing the IC on an application board, connecting a capacitor to a pin with low impedance subjects the IC to stress.
Always discharge capacitors after each process or step. Always turn the IC's power supply off before connecting it to or
removing it from a jig or fixture during the inspection process. Ground the IC during assembly steps as an antistatic measure,
and use similar caution when transporting or storing the IC.
7) This monolithic IC contains P+ isolation and P substrate layers between adjacent elements in order to keep them isolated.
P/N junctions are formed at the intersection of these P layers with the N layers of other elements to create a variety
of parasitic elements. For example, when the resistors and transistors are connected to the pins as shown in the following
figure,
The
P/N junction functions as a parasitic diode when VEE > Pin A for the resistor or VEE > Pin B for the transistor(NPN).
Similarly,
when VEE > Pin B for the transistor (NPN), the parasitic diode described above combines with the N layer
of other adjacent elements to operate as a parasitic NPN transistor.
REV. B
4/4
The formation of parasitic elements as a result of the relationships of the potentials of different pins is an inevitable
result of the IC's architecture. The operation of parasitic elements can cause interference with circuit operation as well
as IC malfunction and damage. For these reasons, it is necessary to use caution so that the IC is not used in a way that
will trigger the operation of parasitic elements, such as by the application of voltages lower than the VEE (P substrate)
voltage to input pins. Keep in mind that the IC may malfunction in strong magnetic fields.
Transistor (NPN)
Resistor
(Pin A)
(Pin B) C
B
E
(Pin B)
B
N
C
E
P
P+
N
P substrate
(Pin A)
VEE
Parasitic elements
or Transistors
VEE
Parasitic elements
N
VEE
Parasitic elements or
Transistors
P+
N
N
P
P
P+
N
N
P+
Parasitic elements
8) Ground patterns
When using both small signal and large current GND patterns, it is recommended to isolate the two ground patterns, placing
a single ground point at the application's reference point so that the pattern wiring resistance and voltage variations
caused by large currents do not cause variations in the small signal ground voltage. Be careful not to change the GND wiring
pattern of any external parts, either.
9) Applications or inspection processes where the potentials of the VCC pin and other pins may be reversed from their normal
states may cause damage to the IC's internal circuitry or elements. Use an output pin capacitance of 1,000μF or lower
in case VCC is shorted with the GND pin while the external capacitor is charged. It is recommended to insert a diode for
preventing back current flow in series with VCC or bypass diodes between VCC and each pin.
Back current prevention diode
Bypass diode
VCC
Pin
10) Thermal shutdown circuit (TSD)
This IC incorporates a built-in TSD circuit for the protection from thermal destruction. The IC should be used within the
specified power dissipation range. However, in the event that the IC continues to be operated in excess of its power dissipation
limits, the attendant rise in the junction temperature (Tj) will trigger the TSD circuit to turn off all output power elements.
The circuit automatically resets once the junction temperature (Tj) drops. Operation of the TSD circuit presumes that the
IC's absolute maximum ratings have been exceeded. Application designs should never make use of the TSD circuit.
11) Overcurrent protection circuit (OCP)
The IC incorporates a built-in overcurrent protection circuit that operates according to the output current capacity. This
circuit serves to protect the IC from damage when the load is shorted. The protection circuit is designed to limit current
flow by not latching in the event of a large and instantaneous current flow originating from a large capacitor or other
component. This protection circuits is effective in preventing damage due to sudden and unexpected accidents. However,
the IC should not be used in applications characterized by the continuous operation or transitioning of the protection
circuits. At the time of thermal designing, keep in mind that the current capacity has negative characteristics to
temperatures.
REV. B
Notice
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the
consent of ROHM Co.,Ltd.
The content specified herein is subject to change for improvement without notice.
The content specified herein is for the purpose of introducing ROHM's products (hereinafter
"Products"). If you wish to use any such Product, please be sure to refer to the specifications,
which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein
illustrate the standard usage and operations of the Products. The peripheral conditions must
be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specified in this document.
However, should you incur any damage arising from any inaccuracy or misprint of such
information, ROHM shall bear no responsibility for such damage.
The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or
implicitly, any license to use or exercise intellectual property or other rights held by ROHM and
other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the
use of such technical information.
The Products specified in this document are intended to be used with general-use electronic
equipment or devices (such as audio visual equipment, office-automation equipment, commu-
nication devices, electronic appliances and amusement devices).
The Products specified in this document are not designed to be radiation tolerant.
While ROHM always makes efforts to enhance the quality and reliability of its Products, a
Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard
against the possibility of physical injury, fire or any other damage caused in the event of the
failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM
shall bear no responsibility whatsoever for your use of any Product outside of the prescribed
scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or
system which requires an extremely high level of reliability the failure or malfunction of which
may result in a direct threat to human life or create a risk of human injury (such as a medical
instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel-
controller or other safety device). ROHM shall bear no responsibility in any way for use of any
of the Products for the above special purposes. If a Product is intended to be used for any
such special purpose, please contact a ROHM sales representative before purchasing.
If you intend to export or ship overseas any Product or technology specified herein that may
be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to
obtain a license or permit under the Law.
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
