BD623X-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> BD623X-E

BD623X-E: DescriptionBRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8; Categorysemiconductor Analog mixed-signal IC; File Size1MB，27 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BD623X-E Overview

BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8

BD623X-E Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	32 V
Minimum supply/operating voltage	6 V
Rated supply voltage	24 V
Processing package description	ROHS COMPLIANT, SOP-8
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	NOT SPECIFIED
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Maximum output current	0.5000 A
Analog IC other types	Brushed DC motor controller

Preview

Download Datasheet

View All

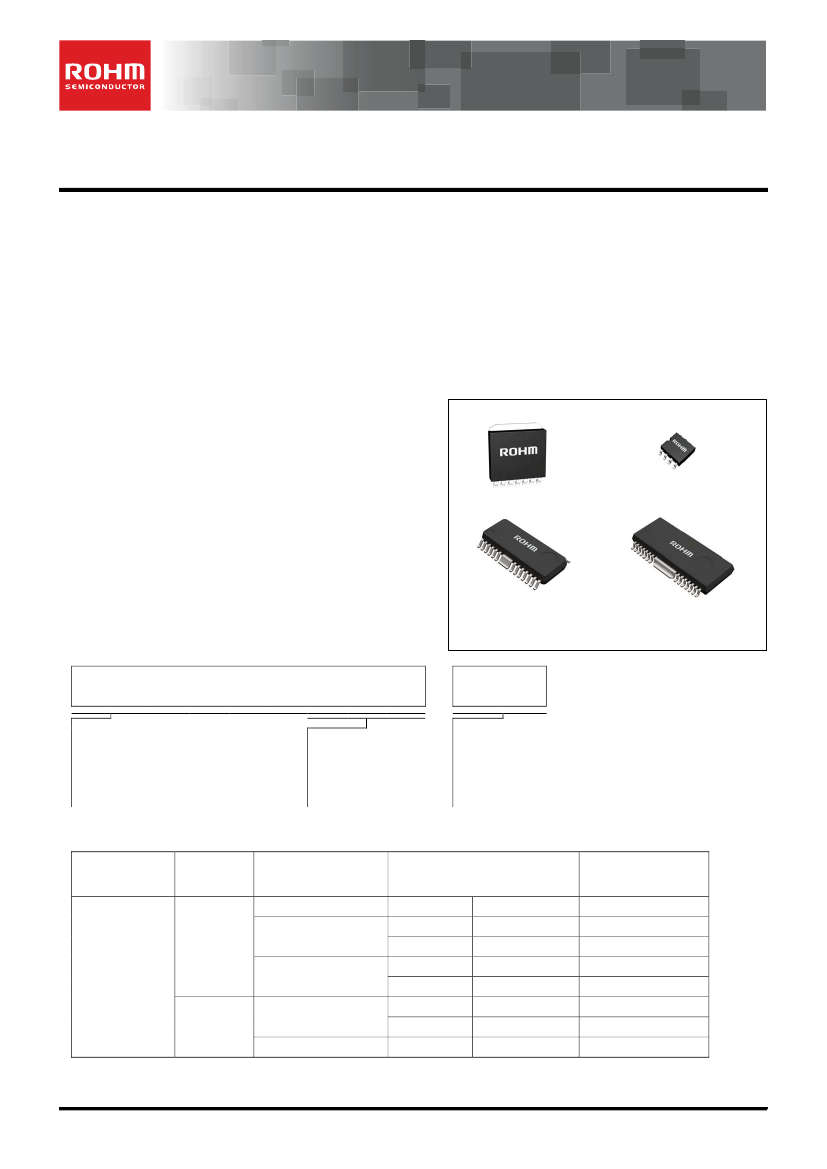

Datasheet

DC Brush Motor Drivers (36V Max)

BD623xxx Series

General Description

These H-bridge drivers are full bridge drivers for brush

motor applications. Each IC can operate at a wide range

of power supply voltages (from 6V to 32V), with output

currents of up to 2A. MOS transistors in the output stage

allow PWM speed control. The integrated VREF voltage

control function allows direct replacement of discontinued

motor driver ICs. These highly efficient H-bridge driver

ICs facilitate low-power consumption design.

Key Specifications

■

Supply Voltage Range:

Maximum Output Current:

Output ON-Resistance:

PWM Input Frequency Range:

Standby Current:

Operating Temperature Range:

36V(Max)

0.5A / 1.0A / 2.0A

1.5Ω / 1.5Ω / 1.0Ω

20kHz to 100kHz

0μA (Typ)

-40°C to +85°C

Packages

SOP8

HSOP25

HSOP-M28

HRP7

Features



Built-in, selectable one channel or two channels

configuration

VREF voltage setting pin enables PWM duty control

Cross-conduction prevention circuit

Four protection circuits provided: OCP, OVP, TSD and

UVLO

W(Typ) x D(Typ) x H(Max)

5.00mm x 6.20mm x 1.71mm

13.60mm x 7.80mm x 2.11mm

18.50mm x 9.90mm x 2.41mm

9.395mm x 10.540mm x 2.005mm

Applications

VTR; CD/DVD players; audio-visual equipment; optical

disc drives; PC peripherals; OA equipments

HRP7 (Pd=1.60W)

SOP8 (Pd=0.69W)

HSOP25( (Pd=1.45W)

HSOP-M28 (Pd=2.20W)

(Note) Pd : Mounted on a 70mm x 70mm x 1.6mm glass-epoxy board.

Ordering Information

Packaging and forming specification

E2: Embossed taping

(SOP8/HSOP25/HSOP-M28)

TR: Embossed taping

(HRP7)

Part Number

Package

: SOP8

FP : HSOP25

FM : HSOP-M28

HFP : HRP7

Lineup

Rating Voltage

(Max)

Channels

Output Current

(Max)

0.5A

1ch

36V

1.0A

2.0A

1.0A

2.0A

SOP8

HRP7

SOP8

HRP7

HSOP25

HSOP-M28

Package

Reel of 2500

Reel of 2000

Reel of 2500

Reel of 2000

Reel of 1500

Ordering

Part Number

BD6230F-E2

BD6231HFP-TR

BD6231F-E2

BD6232HFP-TR

BD6232FP-E2

BD6236FP-E2

BD6236FM-E2

BD6237FM-E2

2ch

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111½14½001

○This

product has no designed protection against radioactive rays.

1/24

TSZ02201-0P2P0B300090-1-2

09.Sep.2014 Rev.003

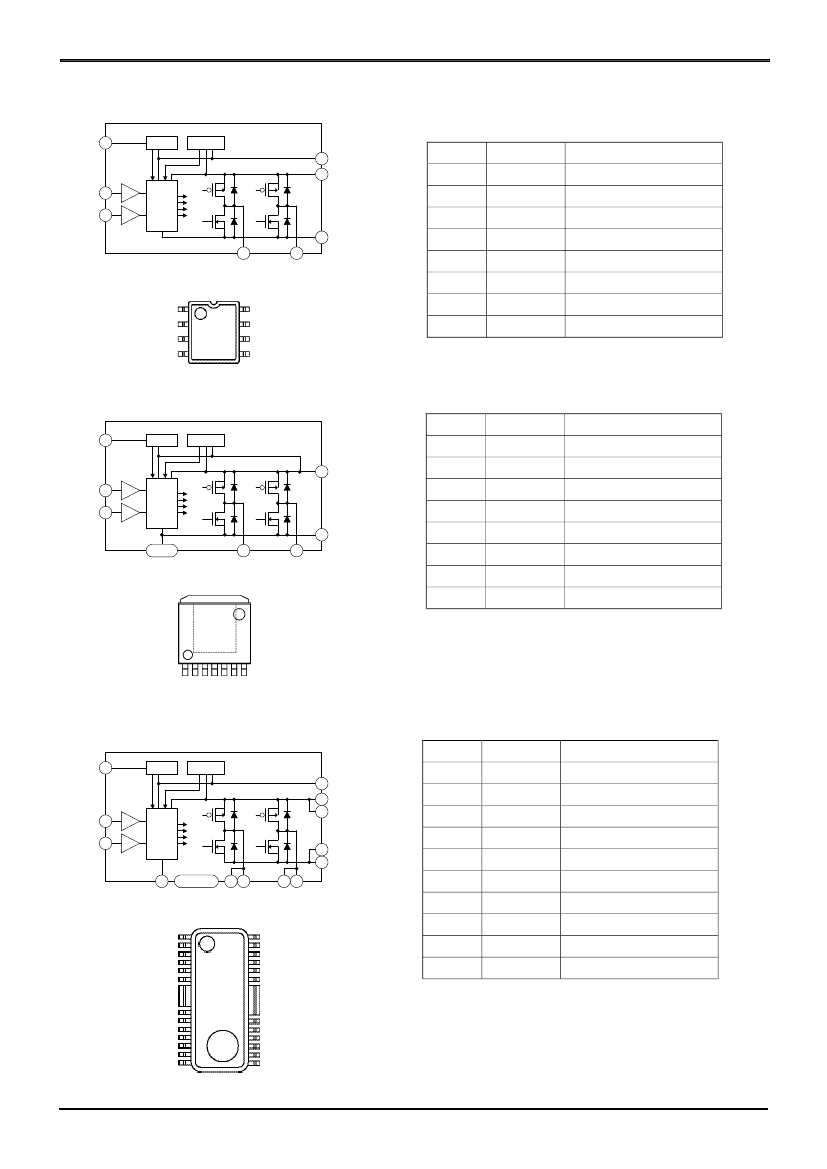

BD623X-E Related Products

	BD623X-E	BD6231F	BD6236FM	BD6236FP	BD6237FM
Description	BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8	BRUSH DC MOTOR CONTROLLER, PDSO8	BRUSH DC MOTOR CONTROLLER, PDSO28	BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8	BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8
Number of functions	1	1	1	1	1
Number of terminals	8	8	28	25	28
Maximum operating temperature	85 Cel	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
surface mount	Yes	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	pair	DUAL	DUAL	DUAL	DUAL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Maximum output current	0.5000 A	1 A	1 A	1 A	2 A
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Parts packaging code	-	SOIC	SOIC	SOIC	SOIC
package instruction	-	LSOP,	HSSOP,	HSSOP,	HSSOP,
Contacts	-	8	28	25	28
Reach Compliance Code	-	compli	compli	compli	compli
Analog Integrated Circuits - Other Types	-	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	-	R-PDSO-G8	R-PDSO-G28	R-PDSO-G25	R-PDSO-G28
JESD-609 code	-	e2	e2	e2	e2
length	-	5 mm	18.5 mm	13.6 mm	18.5 mm
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	LSOP	HSSOP	HSSOP	HSSOP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	-	260	260	260	260
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.6 mm	2.3 mm	2.11 mm	2.3 mm
Maximum supply voltage (Vsup)	-	32 V	32 V	32 V	32 V
Minimum supply voltage (Vsup)	-	6 V	6 V	6 V	6 V
Nominal supply voltage (Vsup)	-	24 V	24 V	24 V	24 V
Terminal surface	-	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal pitch	-	1.27 mm	0.8 mm	0.8 mm	0.8 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	4.4 mm	7.5 mm	5.4 mm	7.5 mm
Base Number Matches	-	1	1	-	1
