ZS1N-36N-G: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

ZS1N-36N-G Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug

ZS1N-36N-G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH NOSE
body width	0.189 inch
subject depth	0.213 inch
body length	1.618 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZS1N
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	36

Preview

Download Datasheet

View All

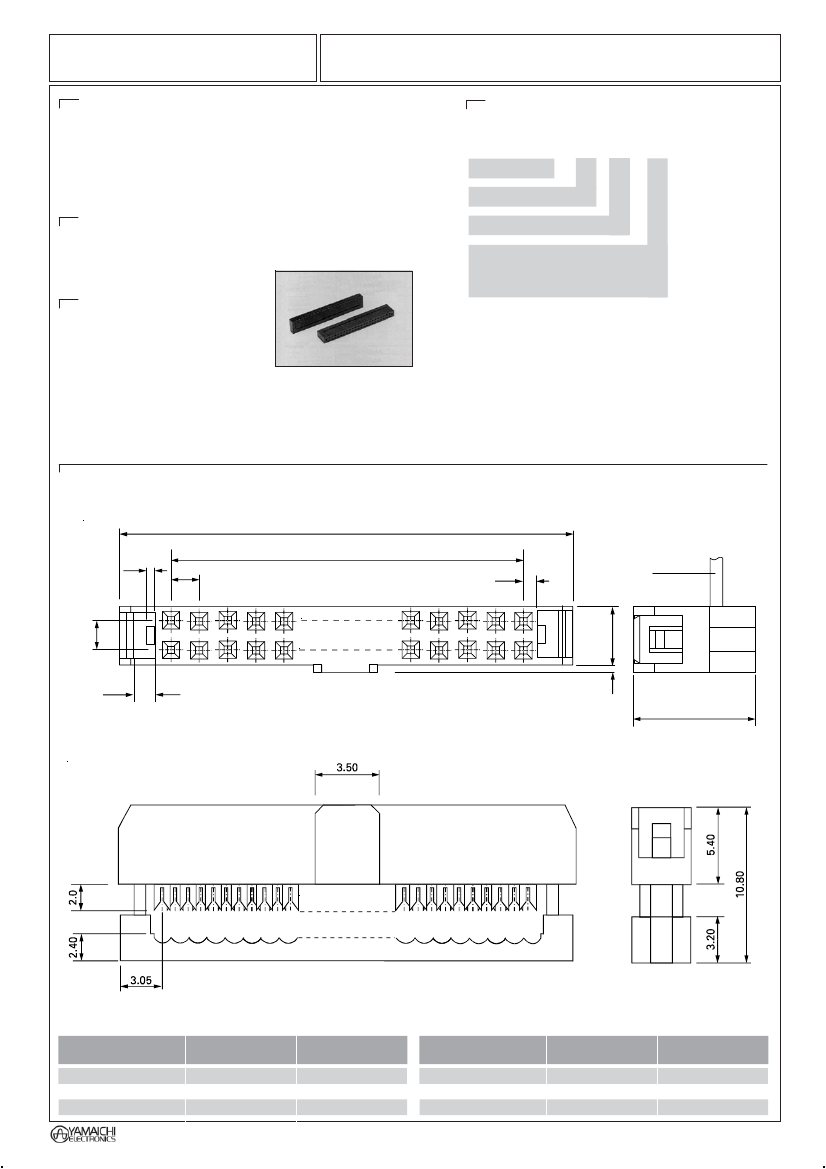

ZS1N Series

Specifications

Contact Resistance:

Insulation Resistance:

Current Rating:

Operating Temperature Range:

Withstanding Voltage:

I.D.C. Socket with Nose

Part Number

(Details)

35mΩ max.

1,000MΩ min at 500V DC

1.0A

–55°C to +105°C

250V for 1 minute

ZS1N

Series No.

- ** N - *

No. of Contact Pins

N = No Strain Relief

Contact Plating:

S = Selective Au

G = Au Flash

Materials and Finish

Housing: UL 94V-0 listed

Terminals: Phosphor Bronze

Plating:

Tin and Gold

Features

➭

Pin count from 26 to 60

Outline Connector Dimensions

A

±0.2

B

±0.1

0.65

2.0

1.00

Cable

1.50

0.60

4.20±0.1

2.0

8.60 ±0.15 Closed

YAMAICHI ELECTRONICS -

Munich 089 / 45109-0

Dimensional Information

Part Number

ZS1N-26N-*

ZS1N-36N-*

ZS1N-40N-*

Dim. A

31.0

41.1

45.1

Dim. B

24.0

34.0

38.0

Part Number

ZS1N-44N-*

ZS1N-50N-*

ZS1N-60N-*

Dim. A

49.1

55.1

65.1

Dim. B

42.0

48.0

58.0

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER AND FOR REFERENCE ONLY

Trading Division

ZS1N-36N-G Related Products

	ZS1N-36N-G	ZS1N-60N-G
Description	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug	Board Connector, 60 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	WITH NOSE	WITH NOSE
body width	0.189 inch	0.189 inch
subject depth	0.213 inch	0.213 inch
body length	1.618 inch	2.563 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VAC V	250VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	ZS1N	ZS1N
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch
polarization key	CENTER	CENTER
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC
Total number of contacts	36	60
