BYV32-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV32-50

BYV32-50: Description10 A, 50 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size157KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BYV32-50 Overview

10 A, 50 V, SILICON, RECTIFIER DIODE

BYV32-50 Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknow
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
Maximum non-repetitive peak forward current	150 A
Maximum operating temperature	150 °C
Maximum output current	18 A
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.025 µs
surface mount	NO

Preview

Download Datasheet

View All

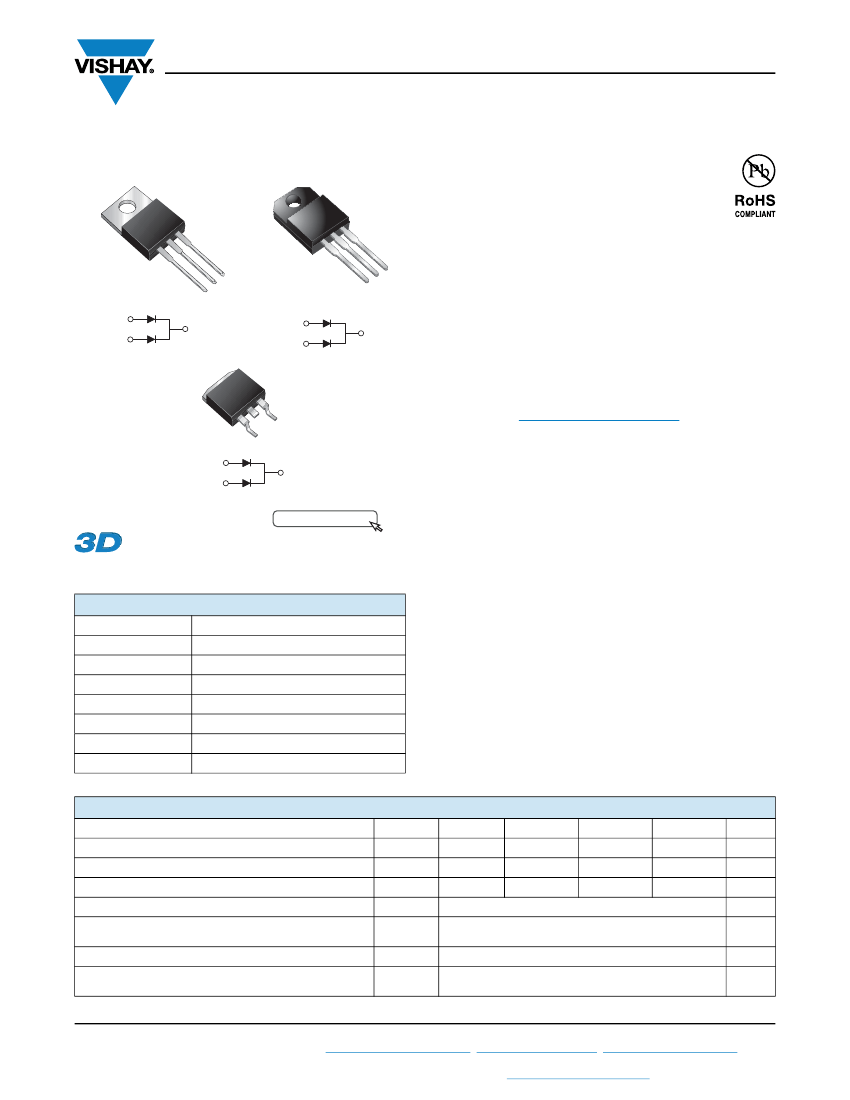

BYV32-xxx, BYVF32-xxx, BYVB32-xxx

www.vishay.com

Vishay General Semiconductor

Dual Common-Cathode Ultrafast Rectifier

FEATURES

TO-220AB

ITO-220AB

• Power pack

• Glass passivated pellet chip junction

• Ultrafast recovery time

• Low switching losses, high efficiency

• Low forward voltage drop

BYV32 Series

PIN 1

PIN 3

PIN 2

CASE

BYVF32 Series

PIN 1

PIN 3

PIN 2

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 245 °C (for TO-263AB package)

• Solder dip 275 °C max. 10 s, per JESD 22-B106

(for TO-220AB and ITO-220AB package)

• AEC-Q101 qualified,

(for ITO-220AB and TO-263AB package)

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

PAK (TO-263AB)

BYVB32 Series

PIN 1

PIN 2

HEATSINK

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, inverters, freewheeling diodes, DC/DC

converters, and other power switching application.

DESIGN SUPPORT TOOLS

Models

Available

click logo to get started

MECHANICAL DATA

Case:

TO-220AB, ITO-220AB, D

PAK (TO-263AB)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs max.



PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Circuit configuration

18 A

50 V to 200 V

150 A

25 ns

0.85 V

150 °C

TO-220AB, ITO-220AB, D

PAK (TO-263AB)

Common cathode

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 125 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Operating storage and temperature range

Isolation voltage (ITO-220AB only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

BYV32-50

BYV32-100

100

150

-65 to +150

1500

BYV32-150

150

105

150

BYV32-200

200

140

200

UNIT

°C

Revision: 08-Jun-2018

Document Number: 88558

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

BYV32-50 Related Products

	BYV32-50	BYV32-100	BYV32-150	BYV32-200	BYV32_08
Description	10 A, 50 V, SILICON, RECTIFIER DIODE	18 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB	18 A, 150 V, SILICON, RECTIFIER DIODE, TO-220AB	18 A, 200 V, SILICON, RECTIFIER DIODE, TO-220AB	18 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB
Maker	Vishay	Vishay	Vishay	Vishay	-
Reach Compliance Code	unknow	unknow	unknow	unknown	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V	-
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-
Maximum output current	18 A	18 A	18 A	18 A	-
Maximum repetitive peak reverse voltage	50 V	100 V	150 V	200 V	-
Maximum reverse recovery time	0.025 µs	0.025 µs	0.025 µs	0.025 µs	-
surface mount	NO	NO	NO	NO	-
