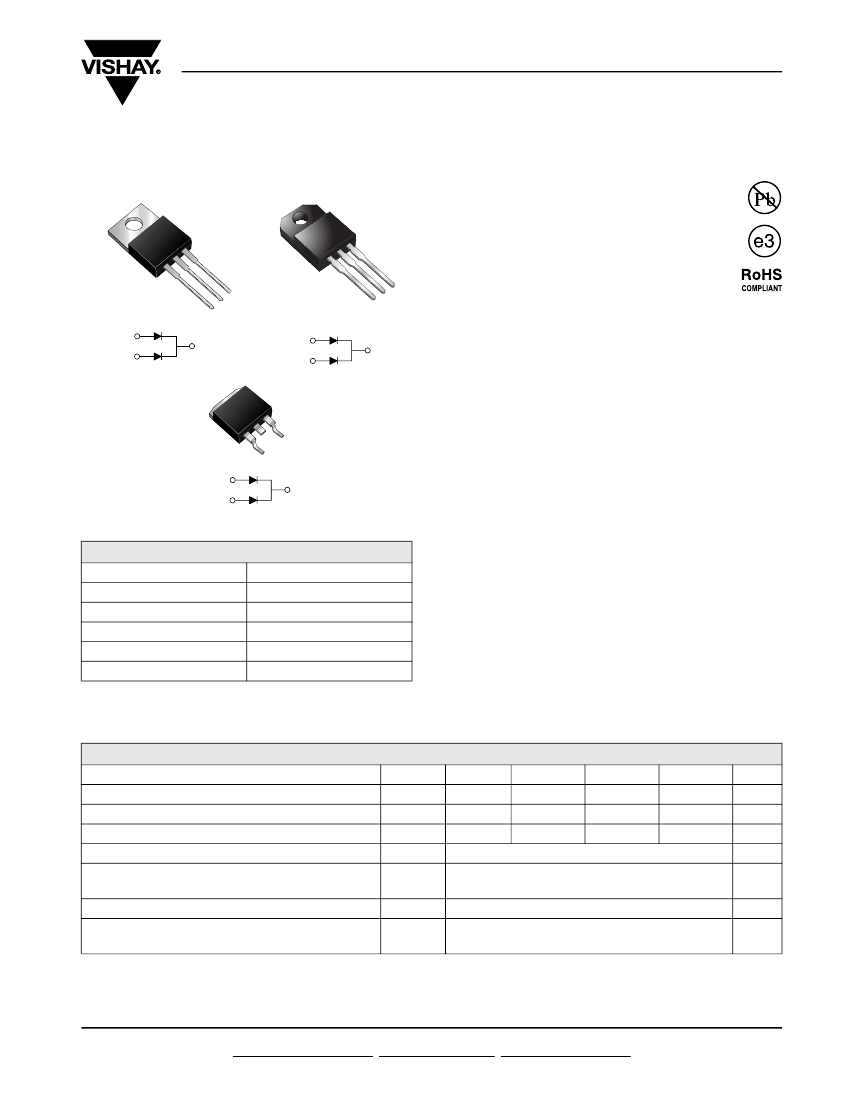

BYV(F,B)32-50 thru BYV(F,B)32-200
Vishay General Semiconductor
Dual Common-Cathode Ultrafast Rectifier
TO-220AB
ITO-220AB
2
BYV32 Series
PIN 1
PIN 3
PIN 2
CASE
3
1
BYVF32 Series
PIN 1
PIN 3
PIN 2
2
3
1
TO-263AB
K
FEATURES
• Glass passivated chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C (for TO-263AB package)
• Solder dip 260 °C, 40 s (for TO-220AB and
ITO-220AB package)
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes,
dc-to-dc converters, and other power switching
application.
MECHANICAL DATA
Case:
TO-220AB, ITO-220AB, TO-263AB
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class
1A whisker test, HE3 suffix for high reliability grade
(AEC Q101 qualified), meets JESD 201 class 2
whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
2
1
BYVB32 Series
PIN 1
PIN 2
K
HEATSINK
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
18 A
50 V to 200 V
150 A
25 ns
0.85 V
150 °C
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
= 125 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load per diode
Operating storage and temperature range
Isolation voltage (ITO-220AB only)
from terminal to heatsink t = 1 min
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
BYV32-50
50
35
50
BYV32-100
100
70
100
18
150
- 65 to + 150
1500
BYV32-150
150
105
150
BYV32-200
200
140
200
UNIT
V
V
V
A
A
°C
V
Document Number: 88558
Revision: 05-May-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
1
BYV(F,B)32-50 thru BYV(F,B)32-200
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage per diode
(1)
Maximum DC reverse
current per diode at rated
DC blocking voltage
Maximum reverse
recovery time per diode
Typical junction
capacitance per diode
Note:
(1) Pulse test: 300 µs pulse width, 1 % duty cycle
TEST CONDITIONS
I
F
= 20 A
I
F
= 5.0 A
T
J
= 25 °C
T
J
= 100 °C
T
J
= 25 °C
T
J
= 100 °C
I
F
= 1 A, V
R
= 30 V,
dI/dt = 100 A/µs, I
rr
= 10 % I
RM
4.0 V, 1 MHz
SYMBOL
V
F
BYV32-50
BYV32-100
BYV32-150
BYV32-200
UNIT
V
1.15
0.85
10
600
25
45
I
R
µA
t
rr
C
J
ns
pF
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance from junction to case per diode
SYMBOL
R
θJC
BYV
1.6
BYVF
5.0
BYVB
1.6
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
Note:
(1) Automotive grade AEC Q101 qualified
PREFERRED P/N
BYV32-200-E3/45
BYVF32-200-E3/45
BYVB32-200-E3/45
BYVB32-200-E3/81
BYV32-200HE3/45
(1)
BYVF32-200HE3/45
(1)
BYVB32-200HE3/45
(1)
BYVB32-200HE3/81
(1)
UNIT WEIGHT (g)
1.85
1.97
1.35
1.35
1.85
1.97
1.35
1.35
PACKAGE CODE
45
45
45
81
45
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tube
Tape and reel
www.vishay.com
2
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88558
Revision: 05-May-08
BYV(F,B)32-50 thru BYV(F,B)32-200
Vishay General Semiconductor
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
20
1000
Resistive or Inductive Load
16
Average Forward Rectified Current (A)
Instantaneous Reverse Leakage
Current (µA)
18
100
T
C
= 100 °C
12
10
8
1
4
T
C
= 25 °C
0
0
25
50
75
100
125
150
0.1
0
20
40
60
80
100
Case Ambient Temperature (°C)
Percent of Rated Peak Reverse
Voltage
(%)
Figure 1. Forward Current Derating Curve
Figure 4. Typical Reverse Leakage Characteristics Per Diode
150
60
T
J
= 150 °C
10 ms Single Half Sine-Wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 5 mVp-p
Peak Forward Surge Current (A)
100
Junction Capacitance (pF)
125
50
40
75
30
50
20
25
10
0
1
10
100
0
1
10
100
Number
of Cycles at 50 Hz
Reverse
Voltage
(V)
Figure 2. Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
Figure 5. Typical Junction Capacitance Per Diode
100
Instantaneous Forward Current (A)
10
T
J
= 125 °C
1
T
J
= 25 °C
0.1
Pulse
Width
= 300
µs
1
%
Duty Cycle
0.01
0.1
0.3
0.5
0.7
0.9
1.1
1.3
Instantaneous Forward
Voltage
(V)
Figure 3. Typical Instantaneous Forward Characteristics Per Diode
Document Number: 88558
Revision: 05-May-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
3
BYV(F,B)32-50 thru BYV(F,B)32-200
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
ITO-220AB
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.670 (17.02)
0.591 (15.00)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.33 (8.38) MIN.
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.624 (15.85)
0.591 (15.00)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
www.vishay.com
4
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88558
Revision: 05-May-08
