VISHAY
BYW172D / 172F / 172G
Vishay Semiconductors
Fast Avalanche Sinterglass Diode
Features
•
•
•
•
Glass passivated junction
Hermetically sealed package
Soft recovery characteristics
Low reverse current
949588
• Low forward voltage drop
• High pulse current capability
Mechanical Data
Case:
SOD-64 Sintered glass case
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
approx. 858 mg
Applications
Fast rectification diode in S.M.P.S
Parts Table
Part
BYW172D
BYW172F
BYW172G
Type differentiation
V
R
= 200 V; I
FAV
= 3 A
V
R
= 300 V; I
FAV
= 3 A
V
R
= 400 V; I
FAV
= 3 A
SOD-64
SOD-64
SOD-64
Package
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Reverse voltage = Repetitive
peak reverse voltage
Test condition
see electrical characteristics
Part
BYW172D
BYW172F
BYW172G
Peak forward surge current
Average forward current
Junction and storage
temperature range
Non repetitive reverse
avalanche energy
I
(BR)R
= 1 A
t
p
= 10 ms, single half sine wave
Symbol
V
R
= V
RRM
V
R
= V
RRM
V
R
= V
RRM
I
FSM
I
FAV
T
j
= T
stg
E
R
Value
200
300
400
100
3
- 55 to + 175
20
Unit
V
V
V
A
A
°C
mJ
Maximum Thermal Resistance
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction ambient
Test condition
l = 10 mm, T
L
= constant
on PC board with spacing
25 mm
Symbol
R
thJA
R
thJA
Value
25
70
Unit
K/W
K/W
Document Number 86096
Rev. 1.2, 12-Aug-04
www.vishay.com
1
BYW172D / 172F / 172G
Vishay Semiconductors
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Reverse current
Reverse recovery time
I
F
= 3 A
I
F
= 9 A
V
R
= V
RRM
V
R
= V
RRM
, T
j
= 100 °C
I
F
= 0.5 A, I
R
= 1 A , i
R
= 0.25 A
Test condition
Symbol
V
F
V
F
I
R
I
R
t
rr
75
Min
Typ.
Max
1.1
1.5
1
20
100
VISHAY
Unit
V
V
µA
µA
ns
Typical Characteristics
(T
amb
= 25
°C
unless otherwise specified)
R
thJA
- Therm. Resist. Junction/Ambient (K/W)
40
I
FAV
- Average Forward Current ( A )
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
R
thJA
= 70 K/W
PCB: d = 25 mm
30
V
R
= V
RRM
half sinewave
R
thJA
= 25 K/W
l = 10 mm
20
l
10
l
0
0
5
10
15
T
L
= constant
20
25
30
l - Lead Length ( mm )
20 40 60 80 100 120 140 160 180
T
amb
- Ambient Temperature (
°
C )
94 9466
16388
Figure 1. Max. Thermal Resistance vs. Lead Length
Figure 3. Max. Average Forward Current vs. Ambient Temperature
100
I
F
- Forward Current ( A )
1000
I
R
- Reverse Current (
µA
)
V
R
= V
RRM
10
T
j
= 175
°C
1
0.1
0.01
T
j
= 25° C
100
10
0.001
0
16387
1
0.5
1.0
1.5
2.0
2.5
16389
25
50
75
100
125
150
175
V
F
- Forward Voltage ( V )
T
j
- Junction Temperature (
°
C )
Figure 2. Forward Current vs. Forward Voltage
Figure 4. Reverse Current vs. Junction Temperature
www.vishay.com
2
Document Number 86096
Rev. 1.2, 12-Aug-04
VISHAY
BYW172D / 172F / 172G
Vishay Semiconductors
P - Reverse Power Dissipation ( mW )
R
180
160
140
120
100
80
60
40
20
0
25
50
75
100
P
R
-Limit
@80 % V
R
120
C
D
- Diode Capacitance ( pF )
V
R
= V
RRM
f =1 MHz
100
80
60
40
20
0
0.1
P
R
-Limit
@100 % V
R
125
150
175
16391
1
10
100
16390
T
j
- Junction Temperature (
°
C )
V
R
- Reverse Voltage ( V )
Figure 5. Max. Reverse Power Dissipation vs. Junction
Temperature
Z
thp
- Thermal Resistance f. Pulse Cond. (K/W
Figure 6. Diode Capacitance vs. Reverse Voltage
1000
V
RRM
= 600 V
R
thJA
= 70 K/W
100
t
p
/T= 0.5
t
p
/T= 0.2
10
t
p
/T= 0.1
t
p
/T= 0.05
0.02
1
10
-4
t
p
/T= 0.01
10
-3
10
-2
10
-1
10
0
10
1
10
2
t
p
- Pulse Length ( s )
10
0
10
1
10
2
I
FRM
- Repetitive Peak
Forward Current ( A )
70°C
T
amb
= 25°C
100
°C
45°C
94 9562

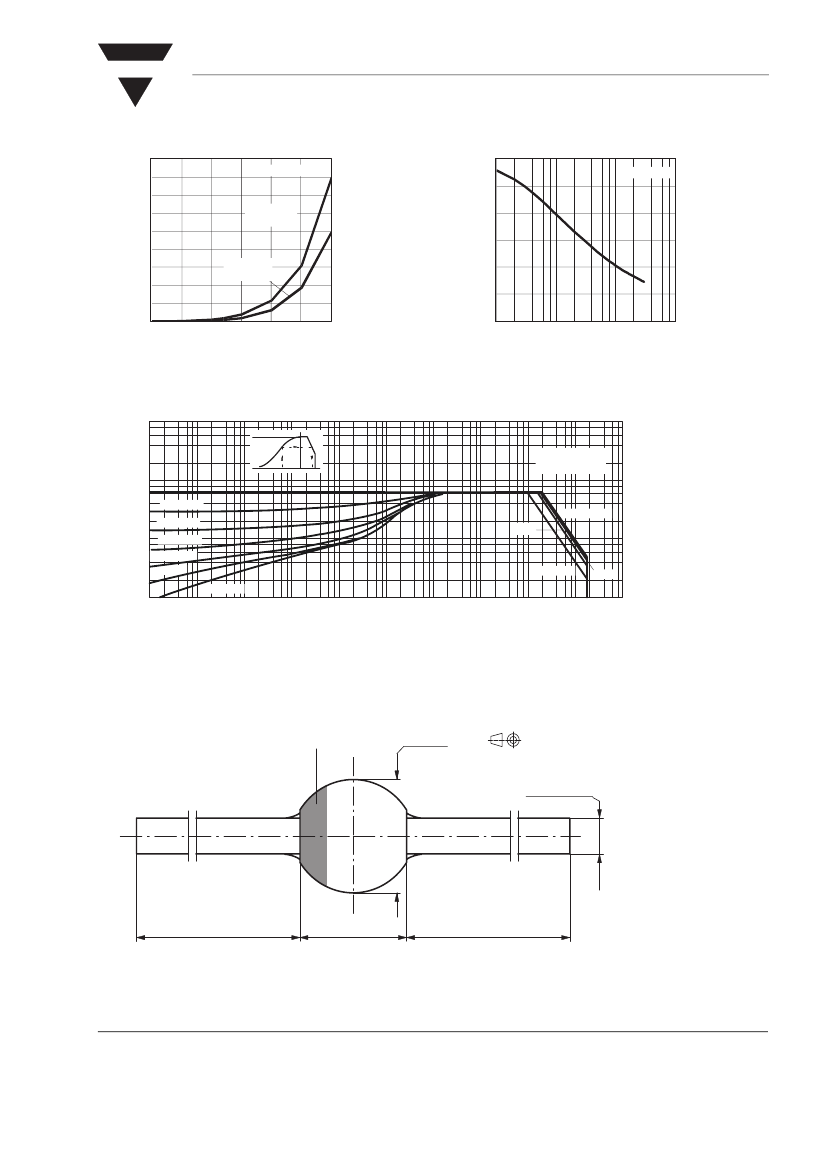

Figure 7. Thermal Response
Package Dimensions in mm (Inches)
Sintered Glass Case
SOD-64
Cathode Identification
4.3 (0.168) max.
ISO Method E
1.35 (0.053) max.
26(1.014) min.
4.0 (0.156) max.
26 (1.014) min.
94 9587
Document Number 86096
Rev. 1.2, 12-Aug-04
www.vishay.com
3
