BZW04P14 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZW04P14

BZW04P14: Description400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AL; CategoryDiscrete semiconductor diode; File Size67KB，4 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com

Download Datasheet Parametric View All

BZW04P14 Overview

400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AL

BZW04P14 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414

1-800-831-4881 Email: sales@mdesemicondutor.com Web: www.mdesemiconductor.com

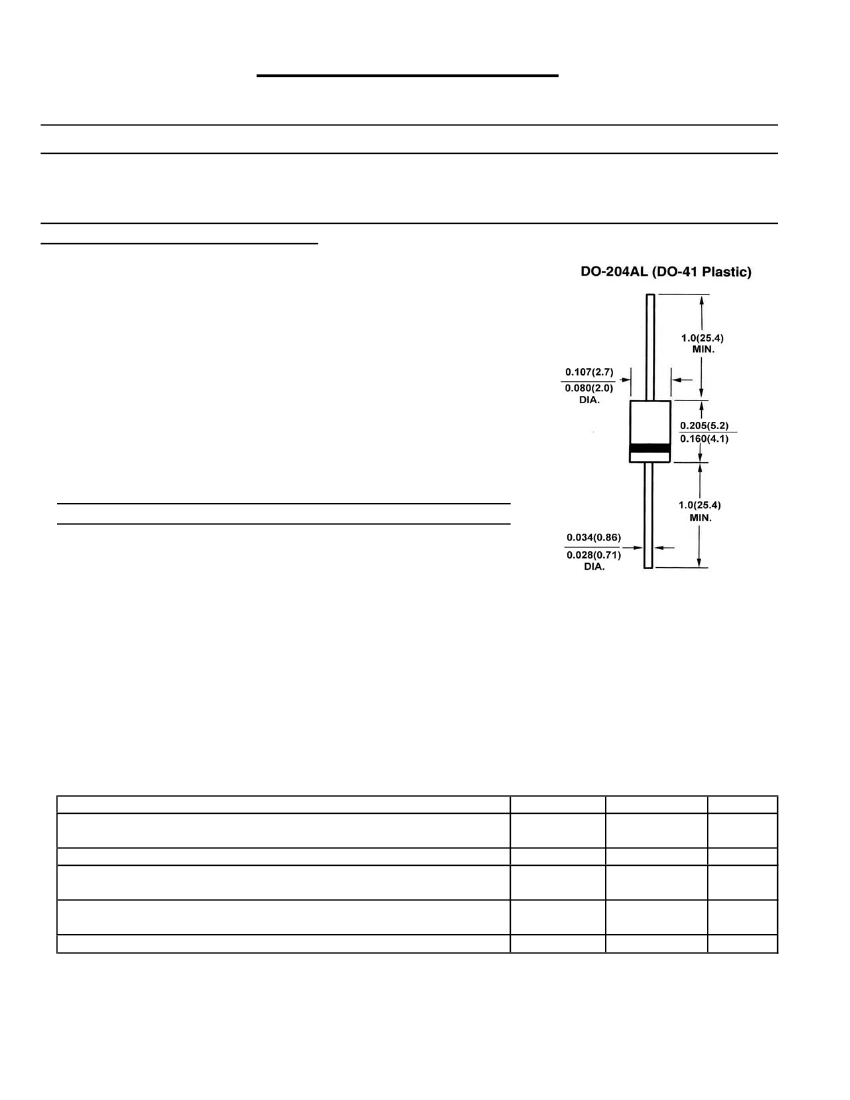

BZW04 SERIES

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE-6.8 TO 376 Volts

400 Watt Peak Pulse Power

FEATURES

• Plastic package has Underwriters Laboratory

Flammability Classification 94 V-O

• Glass passivated chip junction in DO-41 package

• 400W surge capability at 1ms

• Excellent clamping capability

• Low zener impedance

• Low incremental surge resistance

• Excellent clamping capability

• Fast response time: typically less than

1.0 ps from 0 volts to BV min

• Typical I

less than 1µA above 10V

• High temperature soldering guaranteed:

300°C/10 seconds/ .375", (9.5mm) lead

length, 5lbs., (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-41 Molded plastic

Terminals: Axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoted positive end (cathode)

except Bipolar

Mounting Position: Any

Weight: 0.012 ounces, 0.3 grams

Dimensions in inches (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA Suffix for types BZW-04-5V8 thru types BZW04-376 (e.g. BZW04-5V8B, BZW04-376B)

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For Capacitive load, derate current by 20%

RATING

Peak Pulse Power Dissipation at T

= 25 °C, T

= 1ms

(NOTE 1)

SYMBOL

PPM

Ippm

Lead

VALUE

Minimum 400

SEE TABLE 1

1.0

-55 +175

UNITS

Watts

Amps

Watts

Amps

°C

Peak Pulse Current of on 10/1000 µs waveform

(Note 1)

Steady State Power Dissipation at

= 75°C

lengths .375", 9.5mm

(Note 2)

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

Superimposed on Rated Load,

(JEDEC Method)(Note 3)

Operatings and Storage Temperature Range

NOTES:

(AV)

FSM

, T

STG

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.

2. Mounted on Copper Pad area of 1.6x1.6" (40x40mm) per Fig.5.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
