BZX84C36 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Zener diode> BZX84C36

BZX84C36: Description36 V, 0.41 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor Zener diode; File Size344KB，4 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

BZX84C36 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZX84C36	-	-	View	Buy Now

BZX84C36 Overview

36 V, 0.41 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

BZX84C36 Parametric

Parameter Name	Attribute value
Case Style	SOT-23
Pd（W）	0.225
VZ(Min)	34.00
VZ(Nom)	36.0
VZ(Max)	38.00
IZT(mA)	2.0
IR(uA)	0.10
VR(V)	25.2
class	Diodes

Preview

Download Datasheet

View All

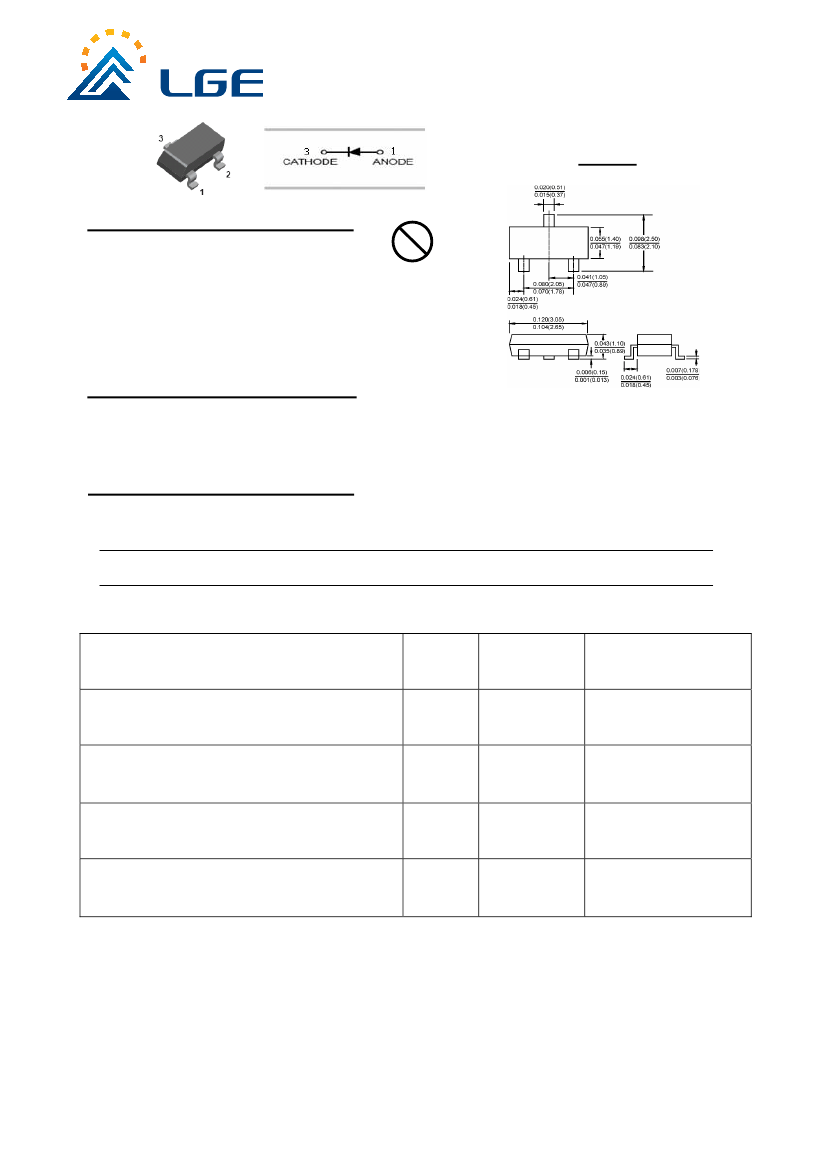

BZX84C Series

350mW Surface Mount Zener Diode

SOT-23

Features

Planar Die Construction.

350mw Power Dissipation.

Zener Voltages From 2.4V -51V

Ideally Suited For Automated Assembly Prcesses.

Lead-free

Applications

350Mw Surface mount zener diode

Dimensions in inches and (millimeters)

Ordering Information

Type No.

BZX84C2V4-BZX84C51

Marking

See Table on page2

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Symbol

Value

Unit

Forward Valtage@I

=10mA

0.9

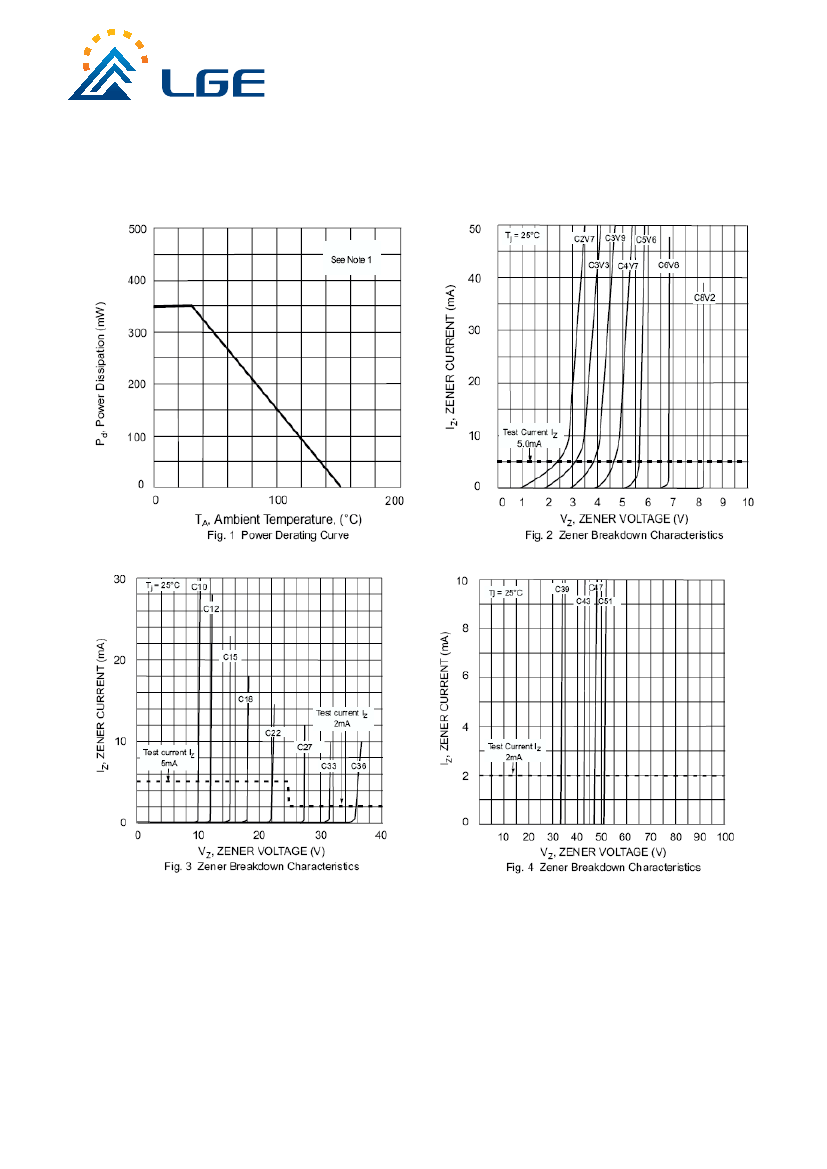

Power Dissipation

350

Thermal Resistance, Junction to Ambient Air

θjA

357

℃/W

Operating and Storage Temperature Range

j，

stg

-65 to+150

℃

Notes: 1. Valid provided that device terminals are kept at ambient temperature.

2. Tested with pulses, 300μs pulse width, period = 5ms.

3. f = 1KHz.

http://www.luguang.cn

mail:lge@luguang.cn
