BZX85C68 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BZX85C68

BZX85C68: Description68 V, 1.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41; Categorysemiconductor Discrete semiconductor; File Size517KB，4 Pages; ManufacturerKingtronics; Websitehttp://www.kingtronics.com

Download Datasheet View All

BZX85C68 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZX85C68	-	-	View	Buy Now

BZX85C68 Overview

68 V, 1.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41

Preview

Download Datasheet

View All

Website: www.kingtronics.com

Email: info@kingtronics.com

Tel: (852) 8106 7033

Fax: (852) 8106 7099

BZX85C

Silicon Planar Power Zener Diodes

DO-41

FEATURES

For use in stabilizing and clipping circuits with high

power rating.

The Zener voltages are graded according to the

international E 24 standard. Other tolerances and

higher Zener voltages are upon request.

Absolute Maximum Ratings (T

= 25

℃

)

Parameter

Power Dissipation

Junction Temperature

Storage Temperature Range

Glass case DO-41 Dimensions in mm

Symbol

Value

UNIT

℃

tot

stg

1.3

200

- 55 to + 200

Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature.

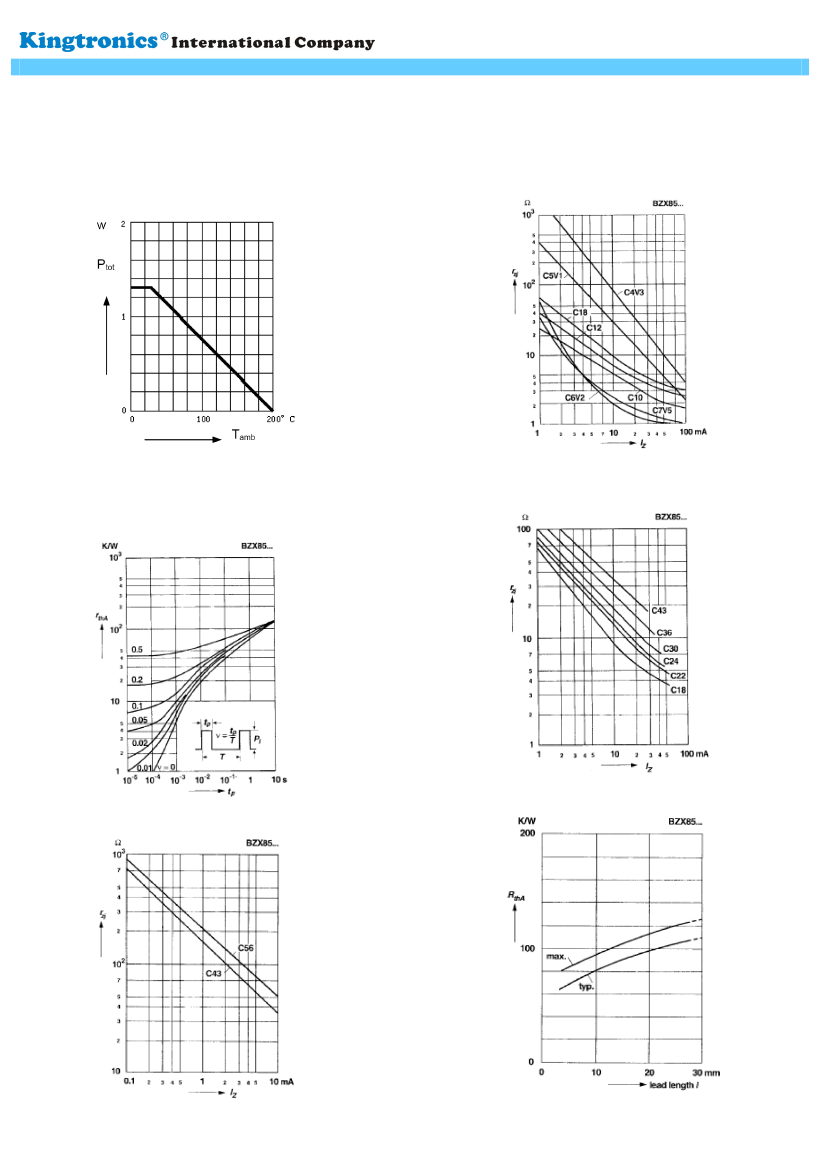

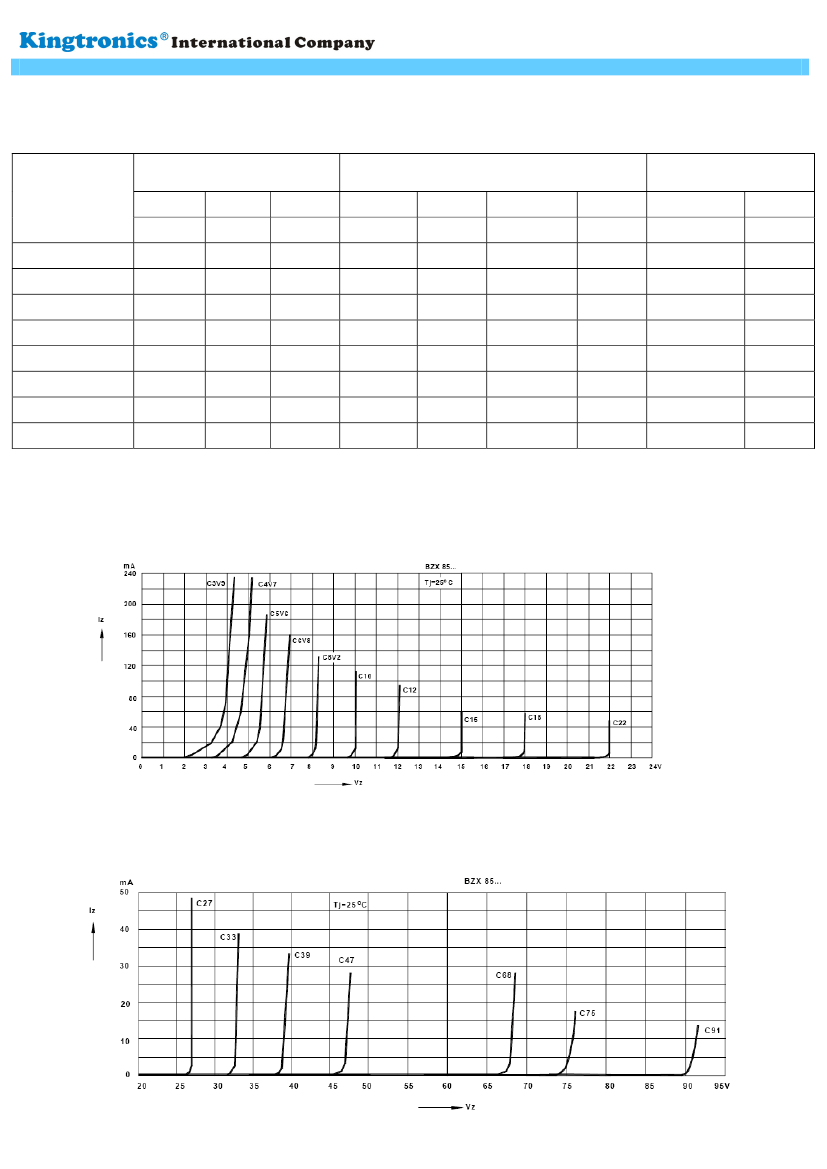

Characteristics at T

= 25

℃

Parameter

Thermal Resistance Junction to Ambient Air

Forward Voltage

at I

= 200 mA

Symbol

Max.

130

1.2

UNIT

thA

K/W

Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature.
