SPECIFICATIONS
Housing:
Shell:
Terminal:
C
Hi-Temp Plastic UL94V-0
Copper Alloy, Nickel Plating
Copper Alloy, Gold Plated on contact
Area, Tin Plated on Solder Area
Current Rating:
1 Amp Max
Withstanding:
100V AC for 1 minute
Contact Resistance:
50m OHMS Max
Insulation Resistance: 100M OHMS min at DC 100V
Operation Temp:
-0C ~ +50C
C
D
D
E
Series
CUSB
USB
Connector
Type
MB
MB=Mini B
F
RoHS compliant
Rev.
Description
Date
Approved
Ports/Gender/Cont/ Shell Plating
Contact Plating
Color
Options
Mount
CS22
1F5RS
N
SGXX
XX
XX
See dwg. Single Port Female, 5 N=Nickel
SGXX=Selective Gold WT=White Blank=None
Contacts, Surface
XX=Flash if blank, 5, BK=Black CP=Centering Pegs
mount
10, 15, 30u”
BG=Beige TRF=Tape & Reel
with film
Date
Central Components Manufacturing
03/20/09
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
03/20/09
03/20/09 Part No.:

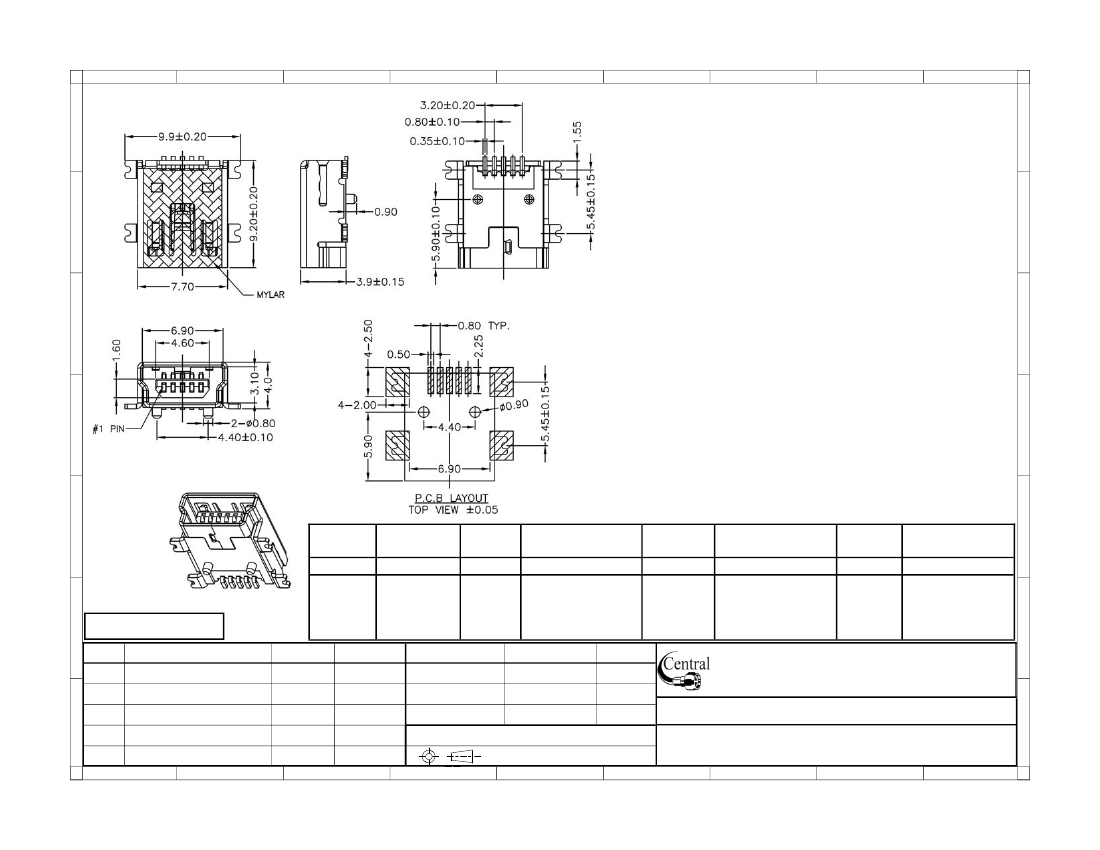

CUSB-MB-CS22-1F5RS-N-SGXX-XX-CP-XX
Description: Mini USB AB Type, PCB Mount, SMT, Metal Shield
Female
6
7
8
9
Style
E
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
