CAT8900D120TBGT3

Description
1-OUTPUT THREE TERM VOLTAGE REFERENCE, 1.25 V, PDSO3
CategoryPower/power management    The power supply circuit
File Size372KB，7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

CAT8900D120TBGT3 Overview

1-OUTPUT THREE TERM VOLTAGE REFERENCE, 1.25 V, PDSO3

CAT8900D120TBGT3 Parametric

Parameter NameAttribute value
Brand NameON Semiconduc
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeSOT-23
package instructionHALOGEN FREE AND ROHS COMPLIANT, TO-236, SOT-23, 3 PIN
Contacts3
Manufacturer packaging code527AG
Reach Compliance Codecompli
ECCN codeEAR99
Analog Integrated Circuits - Other TypesTHREE TERMINAL VOLTAGE REFERENCE
JESD-30 codeR-PDSO-G3
JESD-609 codee4
length2.92 mm
Number of functions1
Output times1
Number of terminals3
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output voltage1.205 V
Minimum output voltage1.195 V
Nominal output voltage1.2 V
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTO-236
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.12 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3 V
surface mountYES
Maximum voltage temperature coefficient50 ppm/°C
Temperature levelINDUSTRIAL
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Fine-tuning/adjustable outputNO
Maximum voltage tolerance0.42%
width1.3 mm

Preview

Download Datasheet

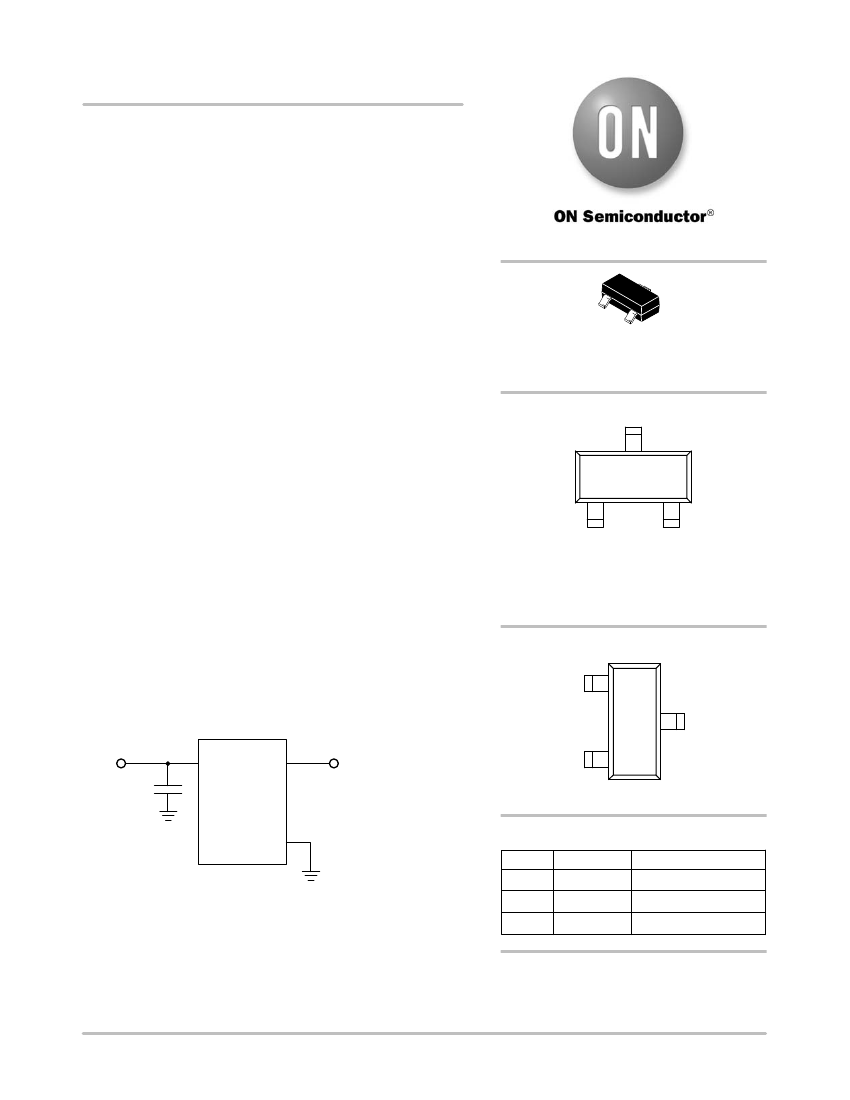

CAT8900
Precision Analog Voltage
References
The CAT8900 is a high precision voltage reference providing very
accurate voltage regulation with low supply current consumption.
CAT8900 is ideal for use in battery powered systems where
operating current needs to be minimized and there can be a great
variation in supply voltages. It will source or sink up to 10 mA of load
current, and can for most applications, forgo the use of an output
bypass capacitor. The device is supplied in a space saving three
terminal SOT−23 package.
Features
http://onsemi.com
•
Reference Voltages:
•
•
•
•
•
1.024 V, 1.200 V, 1.250 V, 1.800 V,
2.048 V, 2.500 V, 2.600 V,
3.000 V, 3.300 V
Low Supply Current: 450 nA (Typical)
Initial Accuracy:
Class B:
±
1.0 mV
Class C:
±
2.5 mV
Class D:
±
5.0 mV
Drift Performance: 50 ppm/°C
SOT−23 3−Lead Package
This Device is Pb−Free, Halogen Free/BFR Free, and RoHS
Compliant
Battery Powered Systems
A/D and D/A Converters
Precision Regulator Systems
Power Supplies
Portable Medical Equipment
SOT23−3
TP, TB SUFFIX
CASE 527AG
MARKING DIAGRAM
3
S3YM
1
2
Typical Applications
S3 = Specific Device Code
Y = Production Year
=
(Last Digit)
M = Production Month
=
(1
−
9, A, B, C)
•
•
•
•
•
PIN CONNECTIONS
1
V
IN
3
GND
2
V
OUT
V
OUT
(Top View)
V
IN
C
0.1
mF
V
IN
V
OUT
CAT8900
GND
Pin No.
1
PIN FUNCTIONS
Pin Name
V
IN
V
OUT
GND
Function
Supply Voltage Input
Output Voltage
Ground
Figure 1. Application Circuit
2
3
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
©
Semiconductor Components Industries, LLC, 2011
March, 2011
−
Rev. 7
1
Publication Order Number:
CAT8900/D
