BS1-011-H750-55/A datasheet, PDF

Datasheet> All Categories > The connector> The connector> BS1-011-H750-55/A

BS1-011-H750-55/A: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size395KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BS1-011-H750-55/A Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

BS1-011-H750-55/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.295 inch
body length	1.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BS1
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.429 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

2.54mm pitch Female Header - SMT -

Top & Bottom Entry

7.50mm & 5.00mm profile

Version and Foot style

500 & 750

501 & 751

Version 500 & 750

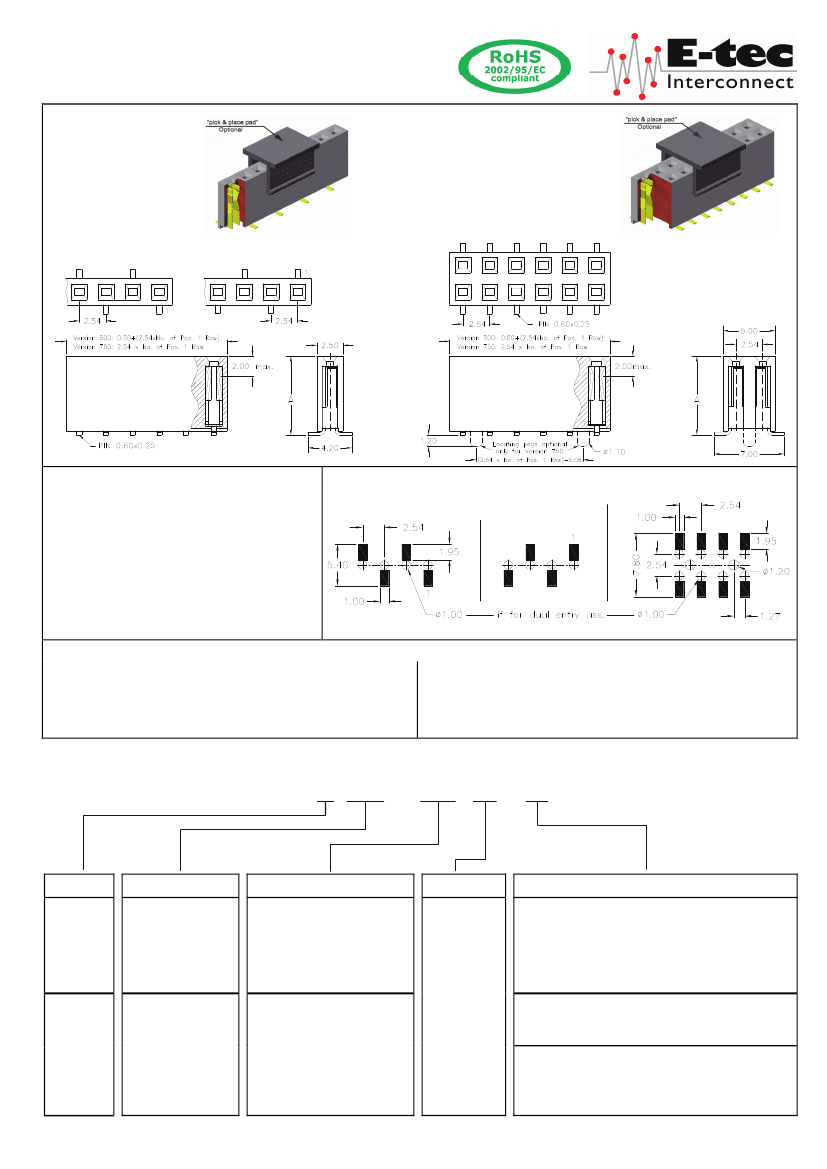

APPLICATION AND FEATURES

Standard: tube packing and

without “pick & place pad”

5.00mm & 7.50mm height above board.

Hi-rel dual beam contacts.

Mating with 2.54mm pitch, 0.64mm sq.

or round pin headers.

PCB

Surface Mount & Hole Layout

Version and Foot style

501 & 751

500 & 750

Version

500 & 750

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

-40° C to +105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

Nylon

UL 94 V-0

How to order

BS x - xxx - H xxx -

/ X

Rows

Nbr of contacts

single row

002

040

Version & Foot style

500

DIM “A” = 5.00 mm

501

(optional foot layout)

750

DIM “A” = 7.50 mm

751

(optional foot layout)

Pls. choose

500

750

style

if odd pin count

Plating

Packing and “pick & place pad” Option

tube packing; with pick & place pad

reel packing; with pick & place pad

= gold

dual row

500

004

080

750

DIM “A” = 5.00 mm

not available with locating pegs!

Other platings

on request

DIM “A” = 7.50 mm

without “locating pegs”

A =

tube packing; with pick & place pad

B =

reel packing; with pick & place pad

with “locating pegs”

C =

tube packing; without pick & place pad

D =

tube packing; with pick & place pad

E =

reel packing; with pick & place pad
