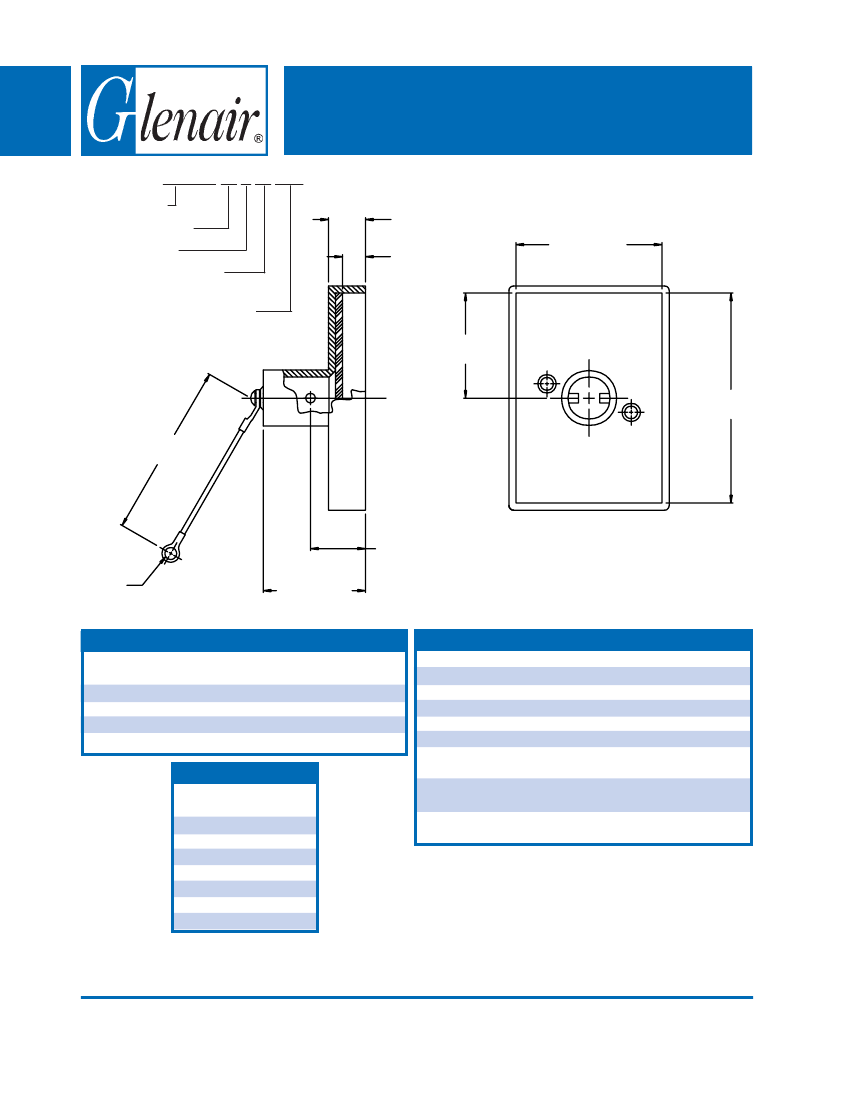

667-109
Protective Cover for
Hypertronics LPMY Connectors
667-109-15 C 09 -186
Basic Part No.
Shell Size (Table I)
Finish (Table III)
Ring Dash No. (Table II),
Omit for Standard
Post Bake Gasket For Space
Application, Omit if Not
Required
.340 (8.6)
.250 (6.4)
1.644 (41.8)
Hypertronics
B
A
9.00 (228.6)
.600 (15.2) Ref.
C Dia
Standard Dia = .125 (3.2)
1.25 (31.8)
Max
TABLE I: SHELL SIZE & CONNECTOR INTERFACE
Shell
Size
12
15
20
22
Mating
Connector
LPMY12/
LPMY15/
LPMY20/
LPMY22/
1.826
2.226
2.626
3.026
A
(46.4)
(56.5)
(66.7)
(76.9)
.913
1.113
1.313
1.513
B
(23.2)
(28.3)
(33.4)
(38.4)
Symbol
B
C
J
M
N
NF
T
TABLE III -FINISH OPTIONS
Finish
Cadmium Plate, Olive Drab
Black Anodize
Iridite, Gold Over Cadmium Plate over Nickel
Electroless Nickel
Cadmium Plate, Olive Drab, Over Nickel
Cadmium Plate, Olive Drab, Over Electroless
Nickel (1000 Hour Salt Spray)
Cadmium Plate, Bright Dip Over Nickel
(500 Hour Salt Spray)
CONSULT FACTORY FOR
OTHER AVAILABLE FINISHES
TABLE II: RING
Dash
No.
01
02
03
04
05
07
09
C
Dia
.140 (3.6)
.182 (4.6)
.191 (4.9)
.197 (5.0)
.167 (4.2)
.218 (5.5)
.156 (4.0)
1. Metric dimensions (mm) are indicated in parentheses.
2. Material/Finish:
Cover and Knob = Al Alloy/Table III
Hardware = SST/Passivate
Rope Covering = Teflon/N.A.
Gasket = Silicone/N.A.
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
H-10
