Memory Module Specifications
HX430C15SBK2/16
16GB (8GB 1G x 64-Bit x 2 pcs.)
DDR4-3000 CL15 288-Pin DIMM Kit
SPECIFICATIONS
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
15 cycles
46.5ns (min.)
260ns (min.)
33ns (min.)
TBD W*
94 V - 0
0
o
C to +85
o
C
-55
o
C to +100
o
C
*Power will vary depending on the SDRAM used.
DESCRIPTION

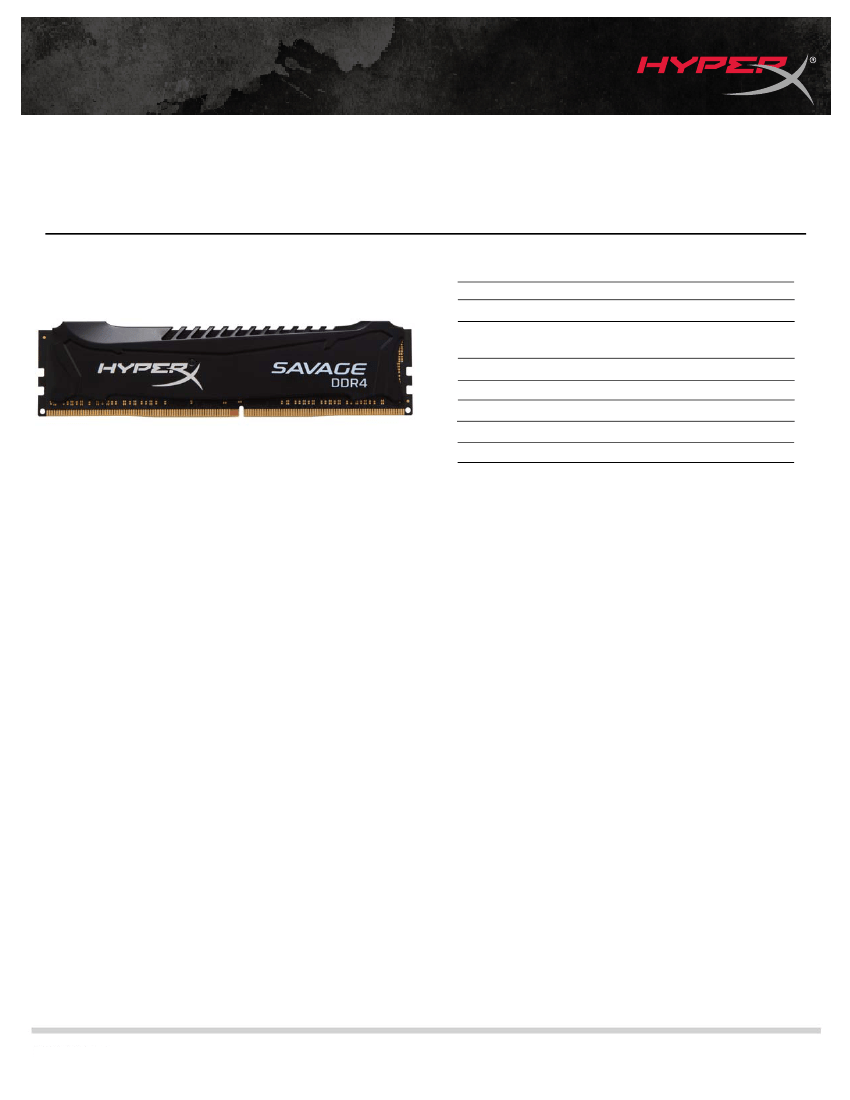

HyperX HX430C15SBK2/16 is a kit of two 1G x 64-bit (8GB)
DDR4-3000 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory
modules, based on sixteen 512M x 8-bit FBGA components per
module. Total kit capacity is 16GB. Each module supports
Intel® XMP (Extreme Memory Profiles). Each module has
been tested to run at DDR4-3000 at a low latency timing of
15-16-16 at 1.35V. The SPDs are programmed to JEDEC
standard latency DDR4-2133 timing of 15-15-15 at 1.2V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD = 2.25V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.36” (34.57mm)
XMP TIMING PARAMETERS
•
JEDEC: DDR4-2133 CL15-15-15 @1.2V
•
XMP Profile #1: DDR4-3000 CL15-16-16 @1.35V
•
XMP Profile #2: DDR4-2666 CL14-14-14 @1.35V
Continued >>
hyperxgaming.com
Document No. 4807424-001.A00
08/27/15
Page 1
continued
MODULE WITH HEAT SPREADER

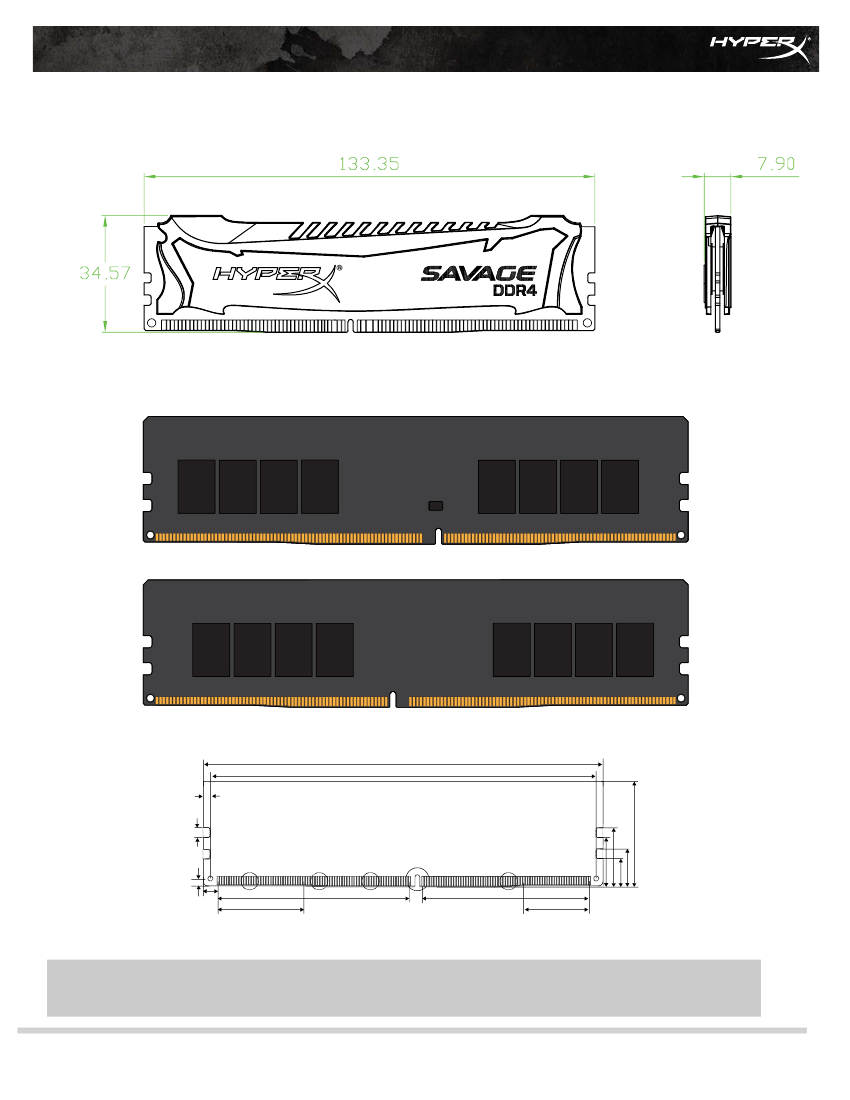

MODULE DIMENSIONS
133.35
129.55
2.10±0.15
±
3.00
2.70±0.15
Pin 1
Detail A
Pin 35
Detail B
Pin 47
Detail D
Detail E
Pin 105
Detail C
Pin 117
3.35
28.90
64.60
56.10
22.95
FOR MORE INFORMATION, GO TO HYPERXGAMING.COM
All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at
the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers
faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.
HyperX is a division of Kingston.
©2015 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708 USA.
All rights reserved. All trademarks and registered trademarks are the property of their respective owners.
Document No. 4807424-001.A00
14.60
17.60
8.00
11.00
31.25
Page 2
hyperxgaming.com
