2630-2-13-3-1-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2630-2-13-3-1-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking

2630-2-13-3-1-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.245 inch
subject depth	0.52 inch
body length	1.3 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2630
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	13
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

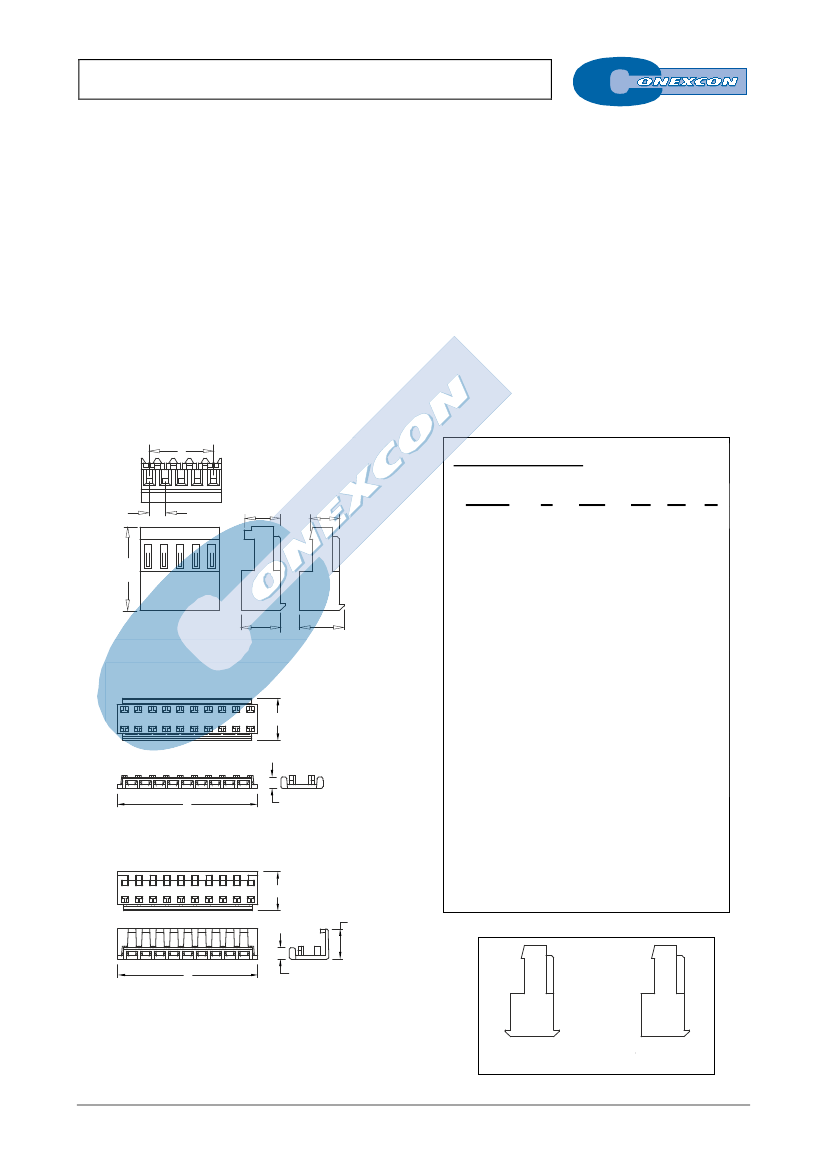

SINGLE ROW IDC CONNECTOR

2630 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 2 through 24 circuits



Mates with 2.54 mm pitch headers 2448, 2449 and

•



2546 series

Wires range : 22 AWG to 28 AWG O.D max. 1.80 mm

Twin insulation displacement slot. Optional: Dust cover

Optional: locking ramp and polarizing ribs



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ

Mechanical Features

Materials



Insulator:

Nylon

UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -25ºC to +85ºC

RoHS compliant



Contact retention force to the housing: > 1.5 Kgf



Insertion force to header: < 0.50 Kgf/pin



Withdrawal force from header: < 0.10 Kgf/pin



Durability: 25 cycles

Dimension Information

A

Ordering Information:

2.54

5.80

2630-

4.67

T-

2

XX- P- L- E

3

4

5

6

1

13.21

1. Connector Series

5

4

3

2

1

L1

6.22

L2

6.99

2. (T) Contact Plating



T =

2.

Tin plated

3. (XX) Number of circuits



Available in 2 through 24 circuits

COVER (Through)

Part Number:

2630-00NN

(NN= nº circ.)

4. (P) AWG Cable

9.14



P =

2.

22 AWG

P =

3.

24 AWG

P =

4.

26 AWG

P =

5.

28 AWG

5. (L) Polarizing Options

B

3.23



L =

1.

With locking ramp and polarizing rib



L =

2.

With locking ramp

6. (E) Connector type

COVER (End)

Part Number:

2630-01NN

(NN= nº circ.)

8.76



E =

1.

End connection



E =

2.

Through connection

8.76

B

3.23

Dimensions:

(In mm.)

A

= 2.54 x (XX*-1)

B

= 2.54 x (XX)

* XX

(Number of circuits)

Through connection

End connection

E-XX
