3986-2181 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3986-2181

3986-2181: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3986-2181 Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

3986-2181 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.126 inch
body length	2.806 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3986
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

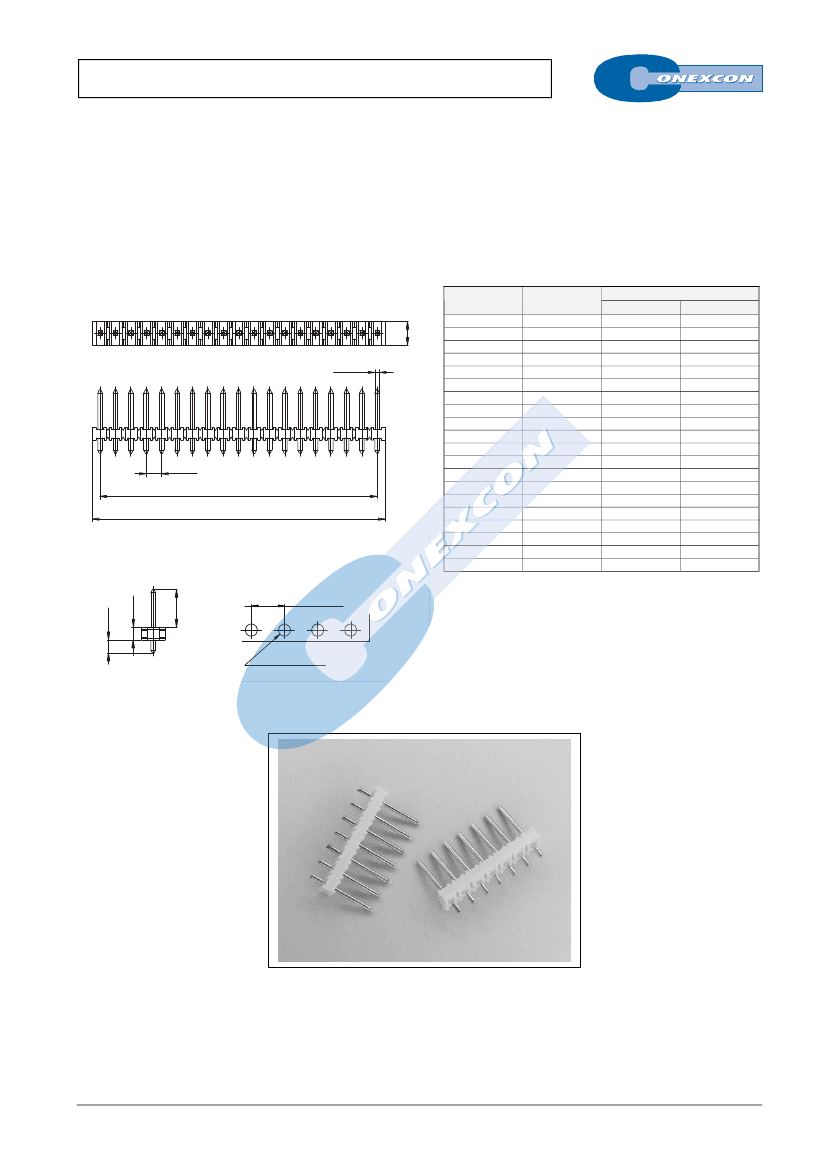

SINGLE ROW BREAKAWAY HEADER

3986 SERIES.

3.96mm(0.156”). Round Pin. For PCB Solder

Features



Available in 1through 20 circuits

Insulator Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) tin plated round pin in copper alloy

Pin omit options are available in any circuits





Mates with 3940, 3950, 3970, 3971 and 3972 series

socket and PCB connectors

With standoff to minimise flux retention



Dimensional Information

Ordering and Dimensional Information

Circuit Size

Part Number

3986- 2011

3986- 2021

3986- 2031

3986- 2041

3986- 2051

3986- 2061

3986- 2071

3986- 2081

3986- 2091

3986- 2101

3986- 2111

3986- 2121

3986- 2131

3986- 2141

3986- 2151

3986- 2161

3986- 2171

3986- 2181

3986- 2191

3986-2201

Dimensions

3,96(0,156)

7,92(0,312)

11,88(0,468)

15,84(0,624)

19,80(0,780)

23,76(0,935)

27,72(1,091)

31,68(1,247)

35,64(1,403)

39,60(1,559)

43,56(1,715)

47,52(1,871)

51,48(2,027)

55,44(2,183)

59,40(2,339)

63,36(2,494)

67,32(2,650)

71,28(2,806)

75,24(2,962)

3,96(0,156)

7,92(0,312)

11,88(0,468)

15,84(0,624)

19,80(0,780)

23,76(0,935)

27,72(1,091)

31,68(1,247)

35,64(1,403)

39,60(1,559)

43,56(1,715)

47,52(1,871)

51,48(2,027)

55,44(2,183)

59,40(2,339)

63,36(2,494)

67,32(2,650)

71,28(2,806)

75,24(2,962)

79,20(3,118)

.236

6.0

1.140

.045

3.96

.156

RECOMMENDED HOLE PATTERN

3.50

.138

3.2

.126

10.25

.404

3.960

0.05

.156

.002

Ø1.40

0.10

.055

.004
