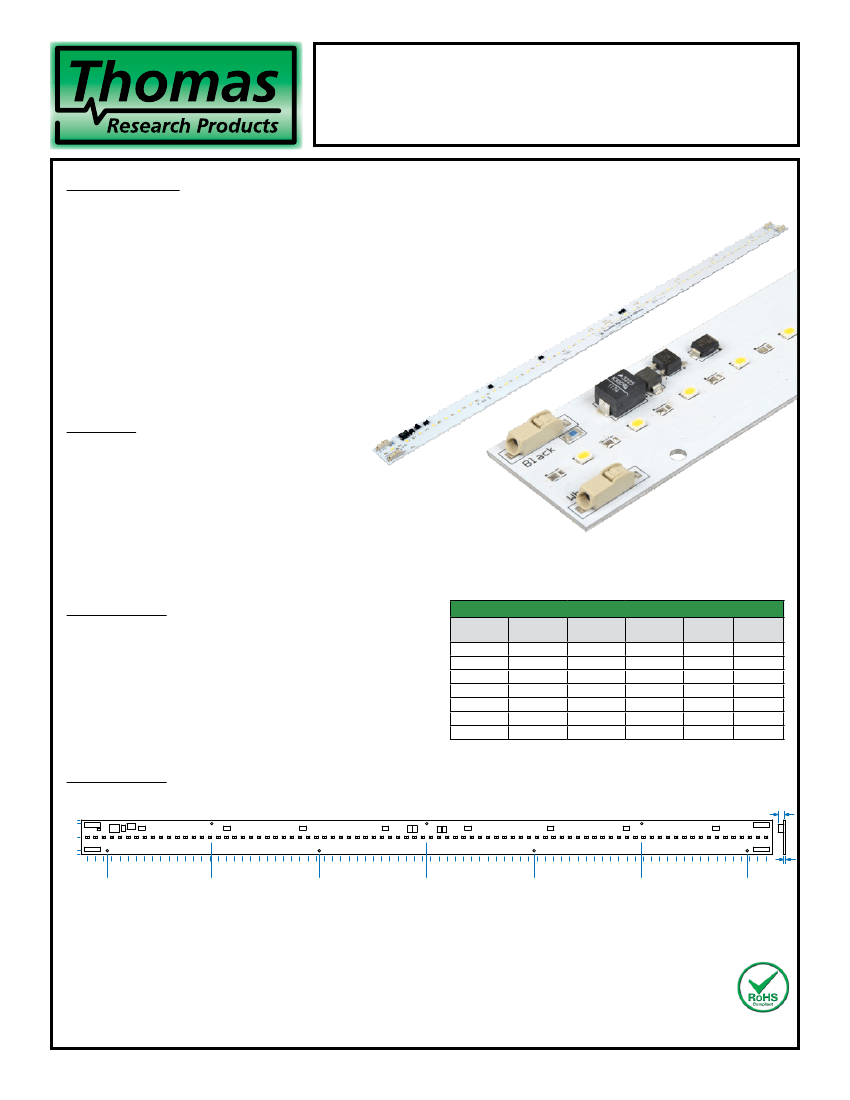

28W 120V AC 572mm Linear LED Module
AC LED Technology by Lynk Labs
Compatible with Phase-cut Dimmers
5 yr. Warranty
Specifications
Drive Voltage:
AC Current:
Power Dissipation:
Power Factor:
THD:
Life:
Luminous Flux:
Luminous Efficacy:
Viewing Angle:
Operating Temp:
Storage Temp:
Soldering Temp:
120Vac (100-132V Min-Max)
240 mA @25ºC typical; 290 mA max
28W typical; 36W max
>0.97
<20%
50,000 Hrs
see chart
see chart
120 deg
-25ºC to +100ºC
-40ºC to +100ºC
370ºC
Line voltage AC LED modules are easy to use, offering direct
connectivity and effectively replacing traditional lamp technologies.
Patented AC LED technology eliminates the need for an AC-DC driver.
Features
• Direct 120V line connection
• Compatible with most existing leading edge
or trailing edge phase cut AC Dimmers
• High Power Efficiency
• Significant Energy Savings
• Reliable, fast and easy
• Durable Light Source
• Long Operating Life
• Releasable Poke-in Connectors
Applications
• Troffer Replacement
• Fluorescent Tube Replacement
• Indoor/Outdoor General Line-voltage Illumination
• Ideal for commercial, hospitality or residential
572mm 120V AC Linear LED Module 28W
Model
Number
99046
99268
99047
99269
99048
99049
99050
Input
Power
(W)
28
28
28
28
28
28
28
Input
Voltage
(Vac)
120
120
120
120
120
120
120
Color
Temp
(K)
2200
2700
3000
3500
4000
5000
5700
Lumens
(±10%)
2193
2287
2333
2380
2427
2473
2497
LPW
78
82
83
85
87
88
89
Dimensions:
572 ±0.254 mm L x 28.6 ±0.254mm W x 4.8 mm H
14.3
11.2
0.0
11.2
14.3
280.7
273.9
266.7 267.1
260.4
253.6
246.9
240.1
233.3
226.6
219.8
213.0
206.3
199.5
192.7
186.0
179.2
177.8
177.8
165.7
158.9
152.2
145.4
138.6
131.9
125.1
118.4
111.6
104.8
98.1
91.3
88.9
84.5
77.8
71.0
64.2
57.5
50.7
44.0
37.2
30.4
23.7
16.9
10.1
3.4
0.0
3.4
10.1
16.9
23.7
30.4
37.2
44.0
50.7
57.5
64.2
71.0
77.8
84.5
88.9
91.3
98.1
104.8
111.6
118.4
125.1
131.9
138.6
145.4
152.2
158.9
165.7
172.5
177.8
179.2
186.0
192.7
199.5
206.3
213.0
219.8
226.6
233.3
240.1
246.9
253.6
260.4
266.7
267.1
273.9
280.7
1.2
4.8
Modules can be daisy-chained, limit of 10m per chain.
RECOGNIZED
COMPONENT
Specifications subject to change without notice. Trademarks are property of their respective owners.
Rev 4-9-15
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
28W 572mm 120V Linear
AC LED Light Engine
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 6

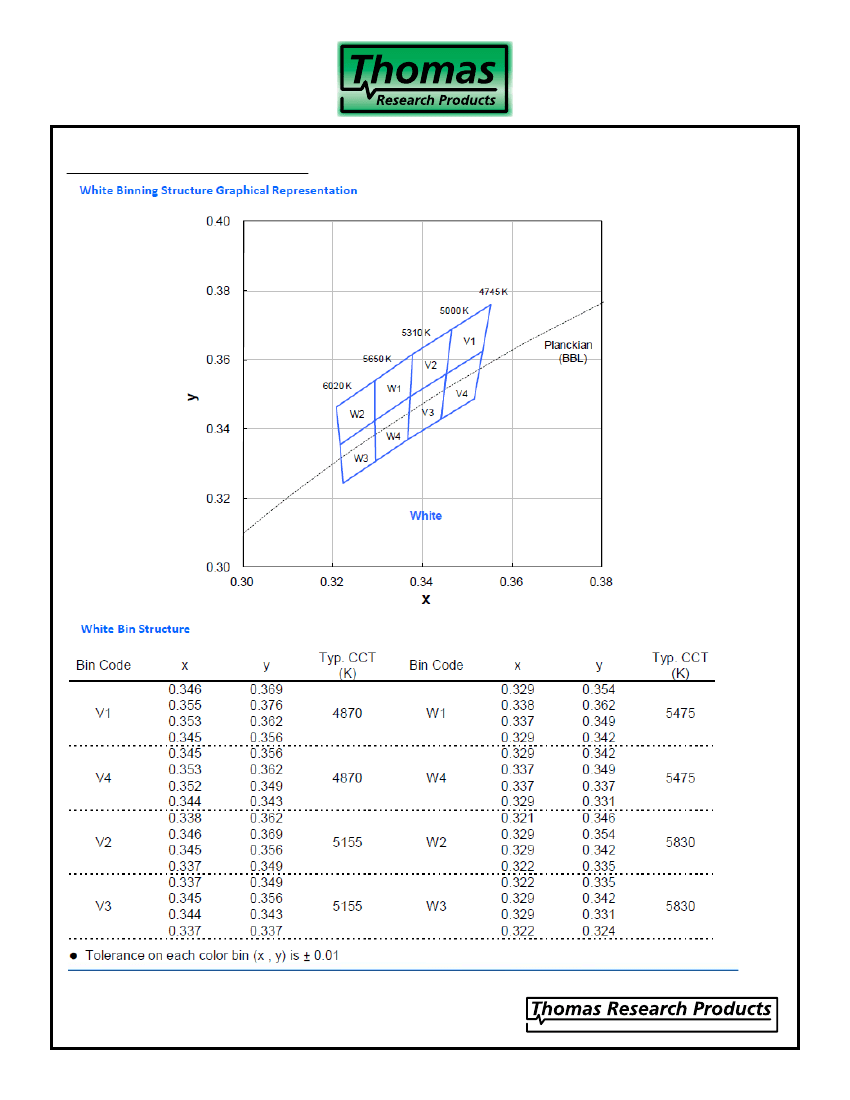

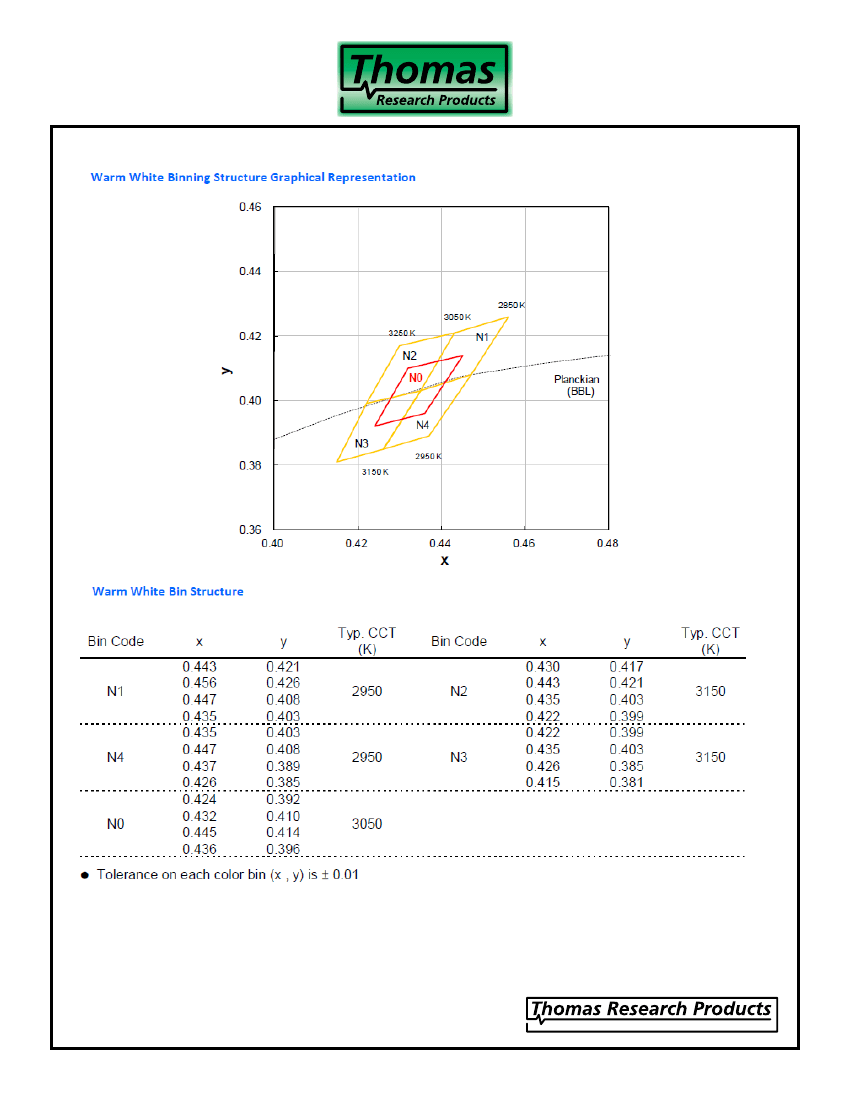

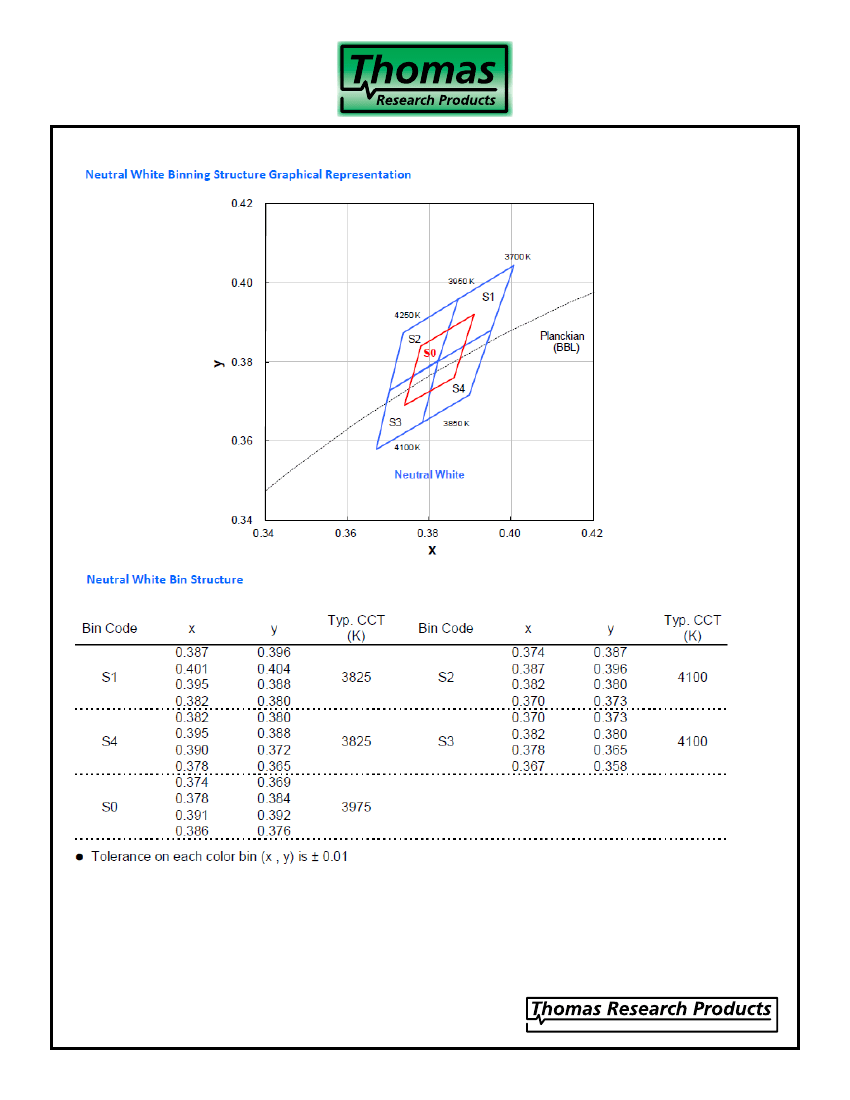

CIE Chromaticity Coordinates:
AC LED BY LYNK LABS
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
28W 572mm 120V Linear
AC LED Light Engine
SSL Solutions Faster Than The Speed Of Light
®
Pg 5 of 6
Typical Electrical & Optical Characteristic Curves:
120%
100%
80%
60%
40%
20%
0%
100V
105V
110V
115V
120V
125V
130V
(Ta=25°C)
Relative Power / Voltage
120%
100%
80%
60%
40%
20%
0%
100V
Relative Luminous Flux / Voltage
105V
110V
115V
120V
125V
130V
100%
95%
90%
85%
80%
75%
Lumen Thermal De-Rating Curve
70%
25° 30° 35° 40°
45° 50°
55° 60° 65° 70°
75° 80° 85°
(°C)
AC LED BY LYNK LABS
