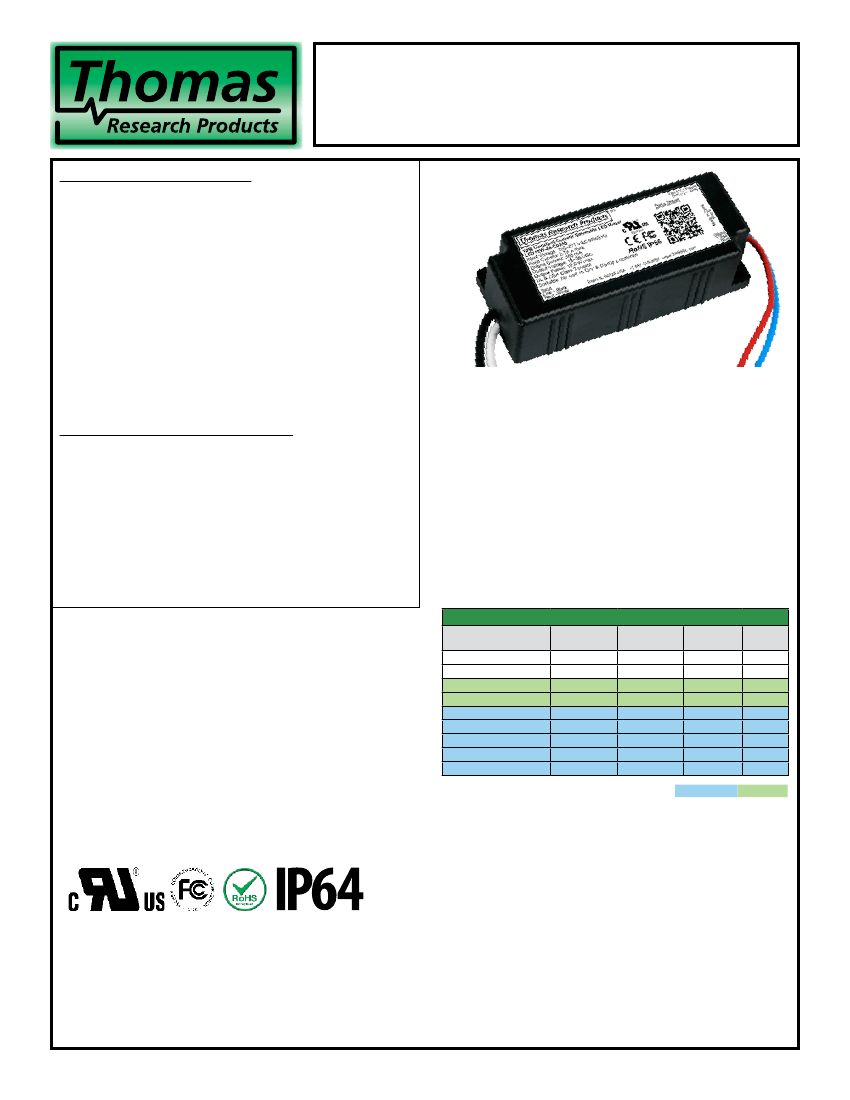

BLED-12W Series
Budget Series Switch Mode LED Drivers
Constant Current with Isolation
Black Magic Thermal Advantage™ Plastic Housing
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Line Regulation:
Load Regulation:
THD:
Leakage Current:
Hold Up Time:
Start-up Time:
Output Protection:
100-277 Vac Nom. (90-305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 120V; >0.80 @ full load, 277V
<10.0 A max @ 230 Vac, cold start 25ºC
0.18 A max @ 120 Vac; 0.10 A max @ 230 Vac
12W
± 4%
± 5%
< 20% @ full load
_
300 µA Typical
Half Cycle
< 1.0 S
Over-Voltage, Over-Current, Short Circuit (auto-recovery)
Environmental Specifications
Minimum Starting Temp:
Storage Temperature:
Maximum Case Temp.
Humidity:
Cooling:
Sound Rating:
Vibration Frequency:
MTBF:
Impact Resistance:
Weight:
-30ºC
-40ºC to +85ºC
90°C
5% to 95%
Convection
Class A
5 to 55 Hz/2g, 30 minutes
580,000 Hours @ full load, 40ºC per MIL-217F Notice 2
1g/s
3.9 oz. (110 g)
• Smaller footprint than our standard drivers
• Total Power: 12 Watts
• Input Voltage: 100-277 Vac
• Indoor Applications, IP64
• UL Dry or Damp Location Rated
• 2 year Warranty
Constant Current - Product Specifications
Model Number
BLED12W-150-C0080
BLED12W-100-C0120
BLED12W-048-C0250
BLED12W-043-C0280
BLED12W-036-C0350
BLED12W-024-C0500
BLED12W-018-C0660
BLED12W-016-C0800
BLED12W-012-C1000
Output Current Output Voltage
(mA ±5%)
Range
(Vdc)
80
120
250
280
350
500
660
800
1000
90-150
60-100
28-48
26-43
21-36
15-24
11-18
10-16
7-12
Class 2:
Max. Output
Typical
Power
(W)
Efficiency
12
12
12
12
12.6
12
12
12.8
12
US/Canada
89%
89%
88%
87%
86%
85%
84%
83%
82%
US Only
E332160
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 8-12-15
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
BLED12W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 2

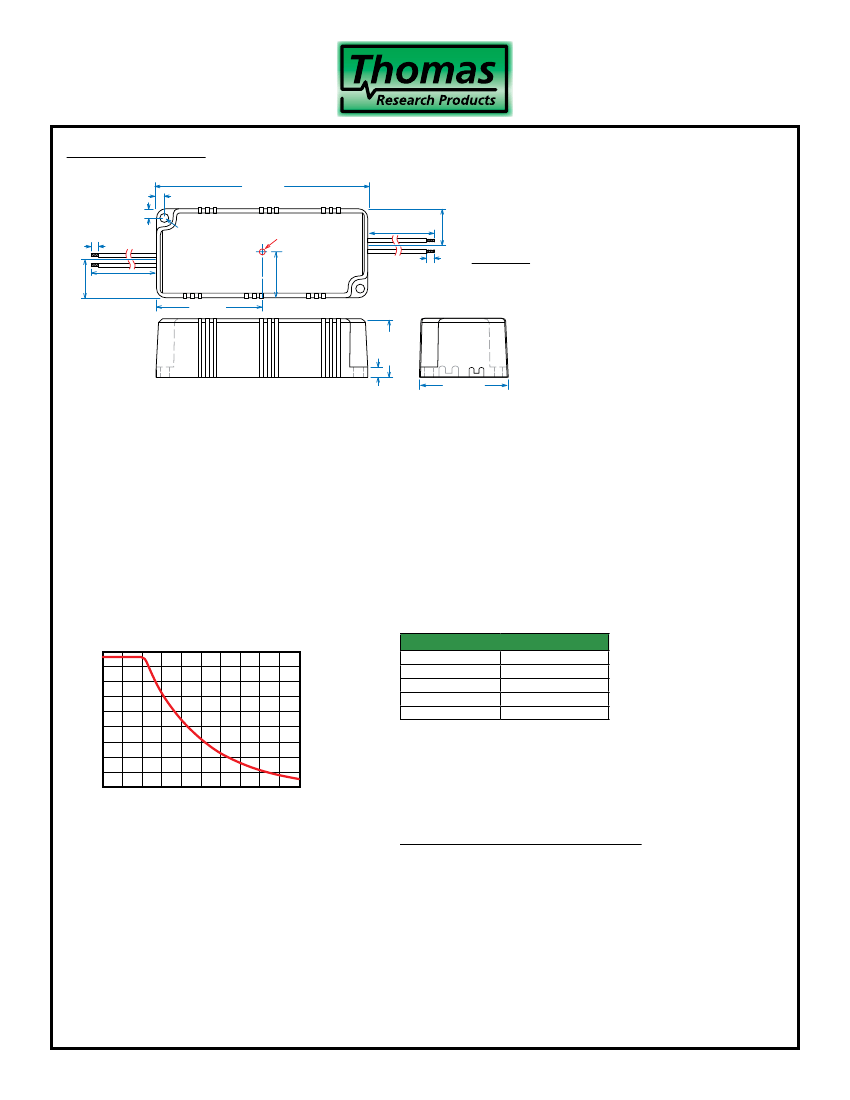

Dimensions - mm
0.39±0.04 [10.0±1]
0.14 [3.5]
2 x Ø 0.137 [3.5]
3.0 [75.9]
0.51 [13]
WIRE SPECS:
Input Leads:
18 AWG, rated 600 V, 105C, min.
Output Leads:
18 AWG, rated 300 V, 105C, min.
All wires are stranded with solder dipped ends.
1.23 [31.2]
0.14 [3.5]
HOT SPOT
0.7 [18]
5.91 Min [150 Min]
0.65 [16.5]
5.91 Min [150 Min]
Input
White (N)
Black (L)
0.39±0.04 [10.0±1]
Output
Red (+)
Blue (-)
1.5 [38.1]
0.98 [25]
135
120
Lifetime / Case Temperature
4
Safety and EMC Compliance
UL/CUL
CE
FCC, 47CFR Part 15
EN61000-3-2
EN61000-3-3
UL8750, CSA-C22.2
EN61347
Class B
Class C
Lifetime
(kHrs)
105
90
75
60
45
30
15
0
40
45
50
55
60
65
70
75
80
85
90
Case Hotspot Temperature
(°C)
Note:
Life calculations are based on reliability with confidence using
a 90% confidence level and <5% failure rate. At a confidence
level of 90% it is expected that <5% of the parts will fail at
the rated life provided. (Failure is defined as a driver drifting
outside specification, rather than fail to operate)
UL Conditions of Acceptability
See website for additional information
Note:
Disconnect power to LED driver for at least 30 seconds before connecting or disconnecting Driver output and LED Engine. This prevents potential arcing transients
that can damage the Engine and Driver. See Hot Plugging in our Driver Application Guide for more information.
