Tantalum Chip Capacitors
TCR series
Low ESR & High Ripple Current
Low ESR & High Ripple Current. High Resistance against Rush current.
Lower failure even at low impedance Circuits. Failure Rate: 0.5% or less / 1000 hrs.
Capacitance up to 1000µF in E case.
Specifications
Operating Temperature Range
Maximum Operating Temperature
at Rated Voltage
Capacitance Tolerance
Dissipation Factor
(Tan )
ESR & Maximum Ripple Current
DC Leakage Current
Resistance to Rush Current
Solderability
Humidity Test
High Temp
Load Test
Failure Rate
Conformity
-55°~+125°C
+85°C
±20% (M), ±10% (K) at 120Hz
As per the following table
As per the following table
As per the following table
Rated Voltage applied,
5A / ON • OFF 10,000 cycle
260°C 10 Sec. (Dip or Reflow)
Within 5% of recorded value
before test.
60°C, 90 – 95%RH 5000 hrs.
85°C, Rated Voltage Applied
for 2,000 hrs.
or 125°C, Derated Voltage Applied
for 2,000 hrs.
0.5% or less /1,000 hrs after solder
(60% CL)
JIS-C-5143 Performance HB,
EIA-535BAAC etc.
Standard Ratings and Case Codes
W.V.
Cap. ( F)
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
A
A
A
B
B
B
C
C
C
D
D
E
E
E
A
A
A
B
B
B
B,C
C
C,D
D
D
E
E
A
A
A
A,B
B
B
C
B,C,D
C,D
D
D
D,E
E
A
A
A
B
B
B
C
C
C,D
D
D
E
A
A
A
B
B
C
C
C
D
E
E
A
A
A
B
B
C
C
D
D
E
4
0G
6.3
0J
10
1A
16
1C
20
1D
25
1E
35
1V
A
A
B
B
C
C
C
D
D
D,E
Dimensions
L
H
W
1000
Unit: mm (inch)
Case Code
A
B
C
D
a
a
L
W
H
a
b
3.2 ± 0.2
1.6 ± 0.2
1.6 ± 0.2
0.8 ± 0.2
1.2 ± 0.2
(0.126 ± 0.008) (0.063 ± 0.008) (0.063 ± 0.008) (0.031 ± 0.008) (0.047 ± 0.008)
3.5 ± 0.2
2.8 ± 0.2
1.9 ± 0.2
0.8 ± 0.3
2.2 ± 0.2
(0.138 ± 0.008) (0.110 ± 0.008) (0.075 ± 0.008) (0.031 ± 0.012) (0.087 ± 0.008)
6.0 ± 0.2
3.2 ± 0.2
2.5 ± 0.2
1.3 ± 0.3
2.2 ± 0.2
(0.236 ± 0.008) (0.126 ± 0.008) (0.098 ± 0.008) (0.051 ± 0.012) (0.087 ± 0.008)
7.3 ± 0.2
4.3 ± 0.2
2.8 ± 0.2
1.3 ± 0.3
2.4 ± 0.2
(0.287 ± 0.008) (0.169 ± 0.008) (0.110 ± 0.008) (0.051 ± 0.012) (0.094 ± 0.008)
7.3 ± 0.2
4.3 ± 0.2
4.1 ± 0.2
1.3 ± 0.3
2.4 ± 0.2
(0.287 ± 0.008) (0.169 ± 0.008) (0.162 ± 0.008) (0.051 ± 0.012) (0.094 ± 0.008)
b
E
5900 Shepherd Mountain Cove • Austin, TX 78730
Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365
e-mail: sales@venkel.com • www.venkel.com
5
Tantalum Chip Capacitors
TCR SERIES DATA TABLE
(Low ESR)
Standard Part Numbers & Data
Cap.
µF
Case
Code
Catalogue
P/N
.0V DC
6.8
10
15
33
47
68
100
150
220
330
470
680
1000
A
A
A
B
B
C
C
C
D
D
E
E
E
TA 4R0 TCR 685 K or M A R
TA 4R0 TCR 106 K or M A R
TA 4R0 TCR 156 K or M A R
TA 4R0 TCR 336 K or M B R
TA 4R0 TCR 476 K or M B R
TA 4R0 TCR 686 K or M C R
TA 4R0 TCR 107 K or M C R
TA 4R0 TCR 157 K or M C R
TA 4R0 TCR 227 K or M D R
TA 4R0 TCR 337 K or M D R
TA 4R0 TCR 477 K or M E R
TA 4R0 TCR 687 K or M E R
TA 4R0 TCR 108 K or M E R
6.V DC
4.7
6.8
10
15
22
33
47
47
68
100
100
150
220
330
470
A
A
A
B
B
B
B
C
C
C
D
D
D
E
E
TA 6R3 TCR 475 K or M A R
TA 6R3 TCR 685 K or M A R
TA 6R3 TCR 106 K or M A R
TA 6R3 TCR 156 K or M B R
TA 6R3 TCR 226 K or M B R
TA 6R3 TCR 336 K or M B R
TA 6R3 TCR 476 K or M B R
TA 6R3 TCR 476 K or M C R
TA 6R3 TCR 686 K or M C R
TA 6R3 TCR 107 K or M C R
TA 6R3 TCR 107 K or M D R
TA 6R3 TCR 157 K or M D R
TA 6R3 TCR 227 K or M D R
TA 6R3 TCR 337 K or M E R
TA 6R3 TCR 477 K or M E R
0.5
0.5
0.63
0.95
1.39
2.08
3.0
2.96
4.28
6.3
6.3
9.45
13.86
20.79
28.2
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
2.50
2.50
2.50
0.80
0.80
0.80
0.40
0.30
0.27
0.24
0.20
0.20
0.16
0.15
0.10
220
220
220
410
410
410
410
660
690
740
870
870
970
1060
1280
0.5
0.5
0.6
1.32
1.88
2.72
4
6
8.8
13.2
18.8
27.4
40.0
8
8
8
8
8
8
8
8
8
8
8
15
15
2.50
2.50
2.50
0.80
0.80
0.30
0.27
0.24
0.22
0.17
0.15
0.10
0.10
220
220
220
410
410
660
690
740
830
940
1060
1285
1410
Max. DCL
@ +5°C
(µA)
Max. DF
@ +5°C
0 Hz (%)
Max. ESR
00 kHz
(W)
Max. Ripple
Current
(mA@ 5°C)
6
5900 Shepherd Mountain Cove • Austin, TX 78730
Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365
e-mail: sales@venkel.com • www.venkel.com
TCR SERIES DATA TABLE
(Low ESR)
Standard Part Numbers & Data
Cap.
µF
Case
Code
Catalogue
P/N
0V DC
3.3
4.7
6.8
10
10
15
22
33
47
47
47
68
68
100
150
220
220
330
A
A
A
A
B
B
B
C
B
C
D
C
D
D
D
D
E
E
TA 010 TCR 335 K or M A R
TA 010 TCR 475 K or M A R
TA 010 TCR 685 K or M A R
TA 010 TCR 106 K or M A R
TA 010 TCR 106 K or M B R
TA 010 TCR 156 K or M B R
TA 010 TCR 226 K or M B R
TA 010 TCR 336 K or M C R
TA 010 TCR 476 K or M B R
TA 010 TCR 476 K or M C R
TA 010 TCR 476 K or M D R
TA 010 TCR 686 K or M C R
TA 010 TCR 686 K or M D R
TA 010 TCR 107 K or M D R
TA 010 TCR 157 K or M D R
TA 010 TCR 227 K or M D R
TA 010 TCR 227 K or M E R
TA 010 TCR 337 K or M E R
6V DC
2.2
3.3
4.7
6.8
10
15
22
33
47
47
68
100
150
A
A
A
B
B
B
C
C
C
D
D
D
E
TA 016 TCR 225 K or M A R
TA 016 TCR 335 K or M A R
TA 016 TCR 475 K or M A R
TA 016 TCR 685 K or M B R
TA 016 TCR 106 K or M B R
TA 016 TCR 156 K or M B R
TA 016 TCR 226 K or M C R
TA 016 TCR 336 K or M C R
TA 016 TCR 476 K or M C R
TA 016 TCR 476 K or M D R
TA 016 TCR 686 K or M D R
TA 016 TCR 107 K or M D R
TA 016 TCR 157 K or M E R
0.5
0.53
0.75
1.09
1.6
2.4
3.52
5.28
7.52
7.85
10.88
16
24
8
8
8
8
8
8
8
8
8
8
8
8
8
2.50
2.50
2.50
0.80
0.80
0.80
0.30
0.25
0.25
0.22
0.20
0.16
0.15
220
220
220
410
410
410
660
720
720
780
870
970
1060
0.5
0.47
0.68
1.0
1.0
1.5
2.2
3.3
4.7
4.7
4.7
6.8
6.8
10
15
22
22
33
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
2.50
2.50
2.50
2.00
1.00
0.80
0.80
0.30
0.50
0.25
0.25
0.25
0.22
0.10
0.10
?.??
0.10
0.10
220
220
220
220
320
410
410
660
450
720
720
720
780
870
970
????
1060
1280
Max. DCL
@ +5°C
(µA)
Max. DF
@ +5°C
0 Hz (%)
Max. ESR
00 kHz
(W)
Max. Ripple
Current
(mA@ 5°C)
5900 Shepherd Mountain Cove • Austin, TX 78730
Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365
e-mail: sales@venkel.com • www.venkel.com
7
Tantalum Chip Capacitors
TCR SERIES DATA TABLE
(Low ESR)
Standard Part Numbers & Data
Cap.
µF
Case
Code
Catalogue
P/N
Max. DCL
@ +5°C
(µA)
0V DC
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
A
A
A
B
B
C
C
C
D
E
E
TA 020 TCR 155 K or M A R
TA 020 TCR 225 K or M A R
TA 020 TCR 335 K or M A R
TA 020 TCR 475 K or M B R
TA 020 TCR 685 K or M B R
TA 020 TCR 106 K or M C R
TA 020 TCR 156 K or M C R
TA 020 TCR 226 K or M C R
TA 020 TCR 336 K or M D R
TA 020 TCR 476 K or M E R
TA 020 TCR 686 K or M E R
5V DC
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
A
A
A
B
B
C
C
D
D
E
TA 025 TCR 105 K or M A R
TA 025 TCR 155 K or M A R
TA 025 TCR 225 K or M A R
TA 025 TCR 335 K or M B R
TA 025 TCR 475 K or M B R
TA 025 TCR 685 K or M C R
TA 025 TCR 106 K or M C R
TA 025 TCR 156 K or M D R
TA 025 TCR 226 K or M D R
TA 025 TCR 336 K or M E R
5V DC
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
22
A
A
B
B
C
C
C
D
D
E
E
TA 035 TCR 684 K or M A R
TA 035 TCR 105 K or M A R
TA 035 TCR 155 K or M B R
TA 035 TCR 225 K or M B R
TA 035 TCR 335 K or M C R
TA 035 TCR 475 K or M C R
TA 035 TCR 685 K or M C R
TA 035 TCR 106 K or M D R
TA 035 TCR 156 K or M D R
TA 035 TCR 226 K or M E R
TA 035 TCR 226 K or M E R
0.5
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
10
10
8
8
8
8
8
8
8
8
8
8
8
4.00
3.30
1.60
1.60
0.70
0.60
0.60
0.30
0.30
0.25
0.25
160
160
250
250
430
470
470
710
710
820
820
0.5
0.5
0.63
0.95
1.39
2.08
2.96
4.28
6.3
9.45
8
8
8
8
8
8
8
8
8
8
3.30
3.30
3.30
1.60
1.60
0.50
0.50
0.30
0.30
0.25
160
160
160
250
250
510
510
710
710
820
0.5
0.5
0.66
0.94
1.36
2
3
4.4
6.6
9.4
13.6
8
8
8
8
8
8
8
8
8
8
8
3.30
3.30
3.30
1.60
1.60
0.50
0.50
0.50
0.30
0.30
0.25
160
160
160
250
250
510
510
510
710
750
820
Max. DF
@ +5°C
0 Hz (%)
Max. ESR
00 kHz
(W)
Max. Ripple
Current
(mA@ 5°C)
All components in this section are RoHS compliant per the EU directives and definitions.
8
5900 Shepherd Mountain Cove • Austin, TX 78730
Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365
e-mail: sales@venkel.com • www.venkel.com

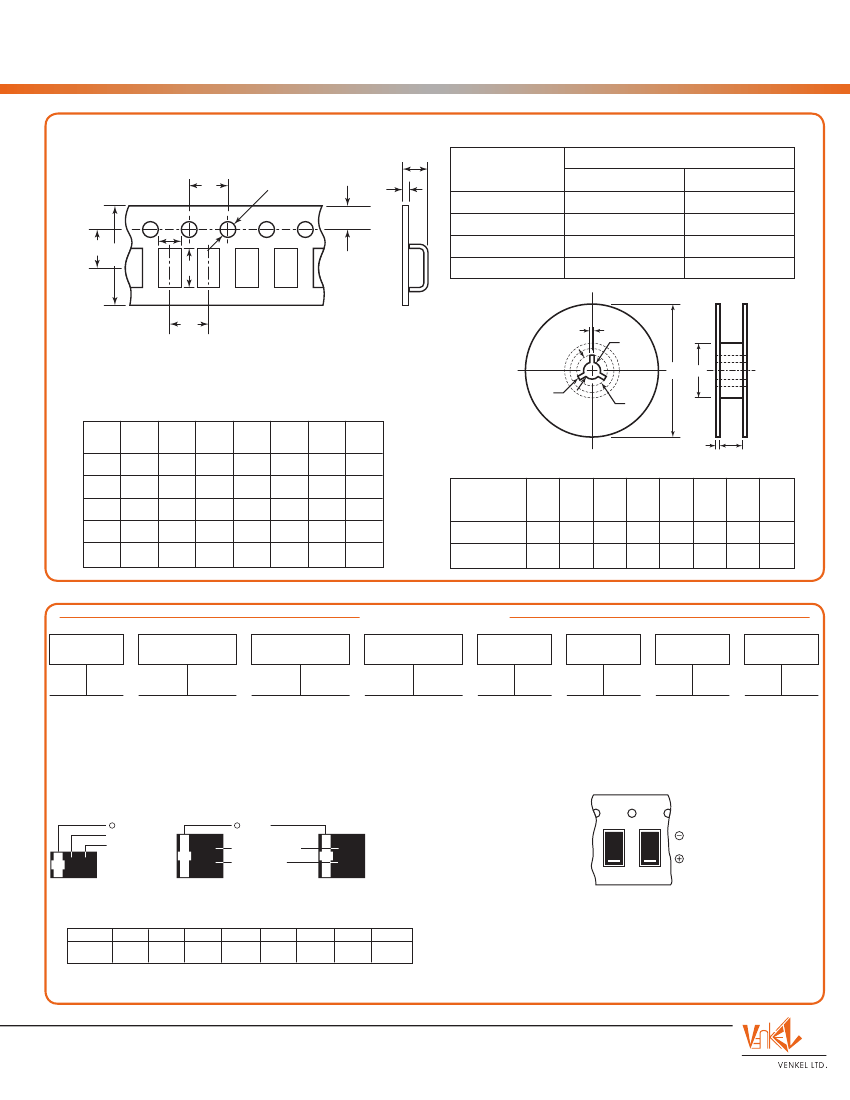

Taping Specifications
Carrier Tape
p
Ø1.5
±0.1
-0
1.75±0.1
t
a
c
b
t
d
Quantity per reel
Case Size
7"
A
B
C, D, E
E
2,000 pcs
2,000 pcs
500 pcs
400 pcs
Reel Size
13"
10,000 pcs
7,500 pcs
2,500 pcs
2,000 pcs
w
Reel
E
C
A
B
Carrier Tape Dimensions
CASE
A
B
C
D
E
a
± 0.
1.9
3.1
3.9
4.6
4.6
b
± 0.
3.9
3.9
6.3
7.7
7.7
c
± 0.
8.0
8.0
12.0
12.0
12.0
t
± 0.
2.0
2.3
2.7
3.3
4.2
p
± 0.
4.0
4.0
4.0
4.0
4.0
R
(Unit: mm)
w
± 0.
4.0
4.0
8.0
8.0
8.0
d
D
t
W
0.2
0.2
0.3
0.3
0.3
Reel Dimensions
Case Size
A, B,
C, D, E
A
+0
-.0
180
330
B
-0
60
60
C
D
E
W
t
± 0. ± 0.8 ± 0.5 ± 0. ± 0.5
13.0
13.0
21.0
21.0
2.0
2.0
9.0
13.0
2.0
2.0
R
1.0
1.0
How To Order
TA
035
TCM
105
M
B
R
-13
Tantalum
Rated Voltage
6.3V–006 (TCM series)
6.3V–6R3 (TCR series)
35V–035
Series
TCM
TCR
Marking*
(1) A Case
+ Polarity
Rated Voltage
Capacitance in pF
(2) B, C, D, E Case
+ Polarity
Capacitance
in picofarads
First two figures
are significant.
Third is the number
of zeros to follow.
1.0
µF
- 105
22
µF
- 226
100
µF
- 107
22
10V
(22µF 10V)
Capacitance
Tolerance
±20%:
M
±10%:
K
Case Code
A, B, C,
D, E
Packaging
Tape
R: See below.
White bar indicates
positive terminal.
For 13 inch
reels add -13,
leave blank
for standard
7 inch reels
C105
(1.0µF 16V)
226
10V
(22µF 10V)
Capacitance in pF
Rated Voltage
“R”
T
50V
CODE
Rated
Voltage
g
4V
J
6.3V
A
10V
C
16V
D
20V
E
25V
V
35V
Standard termination finish for this product is 00% matte Tin (Sn)
*
Marking codes can be either way depending on customer needs and what is available in stock.
All 6.3V rated Tantalums will typically be marked as 6 or 6V.
All components in this section are RoHS compliant per the EUdirectives
and definitions.
Please Note: Venkel offers Engineering Kits for this product. See page 7 for details.
5900 Shepherd Mountain Cove • Austin, TX 78730
Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365
e-mail: sales@venkel.com • www.venkel.com
9
京公网安备 11010802033920号
EEWORLD
