E Series Standard Force
E21
E22
E23
E31
E33
E34
0.1 amp
3 amp
5 amp
1 amp
10 amp
15 amp
Miniature
Features
I
6 current ratings AC
I
3 current ratings DC
I
Choice of actuator styles
I
Choice of terminals
I
3 contact arrangements
I
Long life coil spring mechanism
I
Custom designs
I
Agency approved extended life
versions
I
High temperature versions
available

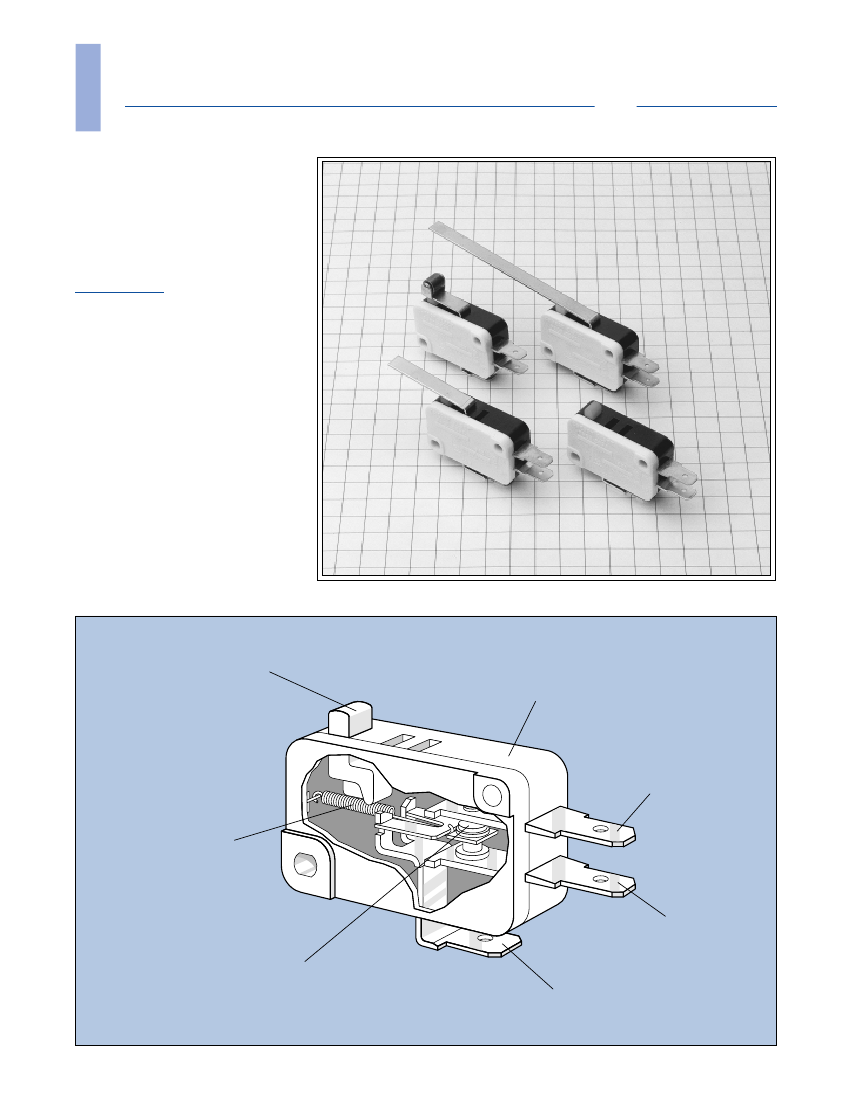

Thermoplastic
Actuating Button
Phenolic Case
NC Terminal
Stainless Steel
Spring
NO Terminal
Silver Contacts or Gold
Crosspoint Contacts
Common Terminal
3-18
E Series Standard Force
Dimensions:
Inches (mm)
0.020 (0.51) Thk x 0.187 (4.75) Wide
Q.C. Terminal
0.406
+
0.015
-
(10.31
+
0.38)
-
0.125
(3.16)
0.250
(6.35)
Miniature
or
®
3
0.250
(6.35)
0.797
+
0.010
-
(20.24
+
0.25)
-
0.110 (2.79)
Dia.
0.122 (3.10)
0.050
(1.27)
Dia.
0.110
(2.79)
0.625
+
0.015
-
(15.88
+
0.38)
-
0.406
(10.31)
COM
N.C.
N.O.
0.087
(2.21)
0.234
(5.94)
0.110 (2.79) 0.120 (3.05)
x
0.122 (3.10) 0.132 (3.35)
0.465 (11.81)
0.110 (2.79)
0.875 (22.23)
1.093
+
0.015
-
(27.76
+
0.38)
-
0.106 (2.69)
Reference Line
0.397
+
0.015
-
+
0.020 (10.08
+
0.38)
-
0.035
-
(0.89
+
0.508)
-
0.109
(2.77)
Contacts and Ratings
Series
Prefix
E21
Temperature Rating
DC Recognition
E22
Temperature Rating
DC Recognition
E23
Temperature Rating
E31
Temperature Rating
E33
Temperature Rating
DC Recognition
E34
Temperature Rating
Flammability Rating
Rating
0.1 amp 125 VAC
Gold Crosspoint Contacts
-40° to +85°C. 130°C,150°C optional
-00DC 0.25 amp, 30VDC
3 amp 125/250 VAC, 1/10 H.P., 250 VAC
Silver Alloy Contacts
-40° to +85°C. 130°C,150°C optional
-00DC 0.1 amp, 125VDC
5 amp 1/4 H.P., 125/250 VAC
Silver Alloy Contacts
-40° to +85°C. 130°C,150°C optional
1 amp 125 VAC
Gold Crosspoint Contacts
-40° to +85°C
10 amp 1/2 H.P., 125/250 VAC
Silver Alloy Contacts
-40° to +85°C. 130°C,150°C optional
-00DC 6 amp, 30VDC
15 amp 1/2 H.P., 125/250 VAC
Silver Alloy Contacts
-40° to +85°C. 130°C,150°C optional
UL94HB
Electrical
Specifications/Life
See electrical life chart on page 11-4.
3-19
E Series Standard Force
Actuators
Many special forms and lengths of actuators are available.
Standard type integral hinged lever and roller actuators are
available in choice of 2 mounting positions. Actuator lengths
are dimensioned from centerline of switch mounting hole as
shown.
Actuator Length
Miniature
Terminals
Choice of screw, solder, or two quick connect terminals.
Screw
Q.C.
Solder
Short Solder
Q.C.
0.187
0.099
Dia. Hole
0.234
0.240
0.250
0.234
N.C.
N.O.
Standard
Ratio
Switch
Mtg Hole
N.C.
N.O.
0.234
N.C.
N.O.
0.234
N.C.
N.O.
High
Ratio
0.177
0.355
Circuitry
Contact arrangement available in choice of single pole
double throw or single pole single throw, either normally
open or normally closed. In general normally open may
be specified by changing suffix number from 00 to 01
and normally closed by changing suffix number to 02.
Note:
0.187'' Quick Connect terminals are standard.
Normally, to order screw terminals add 10 to suffix number.
To order solder terminals add 20 to suffix number and to
order 0.250" Q.C. terminals add 40 to suffix number.
Terminal
QC 0.187
Screw
Solder
Short Solder
QC 0.250
SPDT
-00A
-10A
-20A
-30A
-40A
SPSTNO
-01A
-11A
-21A
-31A
-41A
SPSTNC
-02A
-12A
-22A
-32A
-42A
Mounting
Recommended mounting screw size: #4-40 round head.
Recommended torque on screw: 4 inch lbs. max.
How to Order
Select the current rating you need. Combine the
corresponding Series/Prefix number with the appropriate
suffix number for the switch type, circuitry and terminals
you require.
Materials
E21, E22
Case
Actuating Button
Common Terminals
NO & NC Terminals
Moving Blade
Contacts
Spring
Auxilliary Actuators
Roller
General Purpose Phenolic
Thermoplastic Acetal
Silver Plated Brass
Brass
Spring Brass
E22: Silver Alloy
E21: Gold Crosspoint
Stainless Steel
Aluminum
Sintered Stainless Steel
E23, E33, E31
General Purpose Phenolic
Thermoplastic Acetal
Silver Plated Brass
Brass
E23: Brass
E33: Silver Plated Beryllium Copper
E23, E33: Silver Alloy
E31: Gold Crosspoint
Stainless Steel
Cold-rolled Steel
(Nickel Plated)
Sintered Stainless Steel
E34
General Purpose Phenolic
Thermoplastic Acetal
Silver Plated Copper
Copper
Silver Plated
Beryllium Copper
Silver Alloy
Stainless Steel
Cold-rolled Steel
(Nickel Plated)
Sintered Stainless Steel
3-20
E Series Standard Force
Miniature
Characteristics:
OF – Operating Force, PT – Pretravel, OP – Operating Point,
OT – Overtravel, MD – Movement Differential, AL – Actuator Length
Switch Types
OF
Max. gms.
PT
Max. inches
OP*
Inches
OT
Min. inches
MD
Max. Inches
AL
Inches
Tolerance
±
.031
3
E21
75
-00A
E22
75
E33
285
E22
75
E33
285
E22
35
E33
144
E22
20
E33
86
E22
75
E33
285
E22
35
E33
144
E22
25
E33
86
E22
35
E33
144
E23
170
E34
400
E23
170
E34
400
E23
86
E34
200
E23
51
E34
120
E23
170
E34
400
E23
86
E34
200
E23
51
E34
120
E23
86
E34
200
E31
170
E21
75
0.047
0.578
±
0.020
0.050
0.010
—
0.062
-00H
E31
170
E21
35
0.600
±
0.020
0.050
0.016
0.865
0.125
-50H
E31
86
E21
20
0.600
±
0.045
0.085
0.030
1.400
0.220
-50HL
E31
51
E21
75
0.600
±
0.075
0.130
0.040
1.580
0.047
-00K
E31
170
E21
35
0.806
±
0.030
0.040
0.010
0.810
-50K
E31
86
E21
25
E31
51
E21
35
0.125
0.806
±
0.045
0.085
0.030
1.340
0.200
0.806
±
0.075
0.120
0.040
1.516
-50KL
0.125
-50P
E31
86
1.045
±
0.045
0.085
0.030
1.340
Remarks:
* Measured above reference line. Refer to dimensional drawing on page 3-19.
3-21
