Single Driver for GaAs FET Switches and Attenuators
Rev. V3
Features
High Speed CMOS Technology
Complementary Outputs
Positive Voltage Control
Low Power Dissipation
Plastic SOIC Package for SMT Applications
Tape and Reel Packaging Available
Lead-Free SOIC-8 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of DR65-0109
Logic Diagram
Output A
V
IN
Output B
Description
M/A-COM's MADRCC0005 is a Single channel
driver used to translate TTL control inputs into
complementary gate voltages for GaAs FET
microwave switches and attenuators. High speed
analog CMOS technology is utilized to achieve low
power dissipation at moderate to high speeds,
encompassing most microwave switching
applications.
Pin Configuration
Pin No.
1
2
3
4
5
Function
V
CC
V
IN
GND
GND
GND
Output A
Output B
V
EE
Ordering Information
Part Number
MADRCC0005
MADRCC0005TR
6
7
Package
Bulk Packaging
1000 piece reel
8
Note: Reference Application Note M513 for reel size
information.
Guaranteed Operating Ranges
Symbol
VCC
V
EE
V
CC-
V
EE
T
A
I
OH
I
OL
T
rise
, T
fall
Parameter
1
Positive DC Supply Voltage
Negative DC Supply Voltage
Positive to Negative Supply Range
Operating Ambient Temperature
DC Output Current - HIGH
DC Output Current - LOW
Maximum Input Rise or Fall Time
Unit
V
V
V
°C
mA
mA
nS
Min
4.5
-5.5
9.0
-40
—
—
—
Typical
5.0
-5.0
10.0
+25
—
—
—
Max
5.5
-4.5
11.0
+85
-1.0
1.0
500
1. All voltages are relative to GND
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADRCC0005
Single Driver for GaAs FET Switches and Attenuators
Rev. V3
AC & DC Characteristics Over Guaranteed Operating Range
Symbol
VIH
V
IL
V
OH
V
OL
I
IN
I
CC
T
PHL,
T
PLH
T
THL,
T
TLH
Parameter
Input HIGH Voltage
Input LOW Voltage
Output HIGH Voltage
Output LOW Voltage
Input Leakage Current
Quiescent Supply Current
Propagation Delay
Output Transition Time
Delay Skew,
Output A to Output B
Test Conditions
Guaranteed HIGH Input Voltage
Guaranteed LOW Input Voltage
I
OH
= -1 mA
I
OL
= 1 mA
V
IN
= V
CC
or GND
V
CC
= Max
V
EE
= Max
V
EE
= Max
V
EE
= Min
V
EE
= Min
V
IN
= V
CC
or GND
Units
V
V
V
V
µA
µA
nS
nS
nS
Min
2.0
-
- 0.1
—
-1.0
—
—
—
—
Typ
—
—
—
—
0
—
—
—
—
Max
-
0.8
-
V
EE
+ 0.1
1.0
400
50
25
8
Guaranteed -40° C to + 85° C
Guaranteed -40° C to + 85° C
Guaranteed -40° C to + 85° C
See Switching Wave Forms for the definition of the switching terms.
Supplies must be by-passed with .01 µF Capacitors.
Absolute Maximum Ratings
2,3
Switching Waveforms
INPUT
V
IN
90%
1.3 V
10%
LOGIC 0
Parameter
V
CC
V
EE
LOGIC 1
Absolute Maximum
- .5V to + 6.0 V
- 6.0 V to - .5 V
12 V
V
CC
+ .5 V
V
EE
- .5 V
-65°C to +150°C
T
F
T
R
V
CC
- V
EE
V
IN 4
V
OUT
Storage Temperature
T
PLH
OUTPUT A
V
OUT
50%
OUTPUT B
10%
90%
T
PHL
GND
2.
3.
T
THL
V
EE
T
TLH
4.
Exceeding any one or combination of these limits may cause
permanent damage to this device.
M/A-COM does not recommend sustained operation near
these survivability limits.
Standard CMOS TTL interface, latch-up will occur if logic
signal is applied prior to power supply.
Handling Procedures
Please observe the following precautions to avoid
damage:
Truth Table
Input
V
IN
0
1
A
V
EE
GND
Static Sensitivity
Silicon Integrated Circuits are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these devices.
2
Outputs
B
GND
V
EE
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MADRCC0005
Single Driver for GaAs FET Switches and Attenuators
Rev. V3

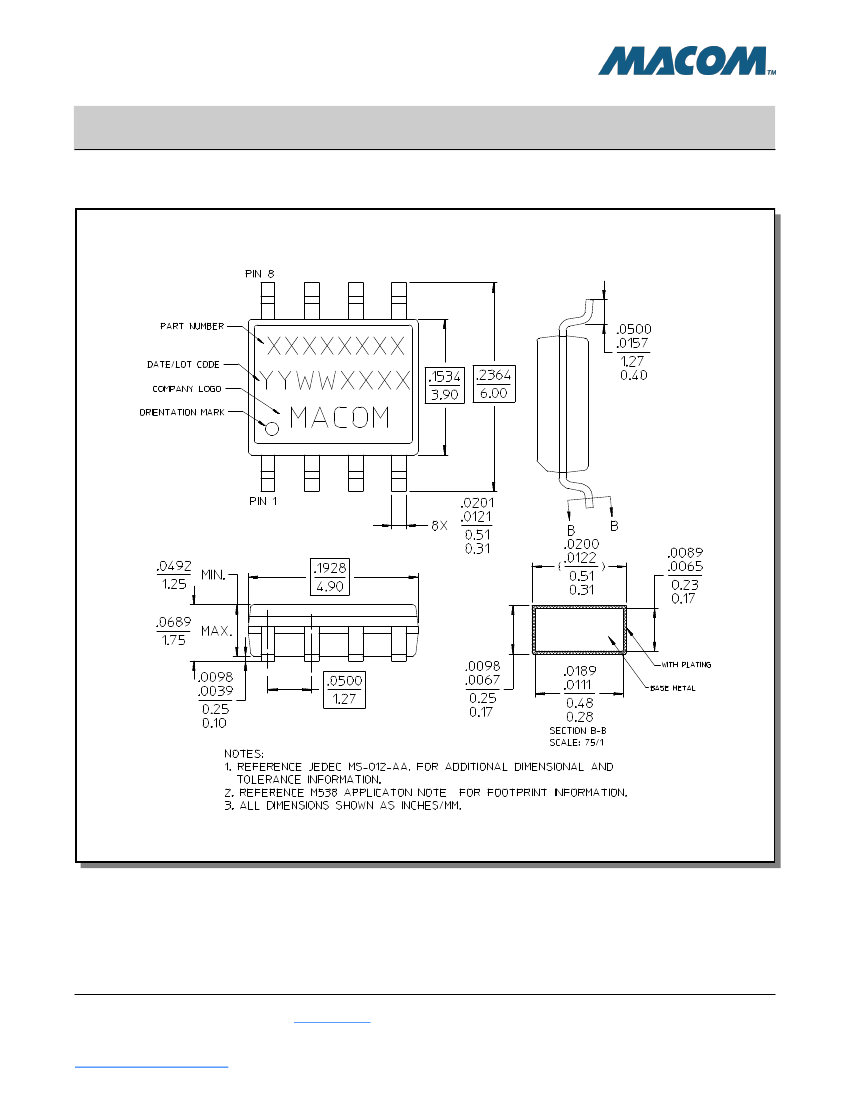

Lead-Free,
