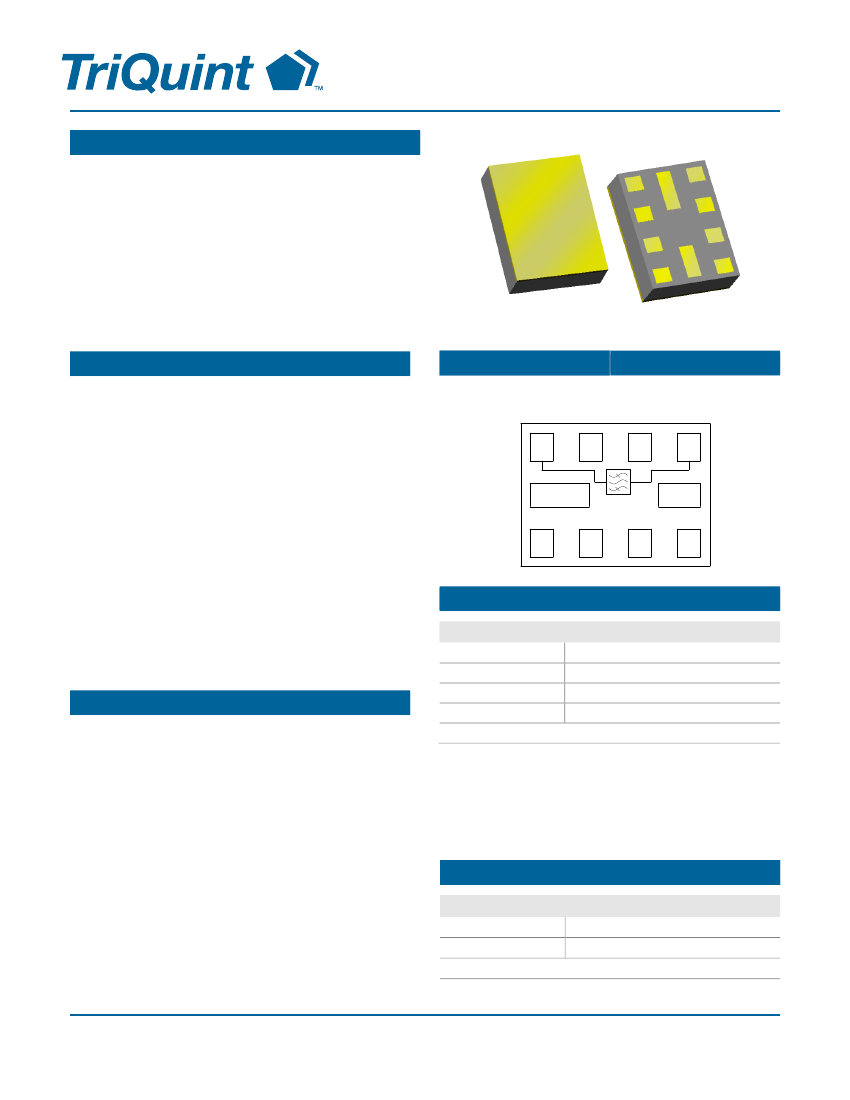

2332.5 MHz BAW Filter
Applications
Satellite Radio antenna modules
Satellite Radio devices
Suitable for Automotive applications - Compliant to
the AEC-Q200 reliability standard
CSP- 1713, 1.7 x 1.3 x 0.46 mm
Product Features
Temperature-compensated bandpass filter
Enables Coexistence of SDARS and WCS radios
Low Loss in full SDARS Radio Channel 2320-2345
MHz band
High Rejection in the 2305-2315 MHz band: WCS
Lower
High Rejection in 2350-2355 MHz band: WCS
Upper
Industry-leading small size: 1.7 x 1.3 x .46 mm
+ 24 dBm (CW) power handling (min)
Performance across - 40 to + 85 ºC
Operable to + 125 ºC
Single-ended operation
Ceramic chip-scale package (CSP)
Hermetically sealed package
RoHS compliant, Pb-free
Functional Block
Top View
Diagram
9
10
1
2
3
8
7
6
5
4
Pin Configuration - Single Ended
Pin No.
9
6
7, 8
1,2,3,4,5,7,8,10
Label
Input
Output
Ground
Ground
(1)
General Description
885014 is a high-performance, high-power Bulk
Acoustic Wave (BAW) filter with extremely steep skirts
and a 25 MHz pass band.
885014 is specifically designed to enable coexistence
of SDARS and WCS signals within the same device
or in close proximity to one another. The part passes
the entire SDARS band, covering 2320-2345 MHz.
The 885014 uses advanced and inexpensive
packaging techniques to achieve an industry-leading
1.7 x 1.3 x .46 mm package. The filter exhibits
excellent power handling capabilities.
1. see pg 3 for ground considerations
Ordering Information
Part No.
885014
885014-EVB-2
Description
Product description
Evaluation board description pg3
Standard T/R size = 10,000 units/reel
Data Sheet: Rev A 06/02/14
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
885014
2332.5 MHz BAW Filter
Electrical Specifications
(1)
Test conditions unless otherwise noted: Temp= - 40 °C to + 85 °C
(2,3,6)
Parameter
Center Frequency
Maximum Insertion Loss
Passband 3.0 dB Bandwidth
Amplitude Ripple
(3)
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
Group Delay Ripple
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
Input and Output Impedance
Input Return Loss
Output Return Loss
(4)
Relative Attenuation
(FM)
-
-
-
(WCS A-Lower)
(WCS B-Lower)
(6)
(WCS B-Lower)
(WCS A-Upper)
(WCS B-Upper)
-
(5)
Conditions
Fc of RF Filter
2320.000 – 2345.000 MHz
Fc = 2332.5 MHz
2320.000 – 2324.500 MHz (TDM1)
2324.200 – 2328.000 MHz (COFDM)
2328.000 – 2332.500 MHz (TDM2)
2332.500 – 2334.385 MHz (SAT1A)
2334.385 – 2336.250 MHz (SAT2A)
2336.250 – 2337.750 MHz (TERRA)
2337.750 – 2341.250 MHz (TERRB)
2341.250 – 2343.125 MHz (SAT2B)
2343.125 – 2345.000 MHz (SAT1B)
2320.000 – 2324.500 MHz (TDM1)
2324.200 – 2328.000 MHz (COFDM)
2328.000 – 2332.500 MHz (TDM2)
2332.500 – 2334.385 MHz (SAT1A)
2334.385 – 2336.250 MHz (SAT2A)
2336.250 – 2337.750 MHz (TERRA)
2337.750 – 2341.250 MHz (TERRB)
2341.250 – 2343.125 MHz (SAT2B)
2343.125 – 2345.000 MHz (SAT1B)
Single ended (unbalanced)
2320 – 2345 MHz
88 – 108 MHz
880 – 960 MHz
1710 – 1910 MHz
2000 – 2100 MHz
2305 – 2310 MHz
2310 – 2315 MHz
2310 – 2315 MHz @ 95 °C
2350 – 2355 MHz
2355 – 2360 MHz
2400 – 2500 MHz
Min
(3)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ
(2)
2332.5
5.0
31
1.1
0.4
0.4
0.4
0.4
0.2
0.3
0.5
1.1
15
10
10
5
5
8
10
5
5
50
13.3
10.8
58
39
36
36
21
6
4
11
28
38
Max
(3)
-
7.0
-
1.4
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.4
70
70
70
60
60
70
70
60
60
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
dB p-p
dB p-p
dB p-p
dB p-p
dB p-p
dB p-p
dB p-p
dB p-p
dB p-p
ns
ns
ns
ns
ns
ns
ns
ns
ns
Ohms
dB
dB
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
-
6
6
36
20
20
20
16
4
3.5
4
16
20
Notes:
1. All specifications are based on the TriQuint schematic for reference design shown on page 3.
2. Typical values are based on average measurements at + 25 °C.
3. In production, devices will be tested at room temperature to a guard-banded specification to ensure electrical compliance
over temperature, this limit is based on average performance over temperature.
4. Attenuation is defined from the insertion loss level measured at the center frequency Fc.
5. This is the optimum impedance in order to achieve the performance shown.
6. Extended temperature operation: The filter can be operated up to + 95 °C with de-rated specification as noted.
Data Sheet: Rev A 06/02/14
© 2014 TriQuint
-
2 of 6
-
Disclaimer: Subject to change without notice
885014
2332.5 MHz BAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
RF Input Power
(3)
(1)
(2)
Rating
- 40 to + 125 °C
- 40 to +125 °C
+ 24 dBm
Operable Temperature
1. Operation of this device outside the parameter ranges given
may cause permanent damage
2. Specifications are not guaranteed over all operable
conditions
3. Input Power with applied CW signal equivalent to + 55°C for
10k hours

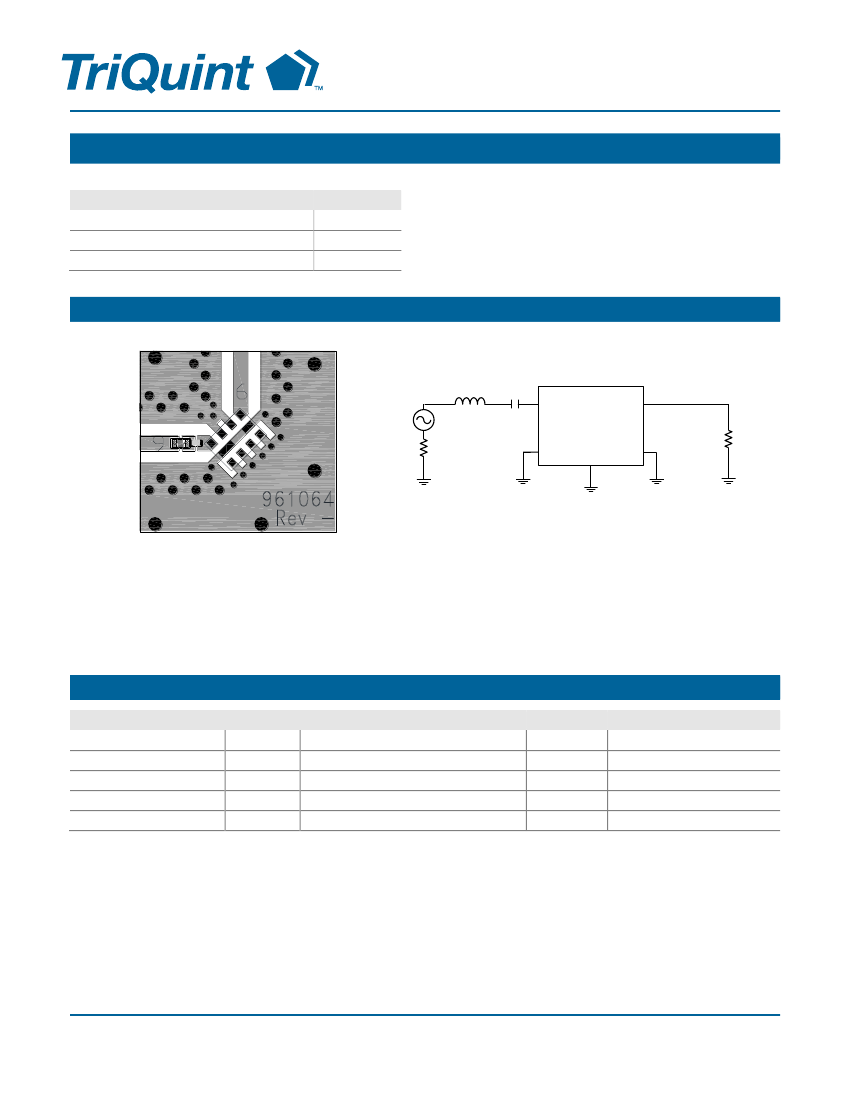

885014 Reference Design
Top View zoomed in
9.1nH
0.4pF
9
6
50
50
10 1,2,3,4,7,8
5
Notes:
1. Impedance matching required (series tank)
2. Trace width nominal 50 Ohms
3. PCB: .580 x.580 x .062; Construction (5 layer stack-up): ½ oz Cu Top Layer; Dielectric: Taconic TLY-5A (.0075); ½ oz Cu
Middle Layer, FR4; ½ oz Cu Bottom Layer; total thickness (0.062) (dimensions are in inches). Contact TriQuint for Gerber
files
Bill of Material – 885014-EVB Design
Reference Des.
U1
L1
C1
SMA
PCB
Value
N/A
9.1 nH
0.4 pF
N/A
N/A
Description
CSP 1713, 2332.5 MHz Baw Filter
0201 chip Inductor, +/- 0.1 nH
0105 chip cap, +/- 0.04 pF
SMA connector
PC board
Inc.
Manuf.
TriQuint Fl
Murata
Murata
Radiall USA
Multiple
Part Number
885014
LQP03TN9N1J02
GRM0225C1CR40BD05D
9602-1111-018
961064
Data Sheet: Rev A 06/02/14
© 2014 TriQuint
-
3 of 6
-
Disclaimer: Subject to change without notice
885014
2332.5 MHz BAW Filter

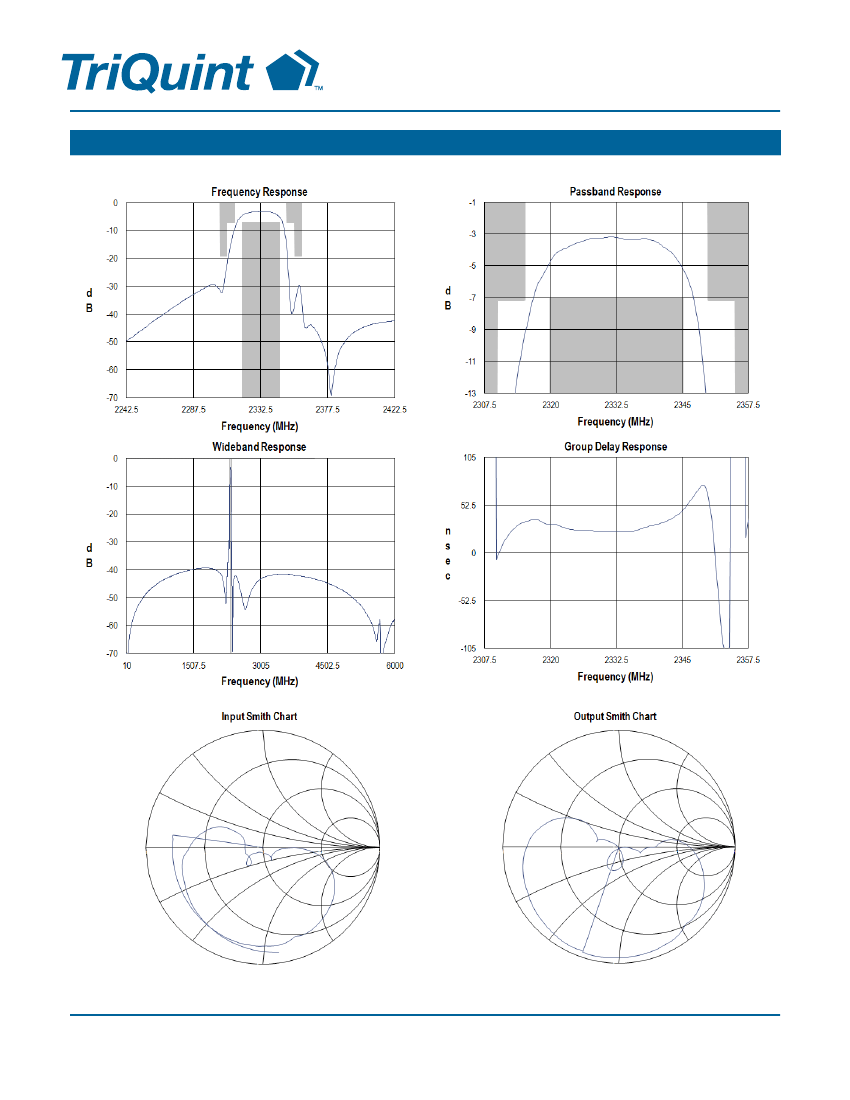

Performance Plots - Reference Design
Test conditions unless otherwise noted: Temp= + 25 °C
Data Sheet: Rev A 06/02/14
© 2014 TriQuint
-
4 of 6
-
Disclaimer: Subject to change without notice
885014
2332.5 MHz BAW Filter

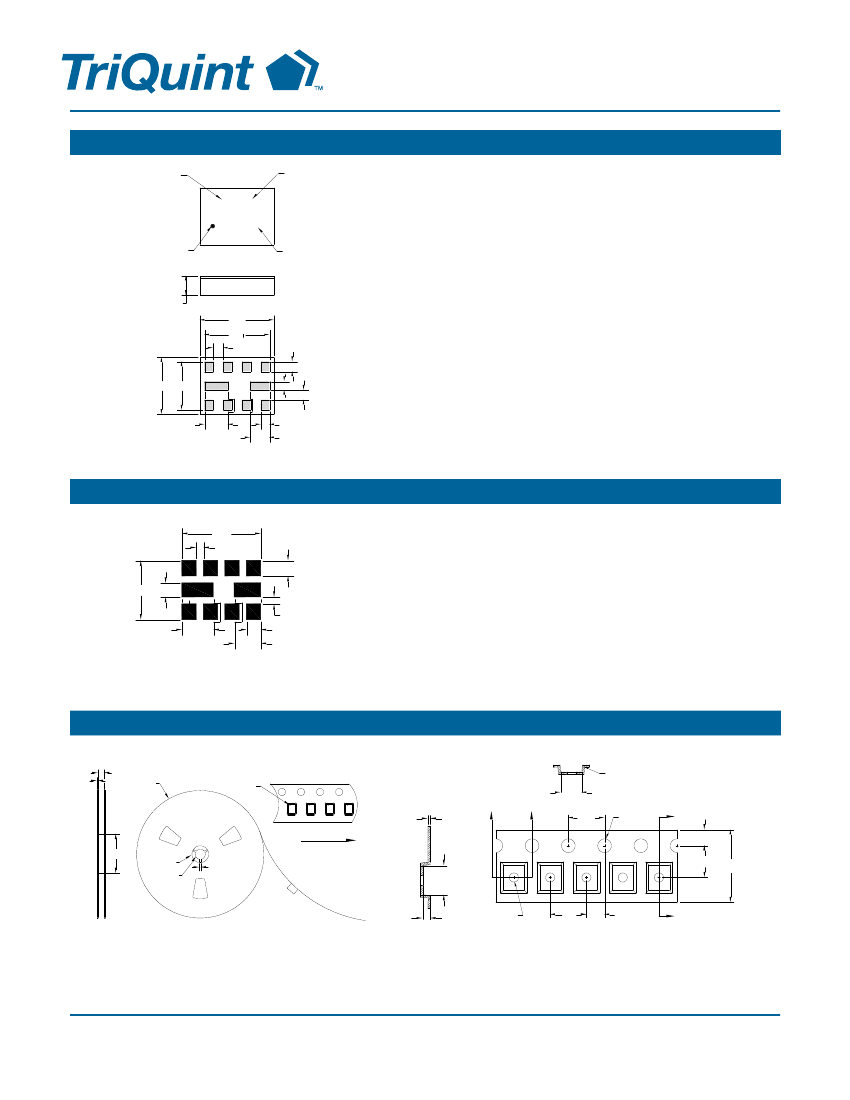

Package Information, Marking and Dimensions
Marking
code
MFG site
Package Style: CSP-1713
Dimensions: 1.70 x 1.30 x 0.46 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0 μm, over a 2-6 μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ± 0.15 mm except overall length and width
± 0.10 mm
Notes:
1. All dimensions shown are typical in millimeters
2. An asterisk (*) in front of the marking code indicates prototype.
19 M
WWY
ID dot
Date code
0.46 NOM.
0.50 MAX.
1.70
1.54
0.24
0.235
1.30 1.15
0.20
0.24
0.55
0.45
0.205
PCB Mounting Pattern
1.63
0.15
0.325
1.24 0.29
0.15
0.64
0.54
0.295
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint
evaluation board for this product. Some modification may be necessary
to suit end user assembly materials and processes.
Tape and Reel information
Standard T/R quantity = 10,000 units/reel
2.7
8.8
Ø330
SECTION A-A
5° MAX. TYP.
1.47
A
A
4.0
1.5
B
1.75
ID dot
SECTION B-B
0.250
Ø102
Ø20.2
Ø13.0
Direction of travel
2.0
1.88
3.50
8.0
0.63
0.60
4.0
2.0
B
Data Sheet: Rev A 06/02/14
© 2014 TriQuint
-
5 of 6
-
Disclaimer: Subject to change without notice
