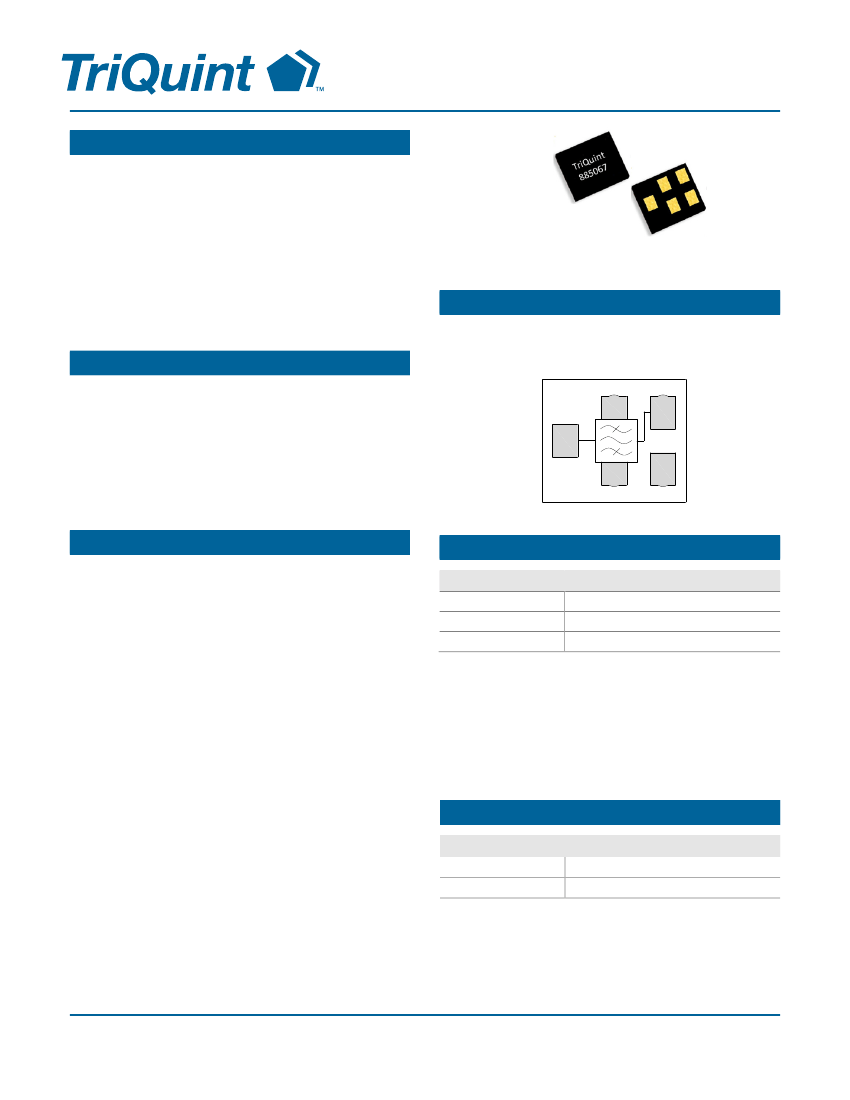

885067
2.4GHz WLAN/BT LTE Co-Existence Filter
Applications
•
WiFi bandpass filter that enables the
coexistence of 4G (WiMAX/LTE/TD-LTE) &
WiFi signals
Handsets
Portable Hotspots
Mobile Routers
Smart Meters
High-power WLAN Access Points
Applicable reject bands: 2.6 GHz WiMAX/LTE,
LTE Band 7
•
•
•
•
•
•
1.1x0.9x0.50mm
Functional Block Diagram
Top View
Gnd
5
Input
1
2
3
Gnd
Output
Product Features
•
•
•
•
•
•
Low Loss in WLAN band with extended upper
corner for inclusion of Bluetooth
High Rejection in B7/B41 bands
Industry leading small size: 1.1 x 0.9 x 0.5 mm
Performance over -30 to +85 ºC
Single Ended operation
RoHS compliant, Pb-free module package
4
Gnd
General Description
The 885067 is a high-performance, high power Bulk
Acoustic Wave (BAW) band-pass filter with extremely
steep skirts, simultaneously exhibiting low loss in the
WiFi band and high near-in rejection in the 2.6GHz
bands.
885067 is specifically designed to enable coexistence
of WiFi and LTE signals within the same device or in
close proximity to one another.
The 885067 uses common module packaging
techniques to achieve the industry standard 1.1 x 0.9 x
0.50 mm footprint. The filter exhibits excellent power
handling capabilities.
Pin Configuration
Pin No.
1
4
2,3,5
Label
Input
Output
Ground
Ordering Information
Part No.
885067
885067-EVB
Description
Packaged part
Evaluation board
Standard T/R size = 15,000 units/reel
Advanced Data Sheet: Rev C 11-24-14
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
