254IDCL-R-02-034 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 254IDCL-R-02-034

254IDCL-R-02-034: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

254IDCL-R-02-034 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle

254IDCL-R-02-034 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCH HIGHT 4.3MM
body width	0.331 inch
subject depth	0.669 inch
body length	2.46 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254IDCL
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

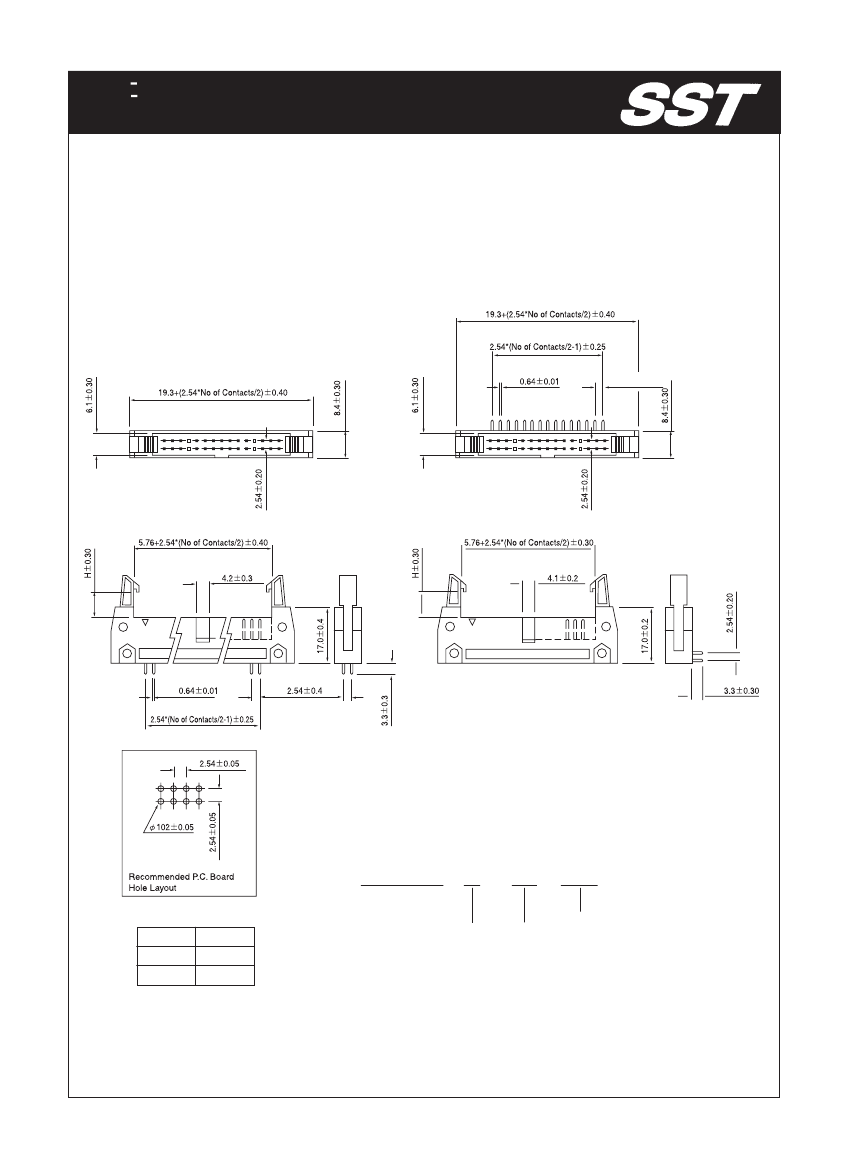

254 I DCL CONNECTOR SYSTEM

.100”x.100” (2.54x2.54mm) Header with latch

CURRENT RATING : 3A

WITHSTANDING VOLTAGE : 500VAC(1 MIN)

INSULATION RESISTANCE : 1000 MEGOHMS MIN.

CONTACT RESISTANCE : 30 MILLIOHMS MAX

OPERATION TEMPERATURE : -40ºC TO+85ºC

CONTACT: BRASS, 0.64MM SQUARE POST

INSULATOR. PBT & 30% G.F.

PLATING: GOLD

254

DCL - X - XX - XXX

Style

7.8

4.3

V180º

R 90º

Style

No. of pos

010 030

012 034

014 040

016 050

020 060

026 064
