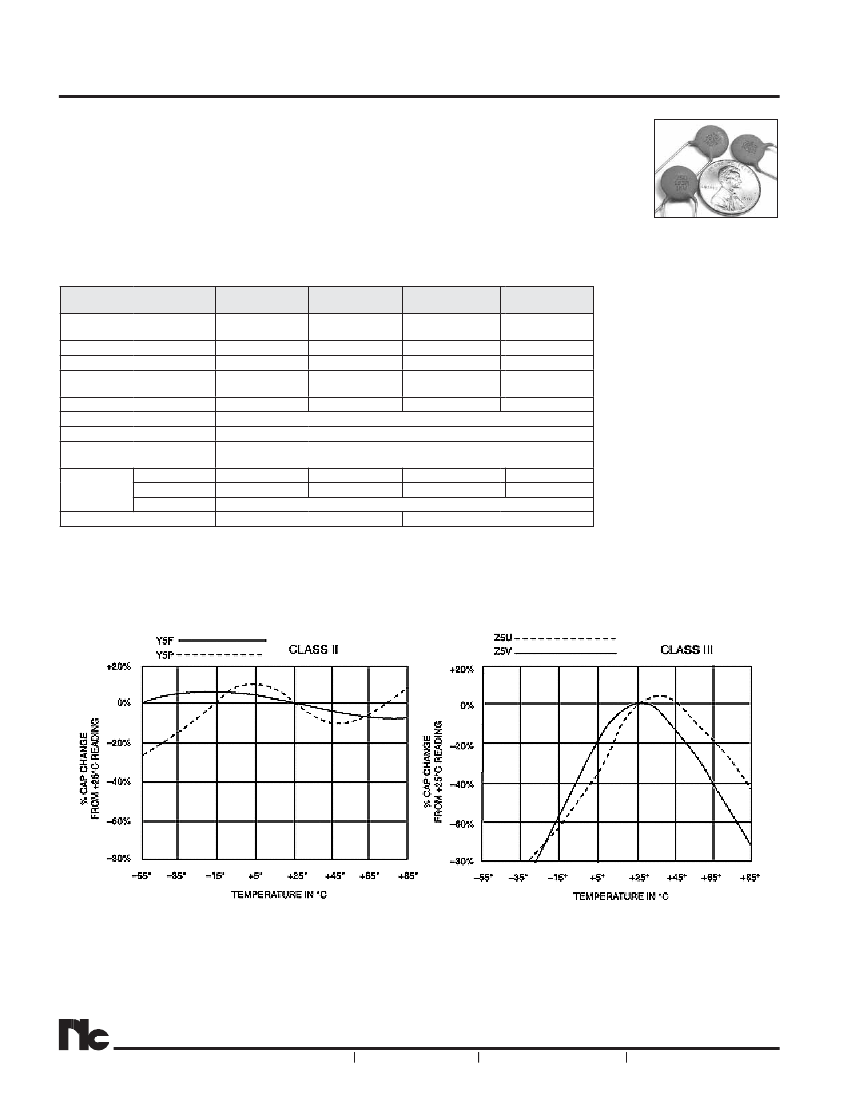

Ceramic Disc Capacitors
GENERAL PURPOSE, HI-K
(DIELECTRIC CONSTANT Class II/III) TYPE
NCD Series Class II/III
FEATURES
• WIDE SELECTION OF TEMPERATURE CHARACTERISTICS
• HIGH INSULATION RESISTANCE
*See Part Number System for Details
• EXCELLENT HIGH FREQUENCY CHARACTERISTICS
• ECONOMICALLY PRICED
• AVAILABLE WITH FORMED LEADS AND ON TAPE FOR AUTOMATIC
..INSERTION
SPECIFICATIONS
Temperature
Characteristics
Operating
Temperature Range
Capacitance Range
Standard Tolerance
Capacitance Change Over
Temperature Range
Dissipation Factor
Insulation Resistance
Working Voltage Range
Dielectric Withstanding
Voltage (Test Voltage)
Cap. Change
Load Life
Test @ 85°C
D.F. (max.)
1,000 Hours
I.R. (min.)
Test Conditions
Y5F
-30°C ~ +85°C
100pF ~ 0.01μF
±10% (K)
±7.5%
2.5%*
Y5P
-30°C ~ +85°C
Z5U
+10°C ~ +85°C
Z5V
+10°C ~ +85°C
100pF ~ 0.022μF 0.001μF ~ 0.01μF 0.001μF ~ 0.1μF
±10% (K)
±20% (M)
+80%/-20% (Z)
±10%
-55% ~ +22
-82% ~ +22%
5%
2.5%*
5%
Minimum 10,000 Megohms
50Vdc ~ 1KVdc
2.5 Times Rated Voltage For Not Less Than 1 Second, 50mA Maximum
±10%
4%
±10%
±20%
±30%
4%
7.5%
7.5%
1,000 Megohms
1KHz, 1.0V ±02Vrms
1KHz, 0.5V ± 0.1Vrms
* Special low dissipation factor (1.0% max.) Y5F and Y5P dielectrics are also available.
Contact NIC for availability.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
39
Ceramic Disc Capacitors
NCD 103 M 50
Z5U
J .1LS TR
F
NCD Series Class II/III
Lead Spacing (mm) - S
RoHS compliant
Body
Standard Standard
Optional Bulk
Optional T&R
Optional Packaging
Diameter
Bulk
T&R
mm (inches)
mm (inches)
TR = Taped and Reel
5 ~ 11
6.35 ± 0.8 5.0 ± 0.8
5.0 ± 0.8 (0.2LS)
2.5 ± 0.8 (0.1LS)
TB = Tape and Box (Ammo)
7.5 ± 0.8 (0.295LS)
7.5 ± 0.8 (0.295LS)
6.35 ± 0.8 5.0 ± 0.8
>12
10.0 ± 0.8 (0.395LS) 10.0 ± 0.8 (0.395LS)
Optional Lead Space (LS) and/or
Lead Length (LL) in inches
Optional Lead Style
C = Cut Lead
D = Inside Kink (Short Leads)
E = Outward Kink (Short Leads)
J = Inside Kink (Long Leads)
K = Outward Kink (Long Leads)
LEAD DIAMETER
BODY THICKNESS
Temperature Coefficient
0.6MM IS STANDARD 2 ~ 4MM DEPENDENT ON CV
Working Voltage DC
Tolerance Code
C = ± 0.25pF K = ± 10%
D = ± 0.5pF
M = ± 20%
J = ± 5%
Z = + 80% / - 20%
Capacitance code, expressed in pfd,
First two digits are significant, third digit is no. of
zeros. “R” indicates decimal for under 10pfd.
Series
Standard
500Vdc & Up
Low Voltage
100Vdc & Below
3 max.
23 min.
2 max.
23 min.
STANDARD PRODUCTS AND MAXIMUM DIAMETER (mm)
BY T.C. AND VOLTAGE
Y5F/Y5P*
Cap.
(pF/μF)
100~470pF
560
680
750
820
0.001μF
0.0015
0.0022
0.0027
0.0033
0.0047
0.0056
0.0068
0.0082
0.01
0.015
0.022
0.033
0.047
0.068
0.1
50
100
6
6
6
6
6
6
6
6
7
7
8
9
9
10
12
14
-
-
-
-
-
500
6
6
6
6
6
7
8
9
10
10
12
14
14
16
16
21
-
-
-
-
-
Z5U
Working Voltage (Vdc)
50
50
1K
500 1K
100
100
6
-
-
-
-
6
-
-
-
-
7
-
-
-
-
7
-
-
-
-
7
-
-
-
-
7
6
6
6
-
8
6
6
7
-
10
6
7
7
6
12
6
7
8
6
14
6
7
9
6
14
6
8
10
6
16
6
9
10
6
16
7
9
12
6
18
7
10
12
6
20
7
10
12
6
-
9
14
16
7
-
10
16
18
8
-
8
18
22
7
-
8
21
24
7
-
8/9
24
-
8
-
8/9
26
-
8/9
Z5V
500
-
-
-
-
-
6
6
6
6
7
8
8
8
9
9
10
14
16
16
16
17
1K
-
-
-
-
-
6
6
6
7
8
8
9
10
10
10
12
16
18
21
-
-
S
S
J Style
K Style
5 max.
1.5+0.2
23 min.
1.5+0.2
5 max.
23 min.
S
S
(BULK AND TAPED STYLES)
D Style
E Style
5 max.
1.5+0.2
S
4.7 + 1
1.5+0.2
S
5 max.
4.7 + 1
*.0047μF AND ABOVE NOT AVAILABLE IN Y5F, PLEASE USE Y5P.
NIC RESERVES THE RIGHT TO REQUEST MINIMUM QUANTITIES ON
CERTAIN VALUES.
(BULK ONLY)
®
40
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Ceramic Disc Capacitors

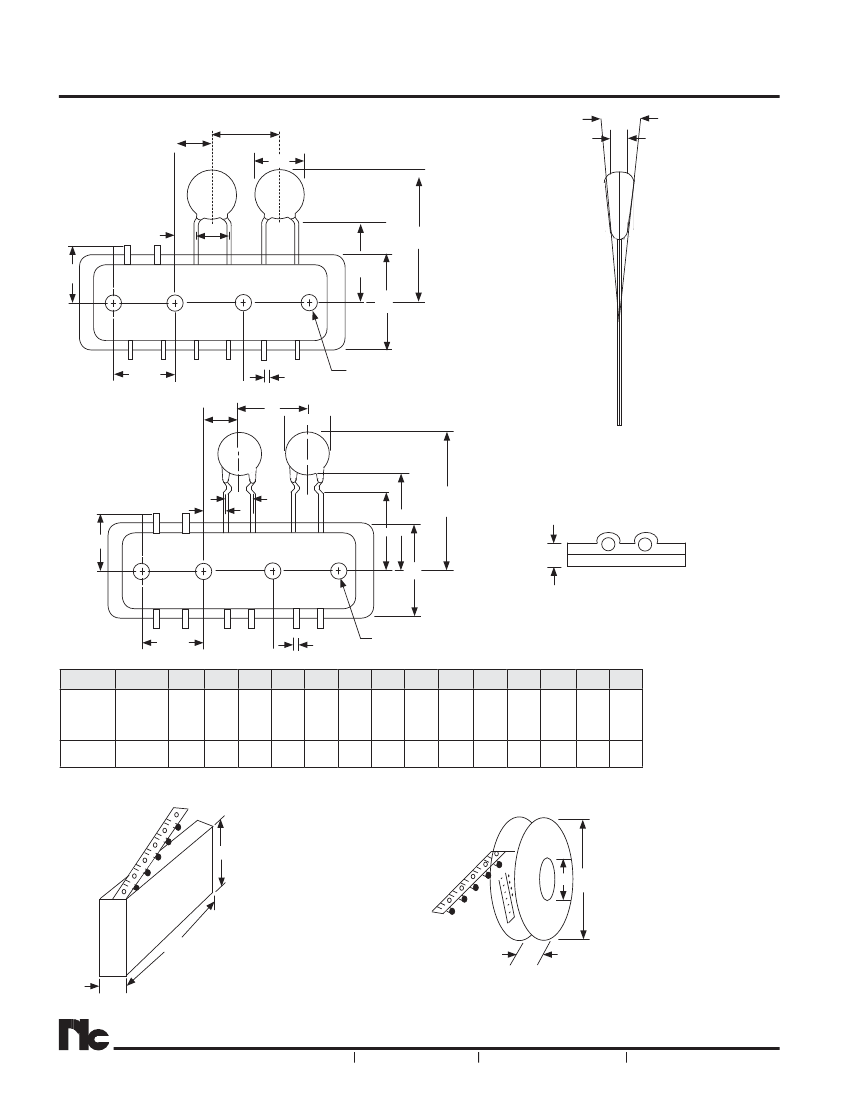

DIMENSIONS (mm)
P
2
P
Taping Specifications
Δh
T
D
P
1
S
H
H
1
L
W
P
0
d
D
Diameters up to
22mm max. are
available on tape.
P
2
P
D
T = 2 ~ 7mm DEPENDENT
ON T.C. AND CV
S
P
1
H
0
L
t
W
H
H
1
P
0
d
Dφ
Symbol
Value
D max.
12.0
22.0
---
d
0.6
P*
12.7
25.4
P
0
12.7
P
1
5.1
3.85
3.18
2.6
±0.7
P
2
6.35
Tolerance
+0.06
±1.0
-0.05
±0.2
±1.0
S
2.5
5.0
6.35
7.5
±0.8
-0.2
H
20.0
+1.5
-1.0
H
0
16.0
H
1
Max.
32.25
---
Dφ
4.0
W
18.0
L
Max.
11.00
---
t
0.7
Δh
0
±0.5
±0.2
±0.5
±0.2
±2.0
* -Dimension “P” is 12.7mm, for diameters up to 12mm, and 25.4mm for diameters 13-22mm.
AMMO PACK
H
H
≤
372 (14.64")
L
≤
377 (14.84")
W
≤
55 (2.16")
REEL
B
D
L
W
D
<
354 (13.93")
=
>
21 (.83") but
B=
<
30 (1.18")
=
W
<
55 (2.16")
=
W
Acceptable to
standard radial type cartridge.
Acceptable to standard radial type cartridge with a few
extra accessories.
®
