YB1300S

Switched Capacitor Boost Converter 5V/4.5V

Description

The YB1300S is a switched capacitor

DC/DC boost converter that produces a

regulated 5V output. The input voltage

range is from 2.7V to 5.0V that makes the

YB1300S ideally for a single cell Li-Ion

battery source.

The YB1300S works well for step-up

applications without the need for an

inductor. The 1MHz switching frequency

allows the use of small SMD capacitors.

The YB1300S provides thermal protection,

short-circuit current limit protection. In

order to prevent in-rush current effectively,

it provides automatic soft-start. The

shutdown current is less than 0.1μA. The

YB1300S is available in a 6-pin SOT23

package.

Features

Switched-Capacitor Step-Up Operation

Input Range : 2.7V to 5.0V

Shutdown Mode

5V/4.5V Fix Output Voltage

1MHz Internal Oscillator

Thermal Protection Shutdown

Output Short-circuit Current Limit

Protection

Automatic Soft-Start Reduces In-Rush

Current

SOT23-6 Package

Applications

Cellular Phones

White LED Drivers

Smart Card Reader

PCMCIA Cards

Li-Ion Battery Backup Supplies

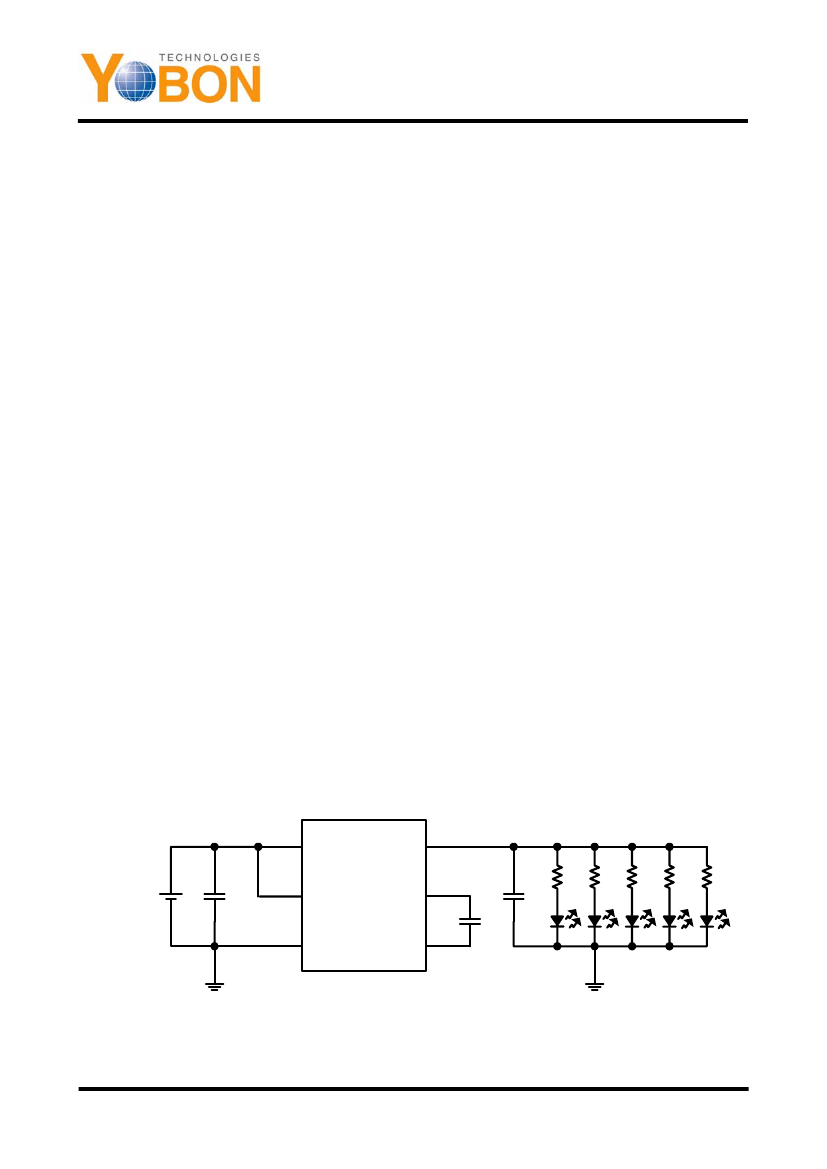

Typical Application Circuit

1-Cell

Li-Ion-Battery

2.2uF

VIN

YB1300S

VOUT

CP 6

PUMP

0.22uF

OUT

2.2uF

GND

Figure 1: Typical Application Circuit

YB1300S Rev.1.2

www.yobon.com.tw
