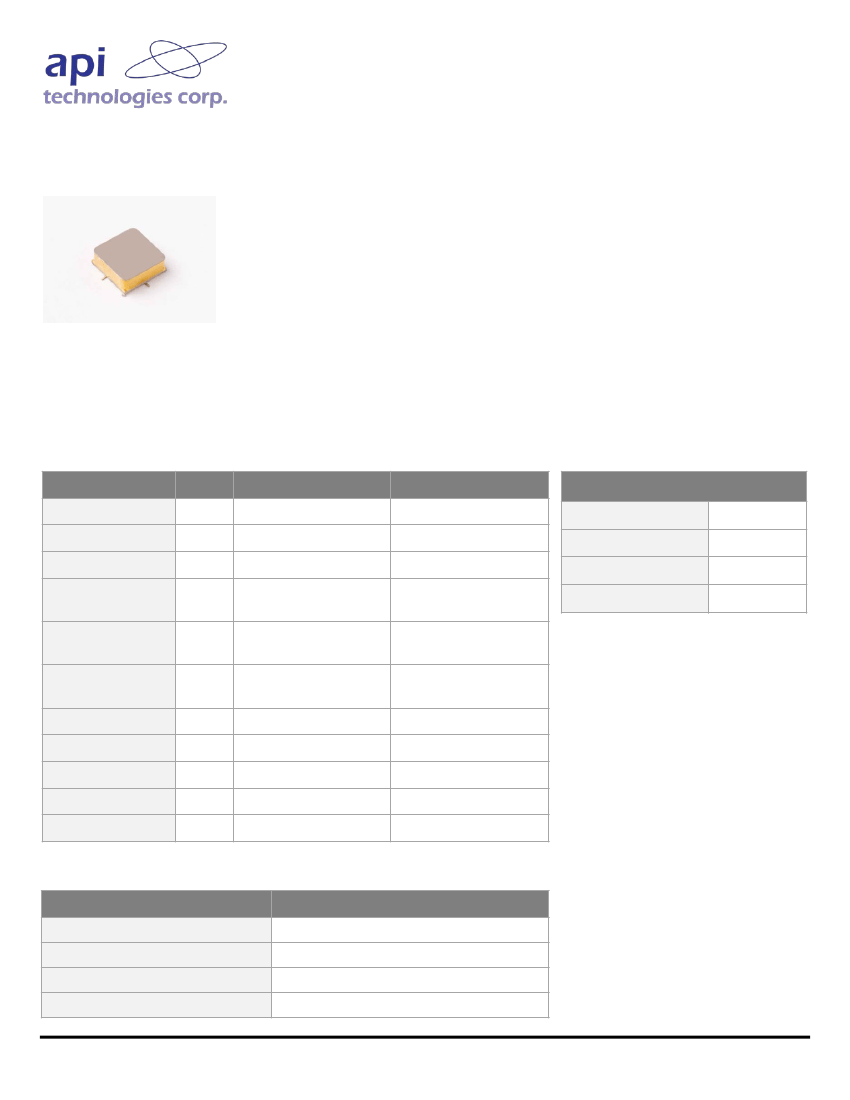

Model # TN9560
Standard Microwave Amplifier
Frequency Range: 500 MHz to 6000 MHz
Features
•
Broadband Operation: 500 MHz to 6000 MHz
•
High Output Power: +20 dBm Typical
•
Low Noise Figure: +3.5 dB Typical
Model TN9560 is a broadband amplifier covering 500 MHz to 6000 MHz. This higher power design utilizes a hermetically
sealed package for superior environmental protection. This standard design may also be ordered in a MIL-STD-883
screened version (Model #SN9560) All specification ratings are based on measurements in a 50
Ω
(ohm) system with a DC
supply of 15 volts and a voltage tolerance of +/- 2%.
Technical Specifications
Parameter
Frequency Range
Gain
Noise Figure
Output Power @
1 dB Compression
Output 3
rd
Order
Intercept
Output 2
nd
Order
Intercept
Reverse Isolation
Input VSWR
Output VSWR
Supply Voltage
Supply Current
Unit
MHz
dB
dB
dBm
dBm
dBm
dB
---
---
volts
mA
Typical
500 - 6000 MHz
20
3.5
20
28
35
30
1.5:1
1.5:1
+15
140
Min/Max
500 - 6000 MHz
17
4.0
18
-
-
-
2.0:1
2.0:1
+15
155
Absolute Maximum Ratings
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature
DC Voltage @ 25°C
Input Drive @ 25°C (CW)
-62°C to +125°C
-55°C to +85°C
+17 volts
+20 dBm
Typical values are measured at 25°C,
but not guaranteed.
Mechanical & Electrical
Parameter
Specification Temperatures (Min/Max)
Package Size
Package Drawing
RF Connectors
Rev Date:
6/12/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Specification
-55°C to +85°C
0.450” Square Surfacemount
SM3 Package
None
Page #
1
MicrowaveSales@apitech.com
Model # TN9560
Typical Performance Graphs
Gain (dB)
25
24
23
22
21
20
19
18
17
16
15
500
1600
2700
3800
4900
6000
Frequency (MHz)
Noise Figure (dB)
10
9
8
7
6
5
4
3
2
1
0
500
1600
2700
3800
4900
6000
Frequency (MHz)
Gain (dB)
1 dB Compression (dBm)
25
24
23
22
21
20
19
18
17
16
15
500
1600
2700
3800
4900
6000
Frequency (MHz)
Noise (dB)
Rev. Isolation (dB)
Reverse Isolation (dB)
35
34
33
32
31
30
29
28
27
26
25
500
1600
2700
3800
4900
6000
Frequency (MHz)
1 dB Comp. (dBm)
3
rd
Order Intercept (dBm)
30
29
28
27
26
25
24
23
22
21
20
500
1600
2700
3800
4900
6000
Frequency (MHz)
Rev Date:
6/12/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
2
nd
Order Intercept (dBm)
40
39
38
37
36
35
34
33
32
31
30
500
1600
2700
3800
4900
6000
Frequency (MHz)
Page #
2
micro.apitech.com
|
+1.888.553.7531
|
MicrowaveSales@apitech.com
IP3 (dBm)
IP2 (dBm)
Typical Performance Graphs
Input VSWR
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1
500
1600
2700
3800
4900
6000
Frequency (MHz)
Model # TN9560
Output VSWR
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1
500
1600
2700
3800
4900
6000
Output VSWR
Input VSWR
Frequency (MHz)
Instructions
Grounding Instructions
Revisions
Min./Max. Values
Care should be taken to effectively ground each unit.
API reserves the right to make revisions to both product and/or the information contained within their
datasheets without advanced notice.
Specifications are guaranteed when tested in a 50
Ω
(ohm) system.
Typical performance graphs and values are measured at 25°C, but not guaranteed.

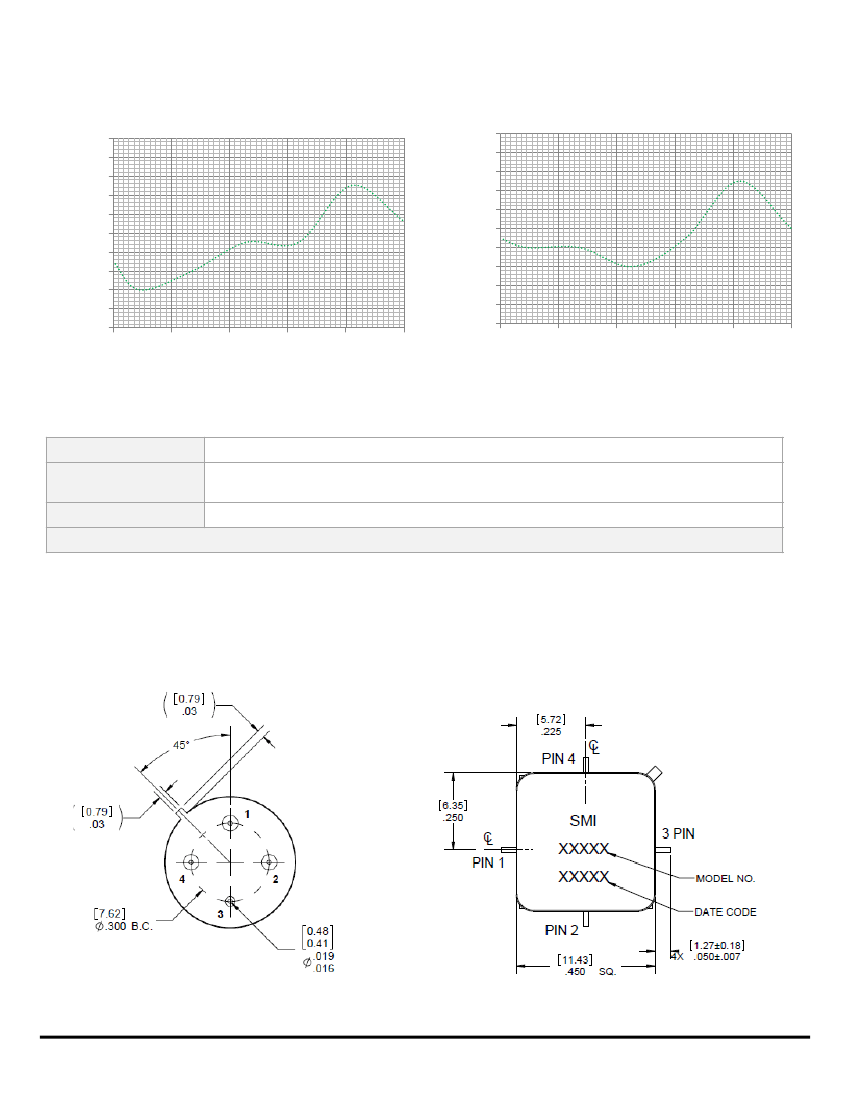

Outline Drawing
(For reference only)
Rev Date:
6/12/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Page #
3
MicrowaveSales@apitech.com
