SMD
B
19-213-R6C-A0R2S2B0E-3T-AM

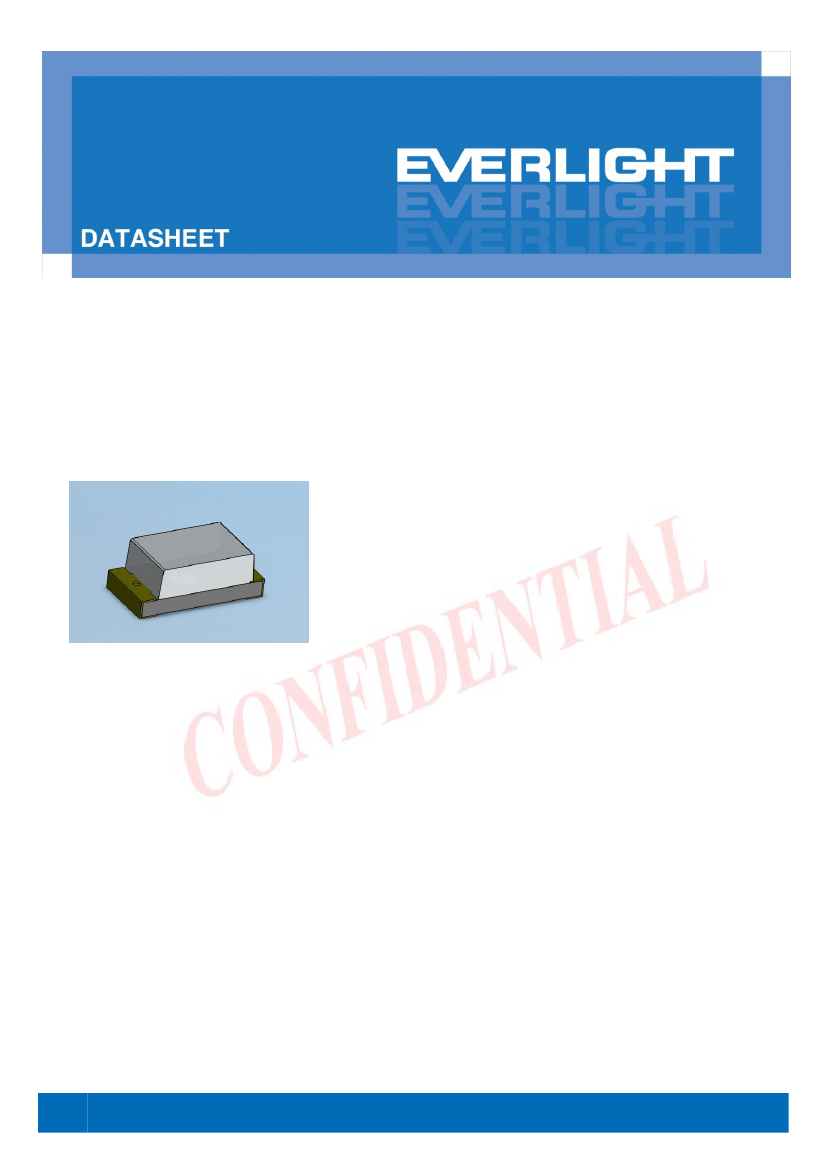

Features
•RoHS compliant
•Chip LED package.
•Colorless clear resin.
•Wide viewing angle 120°
•Brightness:140 to 280 mcd at 20mA.
•Qualification according to AEC-Q101.
•Precondition: Bases on JEDEC J-STD 020 Level 3.
•Automotive reflow profile (IR reflow or wave soldering)
•Compliance with EU REACH
•Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications
1
Revision
Copyright ©
: (2)
Release Date:
2010, Everlight All Rights Reserved. Release Date :September.9.2014 Issue No:DSE-0005948 Rev.2
www.everlight.com
LifecyclePhase:
LifecyclePhase:Preliminary
Expired Period: Forever
DATASHEET
SMD
B
19-213-R6C-A0R2S2B0E-3T-AM
•Automotive backlighting or indicator: Dashboard, switch, audio and video equipments… etc.
•Backlight: LCD, switches, symbol, mobile phone and illuminated advertising.
•Display for indoor and outdoor application.
•Ideal for coupling into light guides.
•Substitution of traditional light.
•Optical indicator.
•General applications.
Device Selection Guide
Chip
Emitted Color
Materials
AlGaInP
Resin Color
Brilliant Red
Water Clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Thermal Resistance
ESD
(Classification acc. AEC Q101)
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
T
j
T
opr
Tstg
Rth
J-A
Rth
J-S
ESD
HBM
ESD
MM
T
sol
Rating
12
30
60
60
125
-40 ~ +100
-40 ~ +110
800
450
2000
200
Unit
V
mA
mA
mW
℃
℃
℃
K/W
K/W
V
V
Reflow Soldering : 260
℃
for 30 sec.
Hand Soldering : 350
℃
for 3 sec.
2
Revision
Copyright ©
: (2)
Release Date:
2010, Everlight All Rights Reserved. Release Date :September.9.2014 Issue No:DSE-0005948 Rev.2
www.everlight.com
LifecyclePhase:
LifecyclePhase:Preliminary
Expired Period: Forever
DATASHEET
SMD
B
19-213-R6C-A0R2S2B0E-3T-AM
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Temperature coefficient of
λp
Temperature coefficient of
λd
Temperature coefficient of V
F
Symbol
Iv
2θ
1/2
λp
λd
Δλ
V
F
I
R
TC
λp
TC
λd
TC
V
Min.
140
-----
-----
617.5
-----
1.75
-----
-----
-----
-----
Typ.
-----
120
632
----
20
----
-----
0.13
0.08
-4.3
Max.
280
-----
-----
633.5
-----
2.35
10
-----
-----
-----
Unit
mcd
deg
nm
nm
nm
V
μA
nm/K
nm/K
mV/K
I
F
=20mA
V
R
=12V
I
F
=20mA
Condition
Note:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Bin Range of Luminous Intensity
Bin Code
R2
S1
S2
Note:
Tolerance of Luminous Intensity: ±11%
Min.
140
180
224
Max.
180
224
280
Unit
Condition
mcd
I
F
=20mA
Bin Range of Dominant Wavelength
Bin Code
E4
E5
Min.
617.5
621.5
Max.
621.5
625.5
Unit
nm
Condition
I
F
=20mA
3
Revision
Copyright ©
: (2)
Release Date:
2010, Everlight All Rights Reserved. Release Date :September.9.2014 Issue No:DSE-0005948 Rev.2
www.everlight.com
LifecyclePhase:
LifecyclePhase:Preliminary
Expired Period: Forever
DATASHEET
SMD
B
19-213-R6C-A0R2S2B0E-3T-AM
E6
E7
625.5
629.5
629.5
633.5
Note:
Tolerance of Dominant Wavelength: ±1nm
4
Revision
Copyright ©
: (2)
Release Date:
2010, Everlight All Rights Reserved. Release Date :September.9.2014 Issue No:DSE-0005948 Rev.2
www.everlight.com
LifecyclePhase:
LifecyclePhase:Preliminary
Expired Period: Forever
DATASHEET
SMD
B
19-213-R6C-A0R2S2B0E-3T-AM

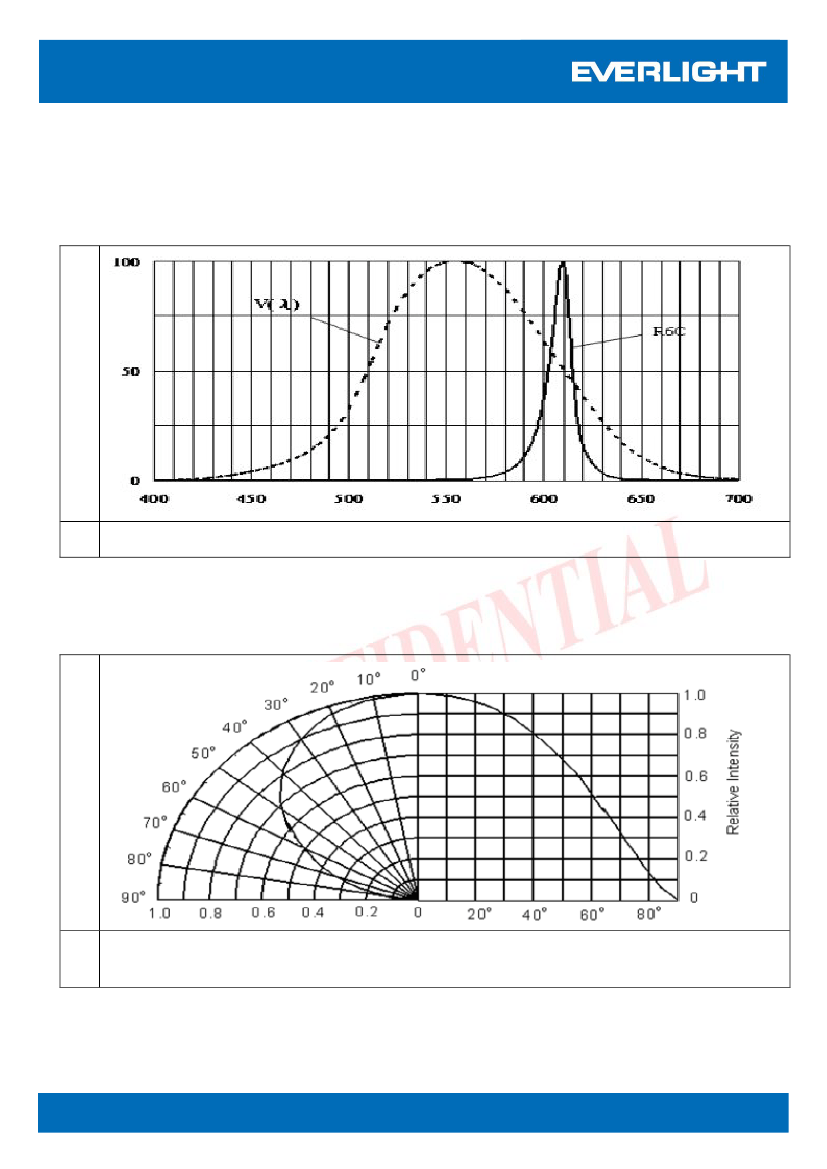

Typical Electro-Optical Characteristics Curves
Typical Curve of Spectral Distribution
Relative Intensity (%)
λp
(nm)
Note: V(λ)=Standard eye response curve; I
F
=20mA
Diagram Characteristics of Radiation
Relative Intensity (%)
Relative Intensity
5
Revision
Copyright ©
: (2)
Release Date:
2010, Everlight All Rights Reserved. Release Date :September.9.2014 Issue No:DSE-0005948 Rev.2
www.everlight.com
LifecyclePhase:
LifecyclePhase:Preliminary
Expired Period: Forever
