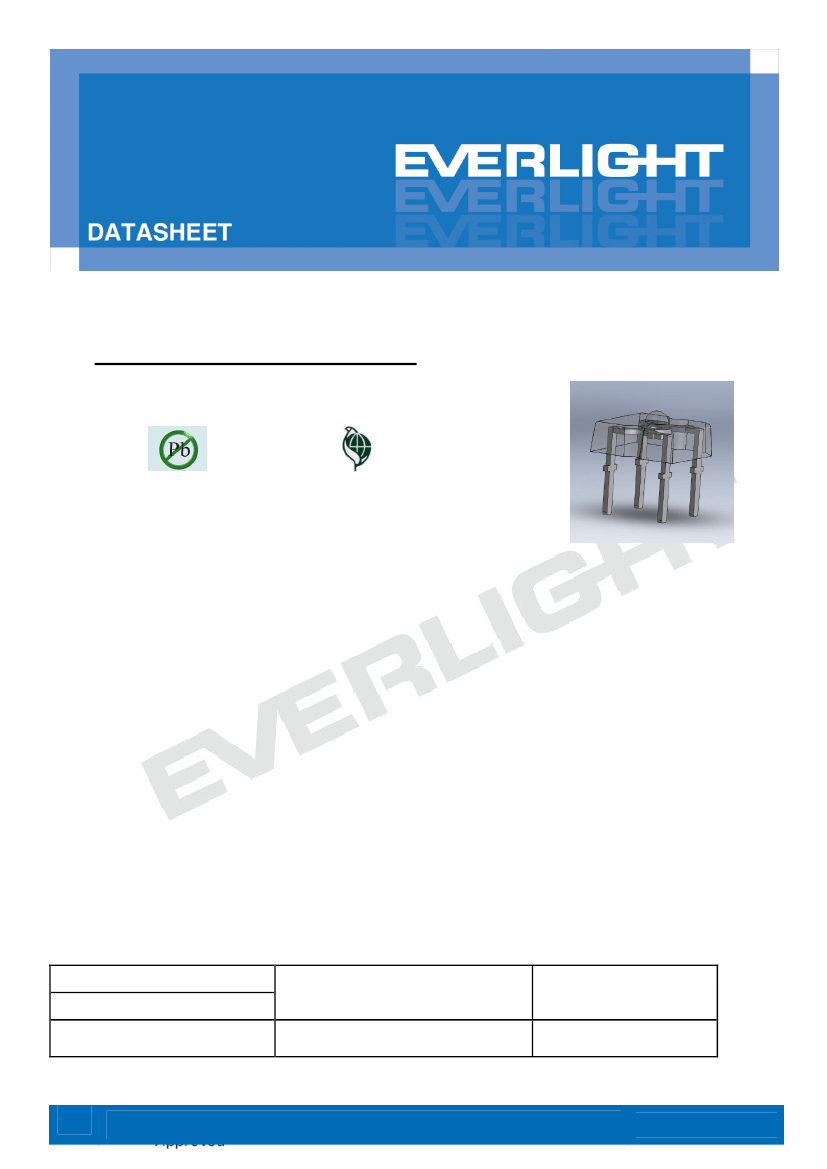

3mm Advanced Super Flux LEDs
38-01-A84-S3NC-C1S2T2CH-AM
Lead (Pb) Free Poduct - RoHS Compliant
Feature
‧
‧
‧
‧
‧
‧
‧
Low profile.
Uniform color
High flux output
Colorless clear resin.
Brightness: 5650 to 11250 mlm at 70mA.
Qualification according to AEC-Q101.
Packaged in tubes for use with automatic insertion equipment.
Applications
‧
Automotive exterior lighting: Turn light, tail light, rear-view mirror light, side light, license light switch,
3
rd
braking light… etc.
‧
Substitution of traditional light.
‧
Electronic Signs and Signals.
‧
General applications.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Reddish Orange
Resin Color
Water Clear
Revision
:2
1
Copyright
LifecyclePhase:
©
Release Date:2013-05-29 16:06:48.0
2010, Everlight All Rights Reserved. Release Date : May.25, 2013 IssueNo。DPE-0000198 Rev.2
www.everlight.com
Expired Period: Forever
DATASHEET
P-LED
38-01-A84-S3NC-C1S2T2CH-AM
Table of Content
Product Nomenclature
Absolute Maximum Ratings (Ta=25℃)
Electro-Optical Characteristics (Ta=25℃)
Bin Range of Dominant Wavelength (Ta=25℃)
Bin Range of Forward Voltage (Ta=25℃)
Bin Range of Total Flux (Ta=25℃)
Typical Electro-Optical Characteristics Curves
Package Dimensions
Label Explanation
Antistatic Packing Materials Tube and Standard Boxes
Precautions
Revision History
Page
3
4
5
6
7
8
9
11
12
12
13
16
Revision
:2
2
Copyright ©
LifecyclePhase:
Release Date:2013-05-29 16:06:48.0
2010, Everlight All Rights Reserved. Release Date : May.25, 2013 IssueNo。DPE-0000198 Rev.2
Expired Period: Forever
www.everlight.com
DATASHEET
P-LED
38-01-A84-S3NC-C1S2T2CH-AM
Product Nomenclature
38
1
-
01
2
-
A8
3
4
4
-
S3N
5
C
6
-
C1
7
S2T2
8
C
9
H
10
AM
11
The product name is designated as below:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Product type
Lead-frame type
Angle
Product pasted without Zener
Chip code
Resin color
Wavelength
Power &Luminous Intensity
Range of Forward Voltage specification
10.
Operation current
11
Application
Revision
:2
3
Copyright ©
LifecyclePhase:
Release Date:2013-05-29 16:06:48.0
2010, Everlight All Rights Reserved. Release Date : May.25, 2013 IssueNo。DPE-0000198 Rev.2
Expired Period: Forever
www.everlight.com
DATASHEET
P-LED
38-01-A84-S3NC-C1S2T2CH-AM
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Continuous Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
LED Junction Temperature
Operating Temperature
Storage Temperature
Thermal Resistance
Electrostatic Discharge
Soldering Temperature(T=5
sec)
Symbol
V
R
I
F
I
FP
Pd
T
j
T
opr
Rating
12
70
150
200
125
-40 ~ +100
-40 ~ +110
150
2000
200
Unit
V
mA
mA
mW
℃
℃
℃
K/W
V
℃
T
stg
Rth J-A
ESD
HBM
ESD
MM
T
sol
260 ± 5
Revision
:2
4
Copyright ©
LifecyclePhase:
Release Date:2013-05-29 16:06:48.0
2010, Everlight All Rights Reserved. Release Date : May.25, 2013 IssueNo。DPE-0000198 Rev.2
Expired Period: Forever
www.everlight.com
DATASHEET
P-LED
38-01-A84-S3NC-C1S2T2CH-AM
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Total Flux
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Φv
λ
p
λ
d
Δλ
2θ
1/2
V
F
I
R
Min.
5650
-----
610
-----
-----
1.9
-----
Typ.
---
624
---
18
40
-----
-----
Max.
11250
-----
620
-----
-----
2.9
10
Unit
mlm
nm
nm
nm
deg
V
μA
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
V
R
=5V
Note:
1. Tolerance of Total Flux: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Revision
:2
5
Copyright ©
LifecyclePhase:
Release Date:2013-05-29 16:06:48.0
2010, Everlight All Rights Reserved. Release Date : May.25, 2013 IssueNo。DPE-0000198 Rev.2
Expired Period: Forever
www.everlight.com
