Part Number:
Status:
Description:
38969-0014
Active
12.70mm Pitch, Single Row Tri-Barrier Terminal Strip, without Mounting Ends, 14
Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
UPC
Terminal Blocks
38969
N/A
One Piece
TSE
Barrier Strip
822350945172
Series

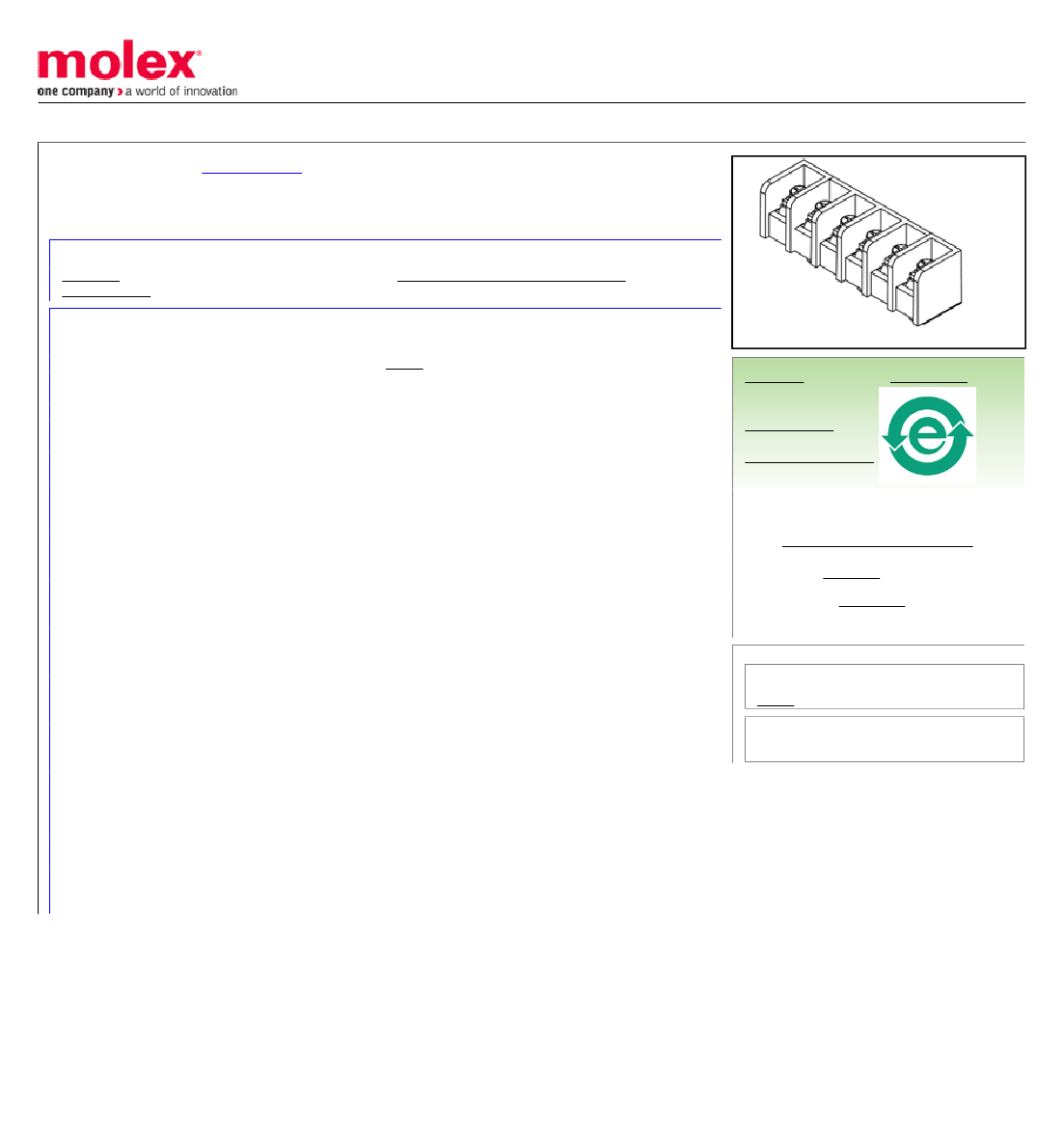

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
14
14
90° Angle
None
1
Vertical
4.00mm
None
1.57mm
No
12.70mm
12.70mm
Yes
Tri-Barrier
No
No
-40°C to +120°C
10, 12, 14, 16, 18, 20, 8
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
38969Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
50A
600V
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-38969-001
