35312-1062 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35312-1062

35312-1062: Description10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35312-1062 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

35312-1062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
body width	0.256 inch
subject depth	0.276 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.137 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

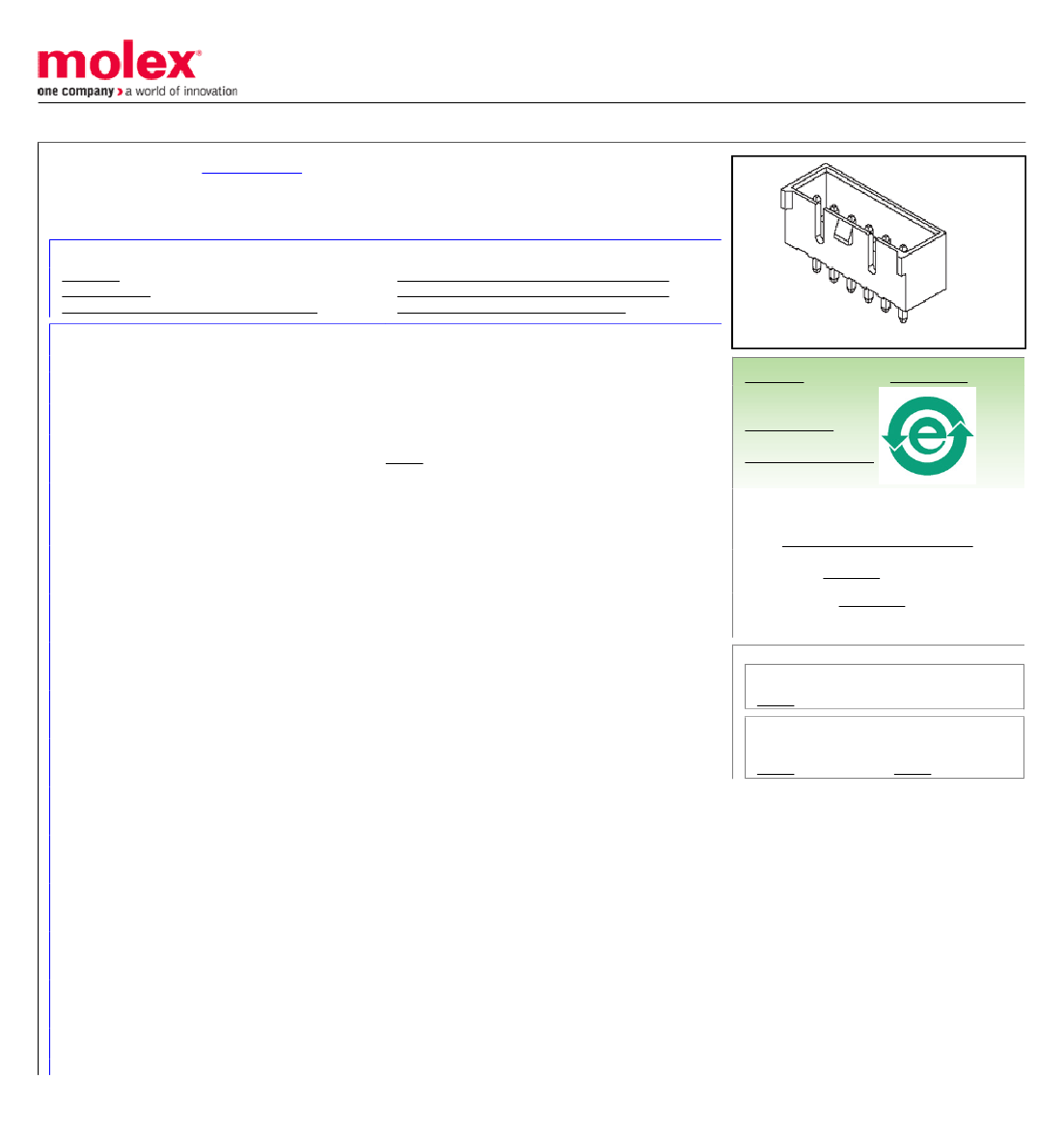

This document was generated on 07/08/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

35312-1062

Active

2.50mm Pitch Header, Vertical, Shrouded, with Positive Lock, 10 Circuits, PA

Polyamide (Nylon) 6/6, Glass-filled Red

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35155-002 (PDF)

Packaging Specification PK-35312-013 (PDF)

Packaging Specification PK-35312-014 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E9450420E01

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Product Name

UPC

PCB Headers

35312

Signal, Wire-to-Board

N/A

822350649360

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Tin

Nylon

0.848/g

Vertical

3.40mm

None

1.60mm

Bag

2.50mm

Partial

-40°C to +105°C

Through Hole

Search Parts in this Series

35312Series

Mates With

Wire-to-Wire and Wire-to-Board Housing

35572 Crimp Housing, 35155
